5. Click Start.

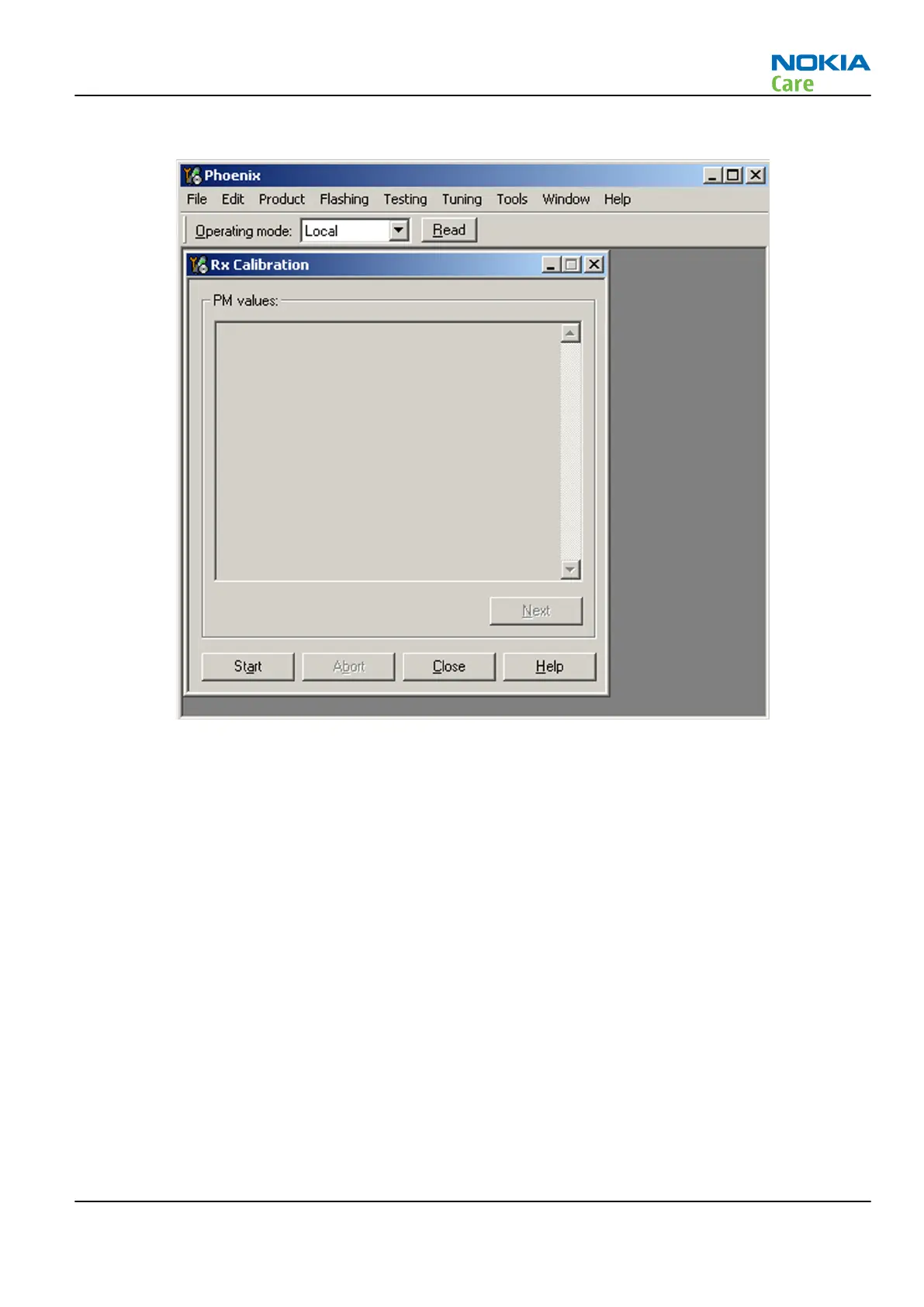

6. Connect the signal generator to the phone, and set frequency and amplitude as instructed in the
Rx Calibration with band EGSM900 (step 1-3) pop-up window.
Important: The calibration uses a non-modulated CW signal. Increase the signal generator level by
cable attenuation and module jig probe attenuation.
RM-179; RM-223
RF troubleshooting
Issue 1 COMPANY CONFIDENTIAL Page 4 –33
Copyright © 2007 Nokia. All rights reserved.
