4. Select GSM900 band.

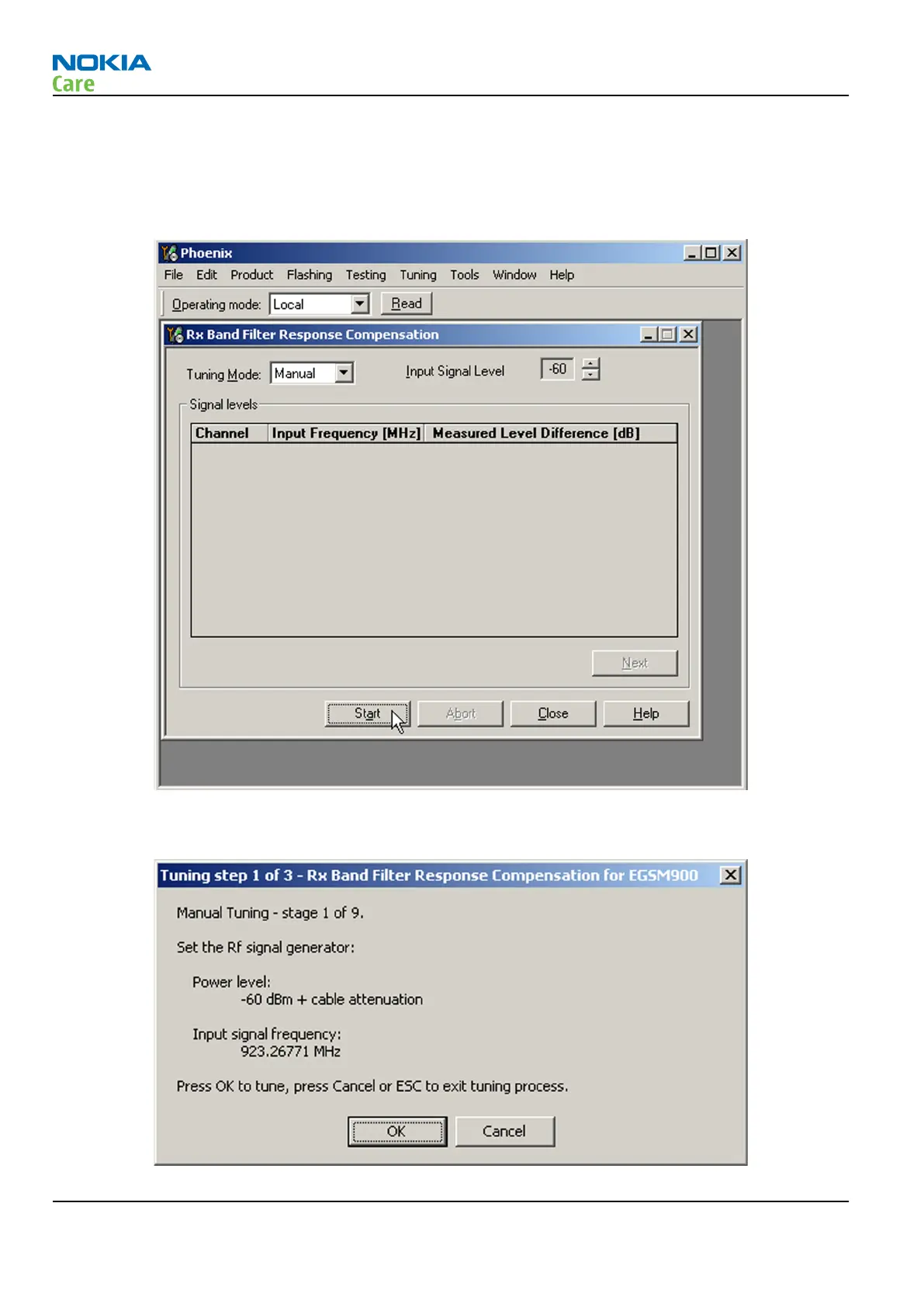

5. Choose Tuning→GSM→Rx Band Filter Response Compensation .
6. Select Tuning mode: manual
7. Click Start.
8. Connect the signal generator to the phone, and set frequency and amplitude as instructed in the
Rx Band
Filter Response Compensation for EGSM900
pop-up window, step 1-3.
RM-179; RM-223
RF troubleshooting
Page 4 –36 COMPANY CONFIDENTIAL Issue 1
Copyright © 2007 Nokia. All rights reserved.
