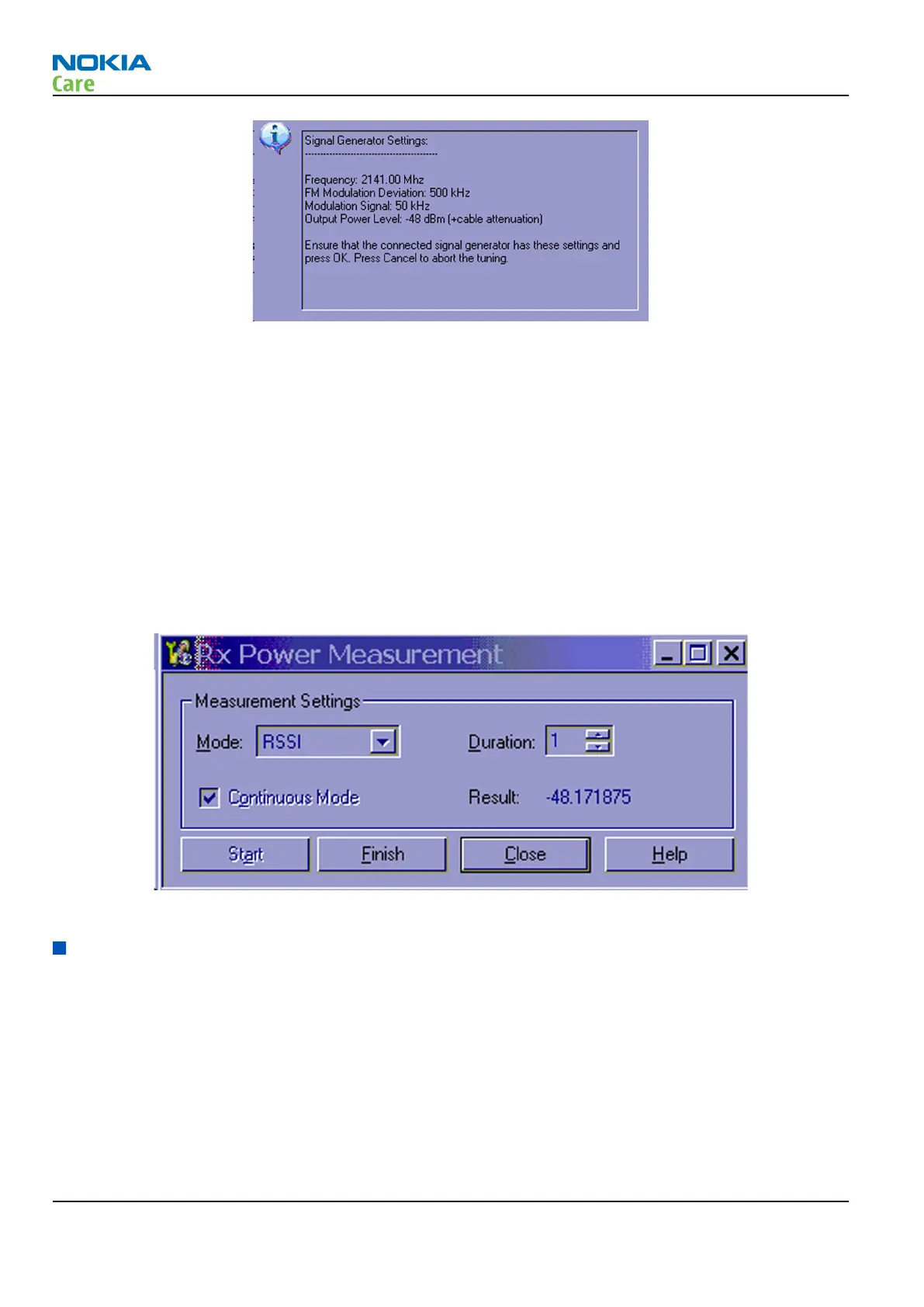

Figure 21 WCDMA RX generator settings
WCDMA RSSI measurement
Prerequisites
WCDMA RX must be activated before RSSI can be measured. For instructions, please refer to WCDMA RX chain
activation (page ).
Steps
1. From the Phoenix testing menu, select WCDMA→RX Power measurement
2. In the RX Power measurement window, select:
• Mode: RSSI
• Continuous mode
3. Click Start to perform the measurement.
Transmitter troubleshooting
General instructions for transmitter (TX) troubleshooting
Please note the following before performing transmitter tests:
• TX troubleshooting requires TX operation.
• Do not transmit on frequencies that are in use!
• The transmitter can be controlled in local mode for diagnostic purposes.
• The most useful Phoenix tool for GSM transmitter testing is “RF Controls”; in WCDMA transmitter testing
the best tool is “TX Control”.
• Remember that re-tuning is not a fix! Phones are tuned correctly in production
RM-243
RF troubleshooting
Page 4 –20 COMPANY CONFIDENTIAL Issue 1
Copyright © 2007 Nokia. All rights reserved.
