Module jig service concept

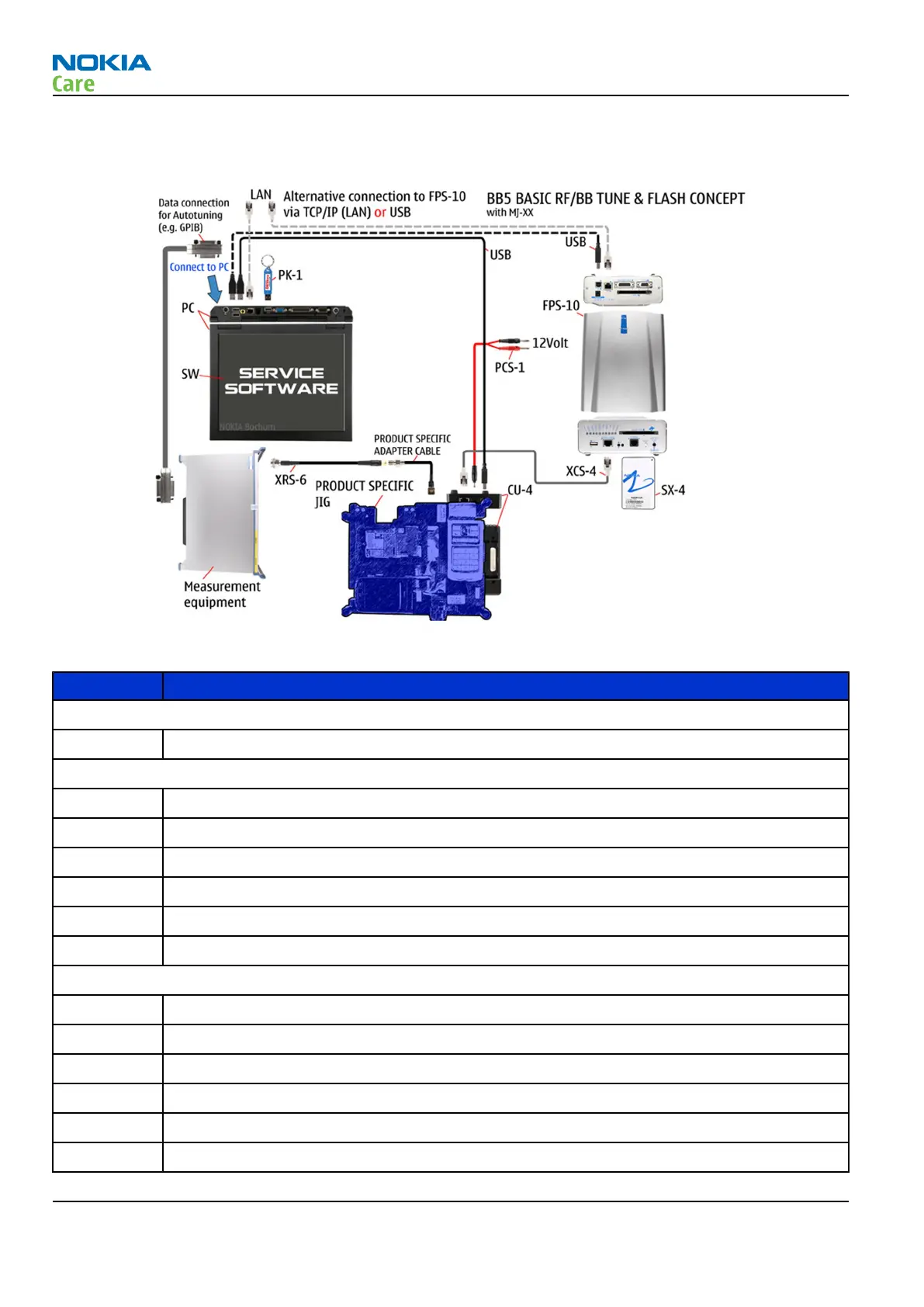

Figure 5 Module jig service concept
Type Description
Phone specific tools
MJ-135 Module jig
Other tools
CU-4 Control unit
FPS-10 Flash prommer box
PKD-1/PK-1 SW security device
SX-4 Smart card
PC with Phoenix service software
Measurement equipment
Cables
CA-58RS RF service cable (product-specific adapter cable)
PCS-1 DC power cable
XCS-4 Modular cable
XRS-6 RF cable
USB cable
GPIB control cable
RM-243
Service Tools and Service Concepts
Page 2 –18 COMPANY CONFIDENTIAL Issue 1
