XRS-6 RF cable
The RF cable is used to connect, for example, a module repair jig to
the RF measurement equipment.
SMA to N-Connector approximately 610 mm.
Attenuation for:
• GSM850/900: 0.3+-0.1 dB
• GSM1800/1900: 0.5+-0.1 dB
• WCDMA850: 0.3+-0.1 dB
• WCDMA2100: 0.6+-0.1dB
Service concepts
POS (Point of Sale) flash concept

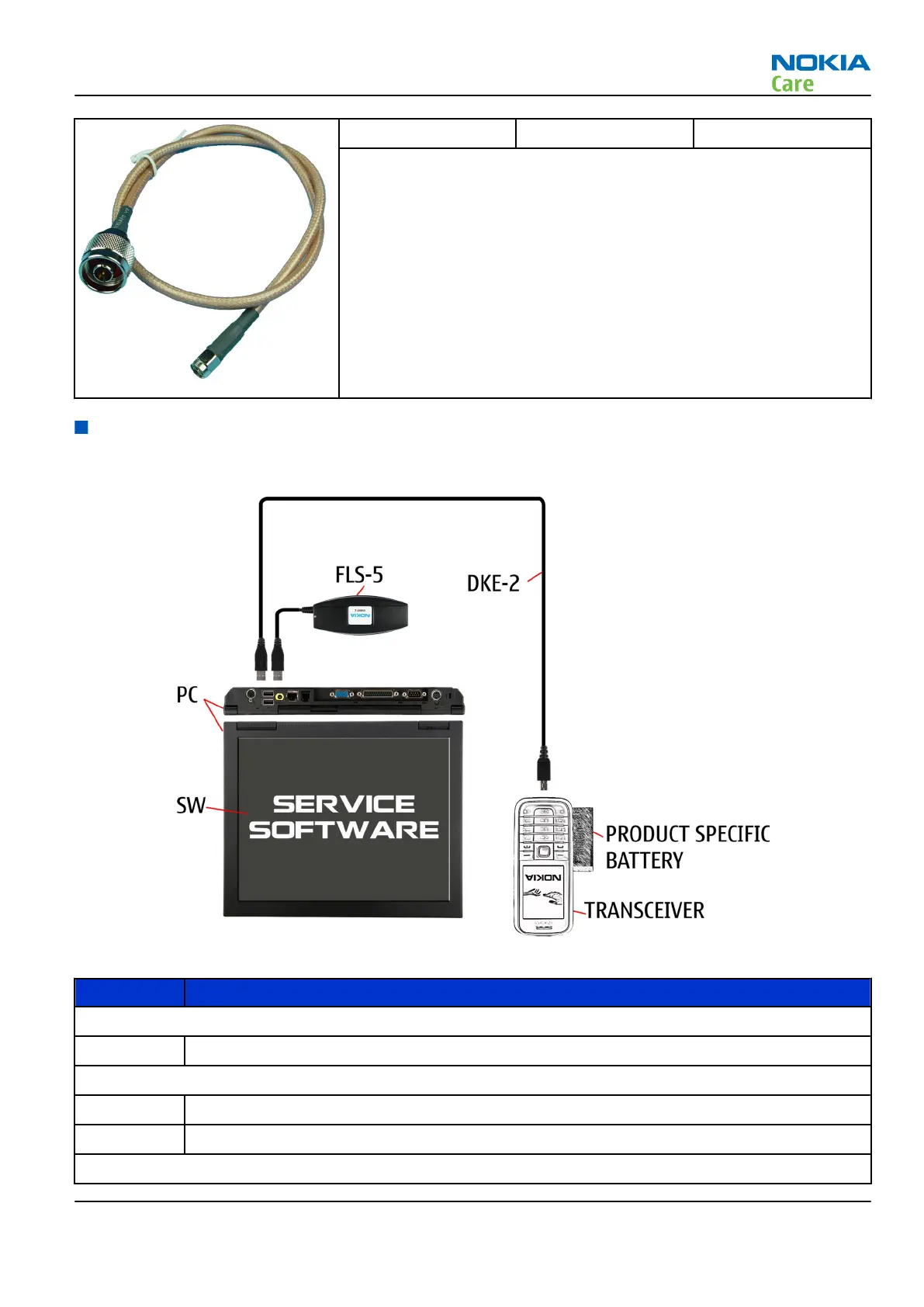

Figure 2 POS flash concept
Type Description
Product specific tools
BL-5B Battery
Other tools
FLS-5 POS flash dongle
PC with Phoenix service software
Cables
RM-243
Service Tools and Service Concepts
Issue 1 COMPANY CONFIDENTIAL Page 2 –15
