Cables
The table below gives a short overview of service tools that can be used for testing, error analysis and repair
of product RM-243, refer to various concepts.

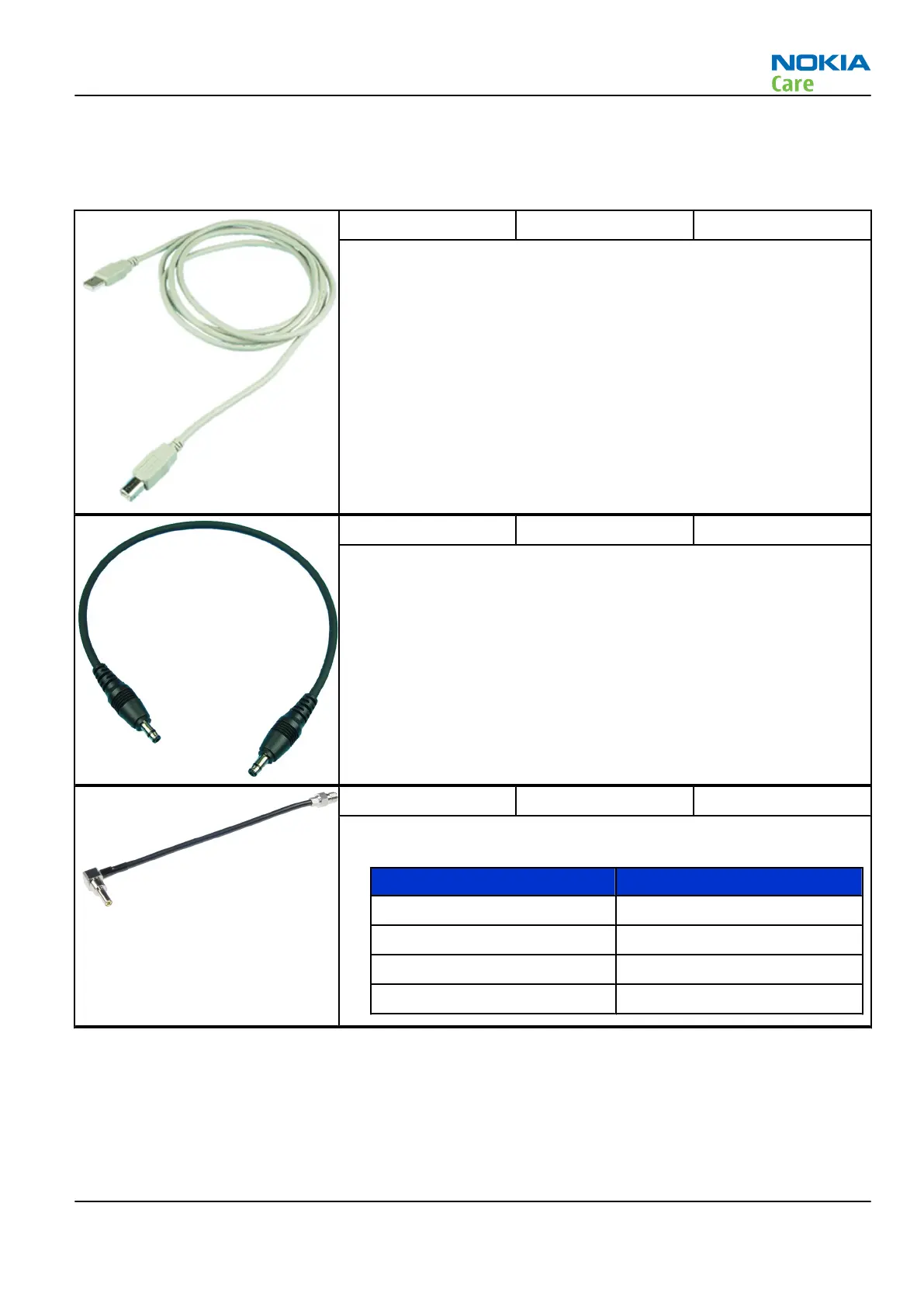

CA-31D USB cable
The CA-31D USB cable is used to connect FPS-10 or FPS-11 to a PC. It is
included in the FPS-10 and FPS-11 sales packages.
CA-35S Power cable
CA-35S is a power cable for connecting, for example, the FPS-10 flash
prommer to the Point-Of-Sales (POS) flash adapter.
CA-58RS RF tuning cable
Product-specific adapter cable for RF tuning.
•
Table 8 Attenuation values
Band Attenuation Rx/Tx
GSM850/900 0.2...0.3 dB
GSM1800/1900 0.3...0.4 dB
WCDMA850 0.2...0.3 dB
WCDMA2100 0.4...0.6 dB
RM-243
Service Tools and Service Concepts
Issue 1 COMPANY CONFIDENTIAL Page 2 –13
