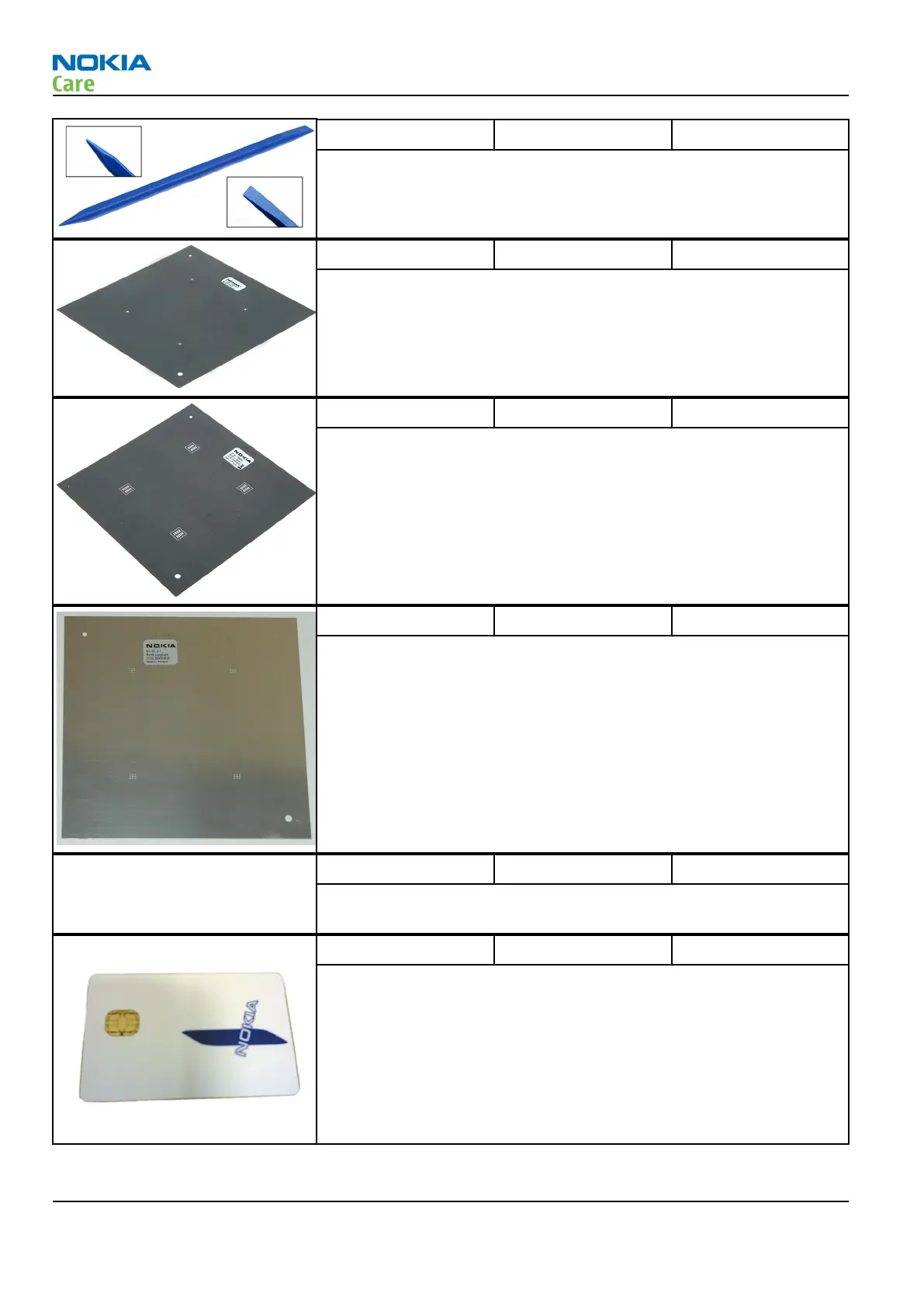

SS-93 Opening tool
SS-93 is used for opening JAE connectors.
ST-29 rework stencil
ST-29 is a rework stencil used when servicing the N7601 component.
It is used together with rework jig RJ-73.
ST-40 Rework stencil
ST-40 is a rework stencil that is used with the RJ-93 rework jig to
service the Front End Module (N7520).
ST-55 Rework stencil
ST-55 is a rework stencil used when servicing the Z7540 and Z7541
duplexers. It is used together with the rework jigs RJ-157 and RJ-160.
ST-59 Rework stencil
ST-59 is a rework stencil used when servicing the WCDMA PA (N7540)
component. It is used together with rework jig RJ-169.
SX-4 Smart card
SX-4 is a BB5 security device used to protect critical features in tuning
and testing.
SX-4 is also needed together with FPS-10 when DCT-4 phones are
flashed.
RM-243
Service Tools and Service Concepts
Page 2 –12 COMPANY CONFIDENTIAL Issue 1
Copyright © 2007 Nokia. All rights reserved.
