RF testing concept with RF coupler

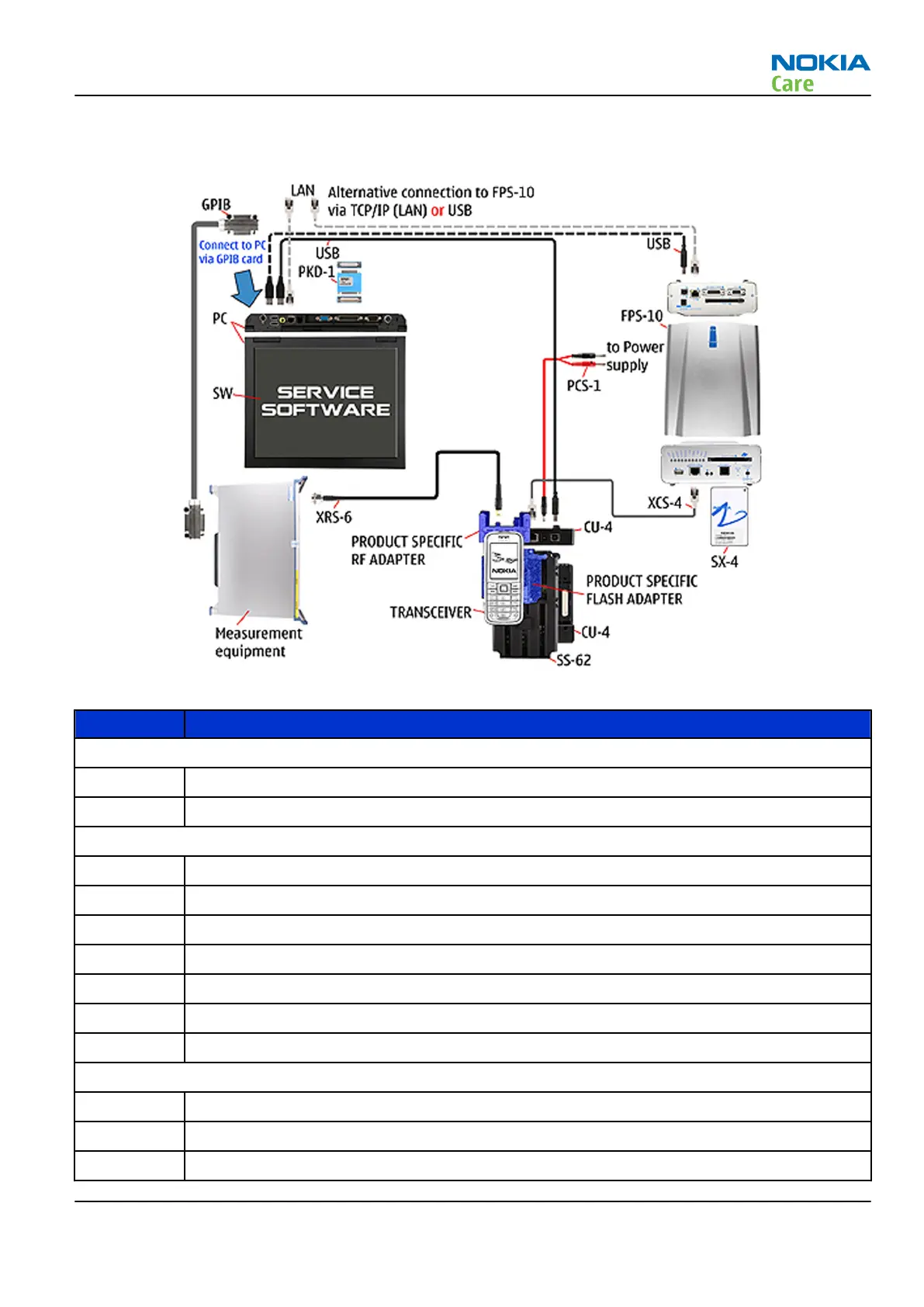

Figure 6 RF testing concept with RF coupler
Type Description
Product specific devices
FS-63 Flash adapter
SA-134 RF coupler
Other devices
CU-4 Control unit
SX-4 Smart card
FPS-10 Flash prommer box
PKD-1/PK-1 SW security device
SS-62 Flash adapter base
Measurement equipment
PC with Phoenix service software
Cables
PCS-1 Power cable
XCS-4 Modular cable
XRS-6 RF cable
RM-243
Service Tools and Service Concepts
