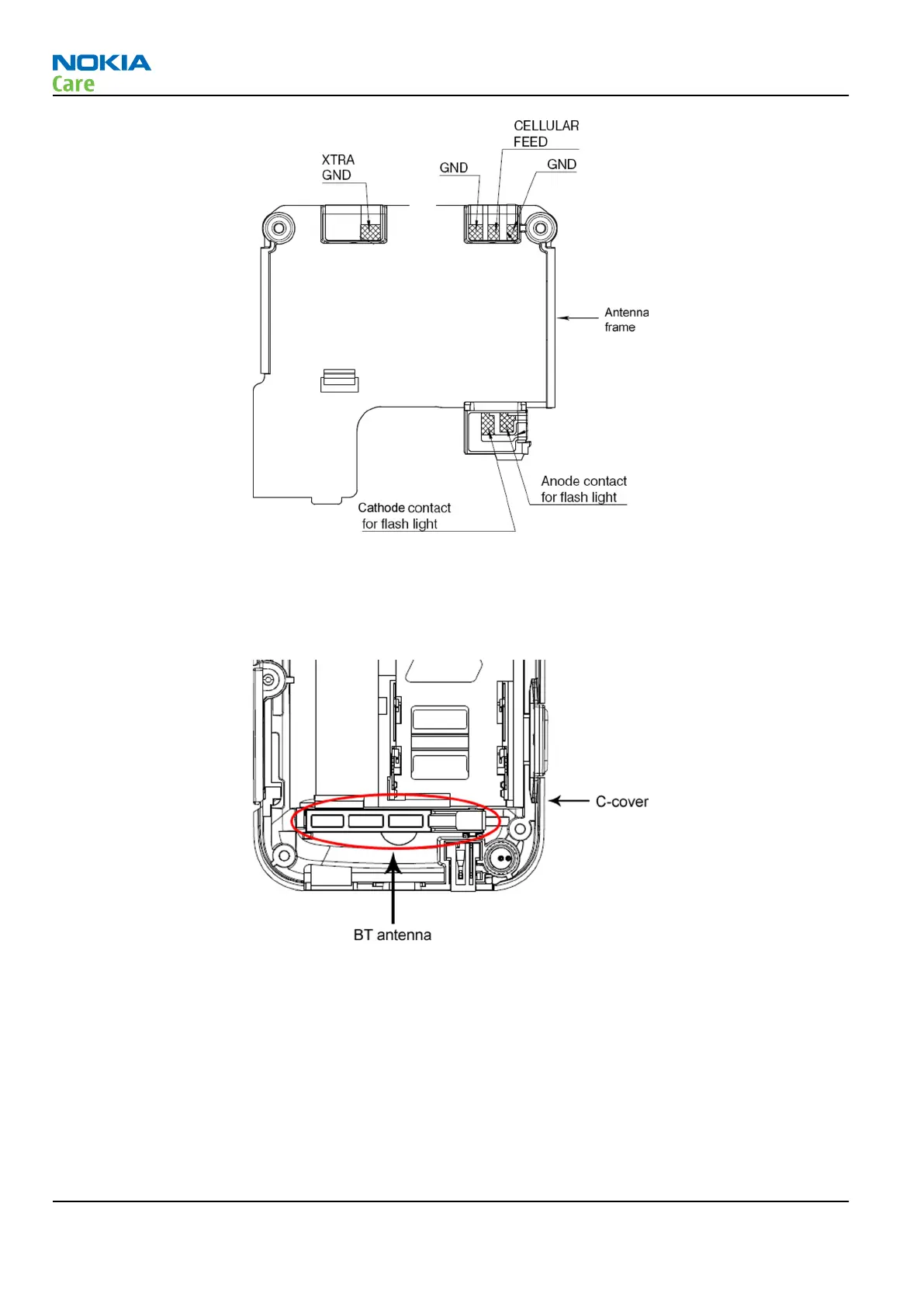

Figure 24 Antenna frame contacts
BT antenna functionality
The BT antenna is functioning normally when the BT antenna contacts take proper contact to the PWB's C-
clips, and the BT antenna assembly is visually intact in the C-cover.
Figure 25 BT antenna location
RM-243
RF troubleshooting
Page 4 –26 COMPANY CONFIDENTIAL Issue 1
