ELECTRONIC COMPONENTS - ALL MODELS
!
WARNING:
Burn hazard! Allow the burner box and burner
components to cool before attempting to service the
burner assembly or components.
5. Remove burner box cover retaining screw, then slide
burner box cover to the left.
6. Remove electrode retaining screw then remove
electrode.
7. Thread replacement spark/sense electrode wire
through burner box cover.
8. Install replacement electrode, then install electrode
retaining screw.
9. Install burner box cover, then install burner box
cover retaining screw.
10. Connect orange spark/sense electrode wire. N500 -
relighter; N510 power board.
11. Open manual shutoff to LP gas supply.
12. Reconnect 12 Vdc power supply.
13. Plug in ac power cord.
14. Place refrigerator in service.
Spark/sense Electrode - All Models
The spark/sense electrode assembly provides a spark
to light the burner and monitors the presence of the
flame. In N500 models, the spark/sense electrode
assembly is routed through the relighter; in N510
models it is routed through the power board. See Figure
36.
Replacing Spark/sense Electrode
1. Turn OFF refrigerator.
2. Unplug ac power cord
3. Disconnect 12 Vdc supply.
4. Close manual shutoff to LP gas supply.

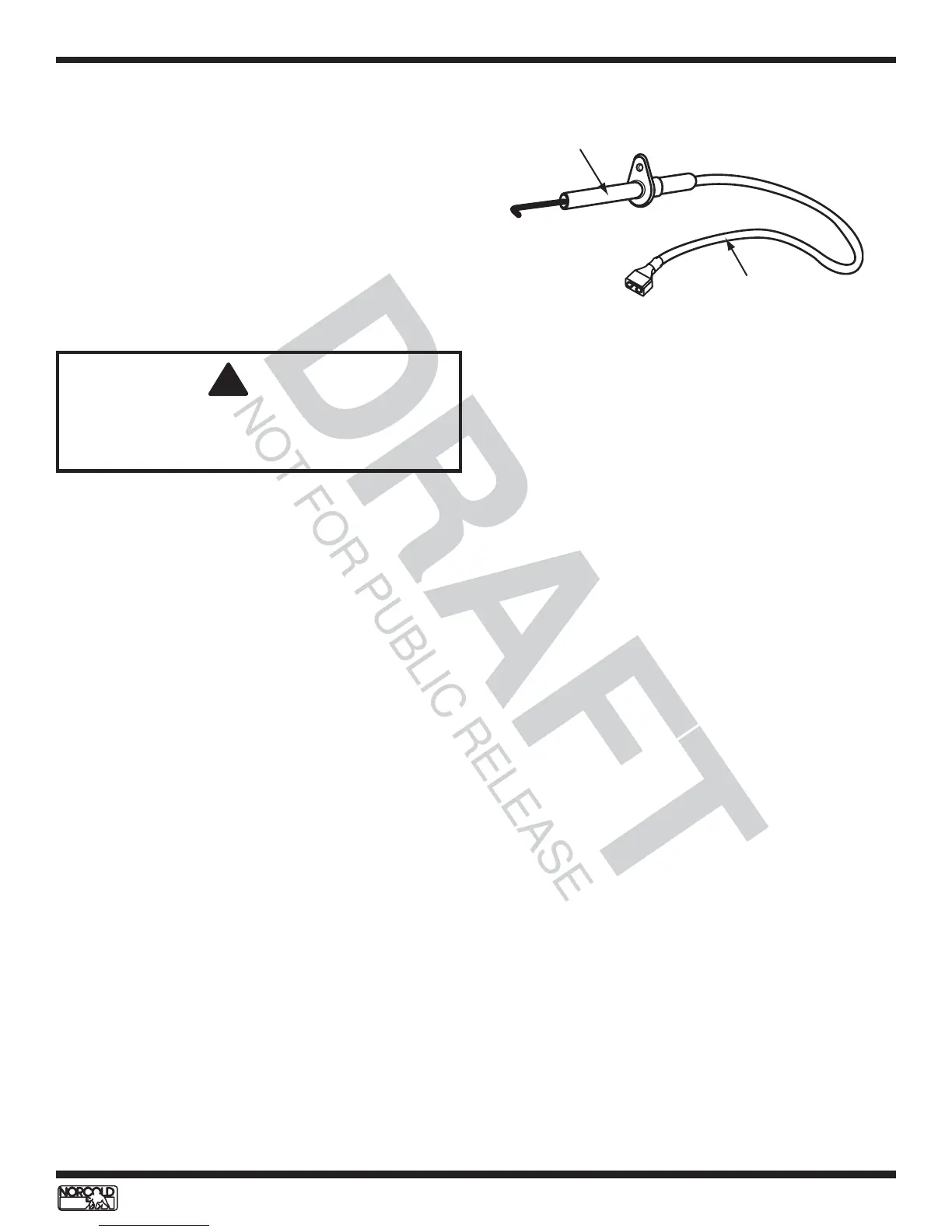

Figure 36. Spark/sense electrode
Spark/sense electrode
Orange wire
