4
Hardware description
The nRF52 DK (PCA10040) features an onboard programming and debugging solution.
In addition to radio communication, the SoC can communicate with a computer through Universal Serial
Bus (USB) and a virtual serial port provided by the interface MCU.
4.1 Hardware drawings
nRF52 DK hardware drawings show both sides of the PCA10040.

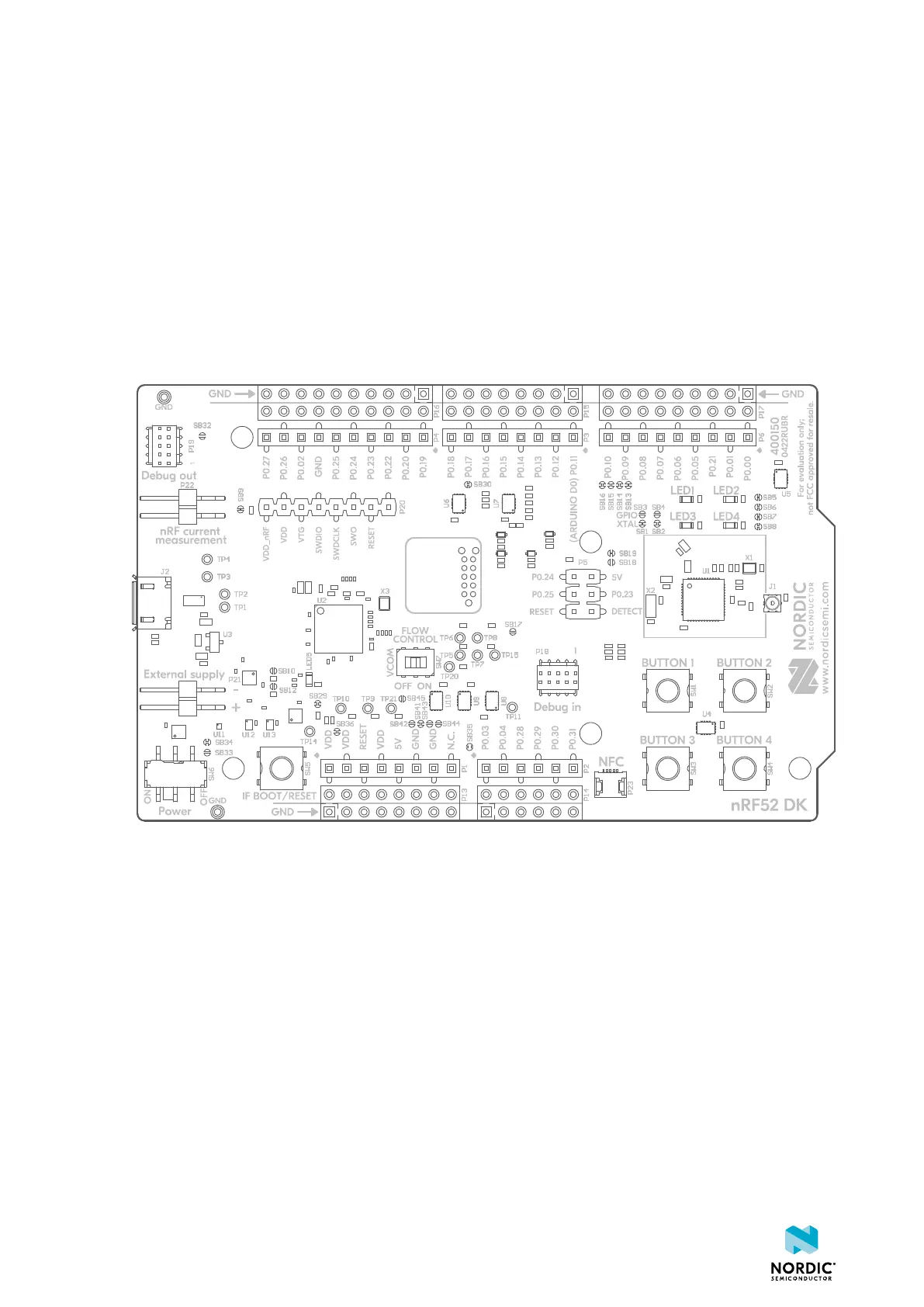

Figure 3: nRF52 DK (PCA10040) front view
4397_500
11
