Nordic Semiconductor nRF52 - Debug Input

Hardware description

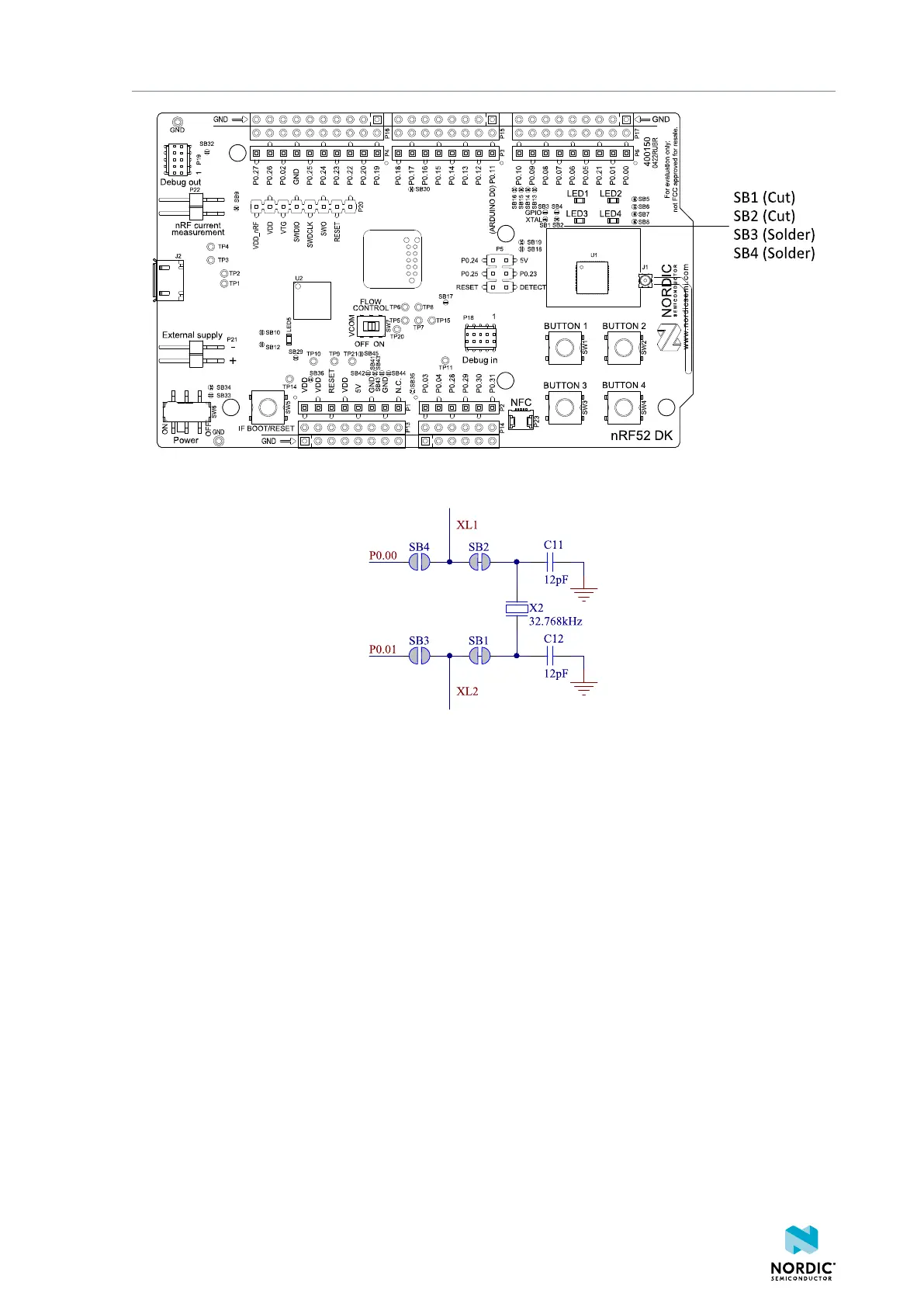

Figure 16: Configuring P0.00 and P0.01
Figure 17: 32.768 kHz crystal and SB1–SB4
4.7 Debug input
The Debug in connector (P18) makes it possible to connect external debuggers for debugging while
running on a battery or an external power supply.
4397_500
20
