12
13. Plug the Power Adapter (84) into the jack on the
front of the elliptical.
To plug the Power Adapter (84) into an outlet,
see HOW TO PLUG IN THE POWER
ADAPTER on page 13.
14. Make sure that all parts are properly tightened before you use the elliptical. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the elliptical to protect the floor.
13
84

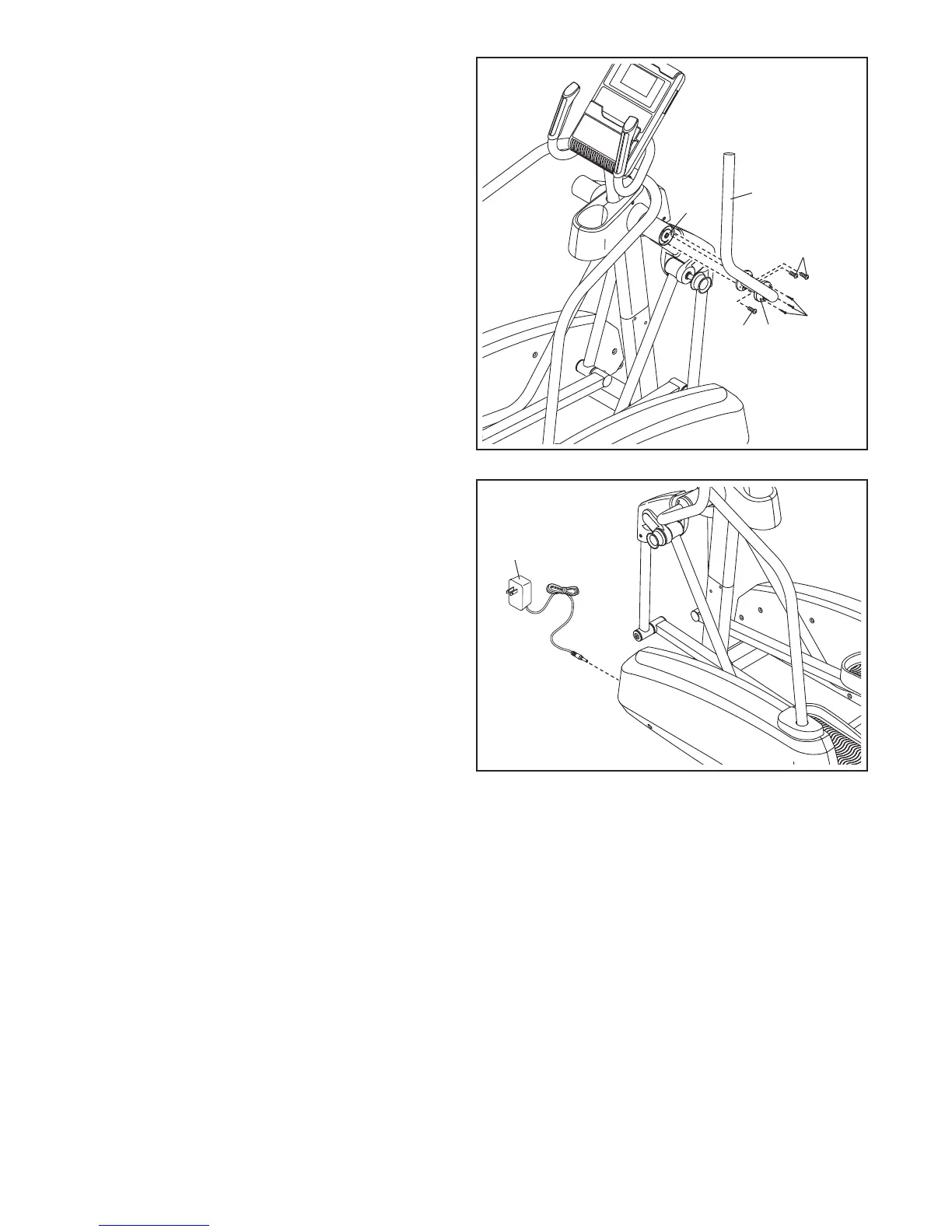

12. Identify the Right Handlebar (11), which is
marked with an “R” sticker, and orient it as
shown.
Attach the Right Handlebar (11) to the Upright
(2) with three M8 x 25mm Flat Patch Screws
(68).
Then, slide a Handlebar Cover (31) onto the
Right Handlebar (11) and attach it with three M4
x 16mm Screws (67).
Attach the Left Handlebar (not shown) in the
same way.
See step 2. Tighten the M10 x 19mm Patch
Screws (61).
See step 10. Tighten the M8 x 13mm Patch
Screws (62).
11
68
68
67
31
12
2
To Next Page
