9

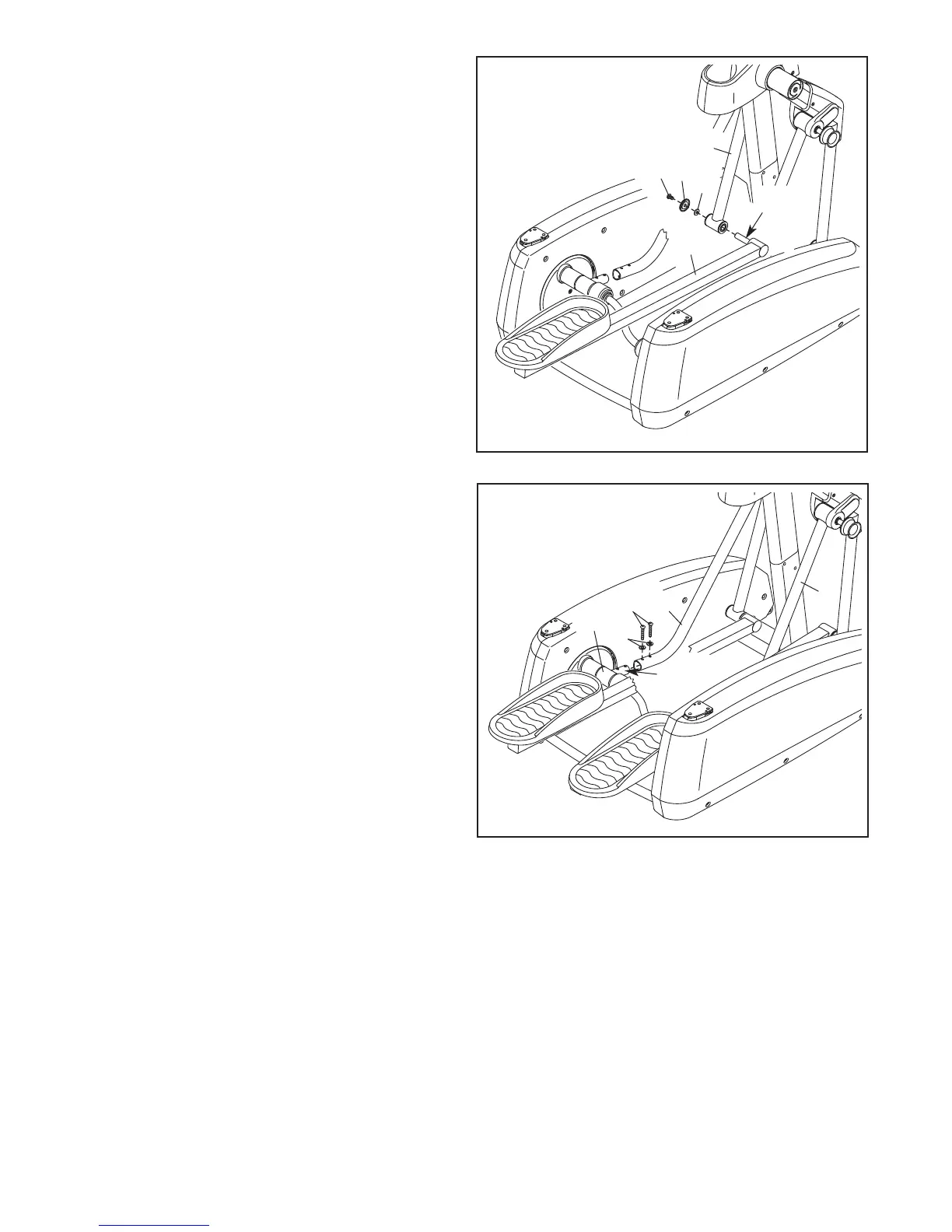

7. Apply grease to the axle of the left Pedal Arm
Bracket (43).
Attach the left Pedal Leg (8) to the left Pedal
Arm Bracket (43) with two M10 x 19mm Patch
Screws (61) and two M10 Split Washers (79).
Attach the right Pedal Leg (8) in the same
way.
7
8
61
79
8
43
6
. Orient the Left Pedal Arm (14) as shown.
Apply grease to the axle on the Left Pedal Arm
(14).
Position the Left Handlebar Leg (12) as shown.
Then, insert the Left Pedal Arm (14) into the
Left Handlebar Leg (12).
Attach the Left Pedal Arm (14) with an M10 x
19mm Patch Screw (61), a Pedal Axle Cover
(39), and an M10 Washer (64). Do not over-
tighten the Patch Screw; the Left Pedal Arm
must pivot easily.
Attach the Right Pedal Arm (not shown) in
the same way.
6
14
61
64
12
Grease
39
Grease
To Next Page
