3. Identify the Left and Right Upright Covers (20,
21), which are marked with “L” and “R” stickers,
and orient them as shown.

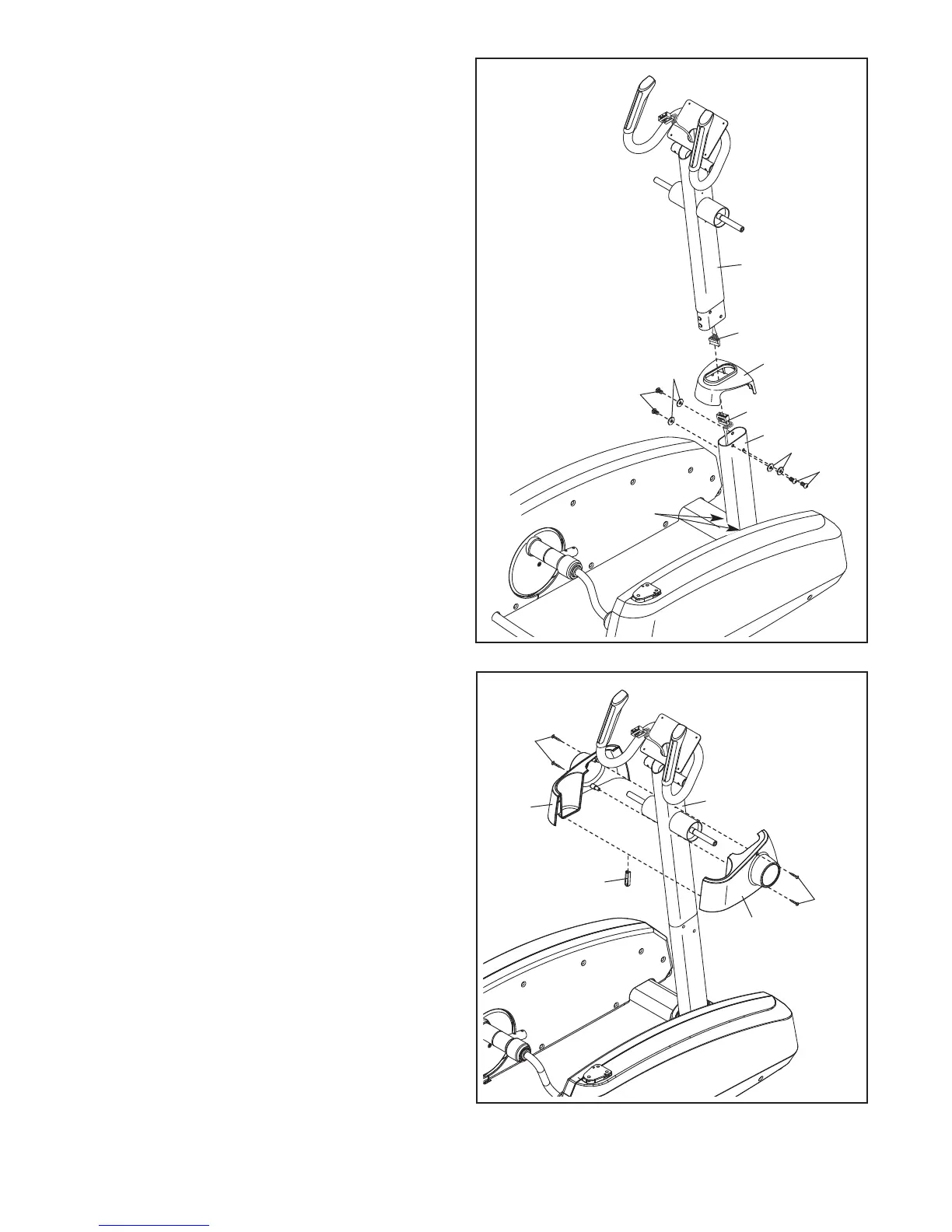

Attach the Left and Right Upright Covers (20,
21) around the Upright (2) with four M4 x 30mm
Screws (74).
Insert the Clip (85) into the underside of the Left
and Right Upright Covers (20, 21).
3
85
21
2
74
20
74
2
. Identify the Frame Cover (54) and orient it as
shown.
Slide the Frame Cover (54) onto the Frame (1).
Press the posts on the Frame Cover into the
indicated holes in the Frame.
Identify the Upright (2) and orient it as shown.
While a second person holds the Upright (2)
near the Frame (1), connect the Upper Wire
Harness (81) to the Lower Wire Harness (82).
Tip: Avoid pinching the Wire Harnesses (81,
82). Insert the Upright (2) into the Frame (1).
Attach the Upright (2) with four M10 x 19mm
Patch Screws (61) and four M10 Split Washers
(79). Do not tighten the Patch Screws yet.
2
1
79
79
61
Holes
2
61
54
82
81
Avoid pinching
the wires
