10
9

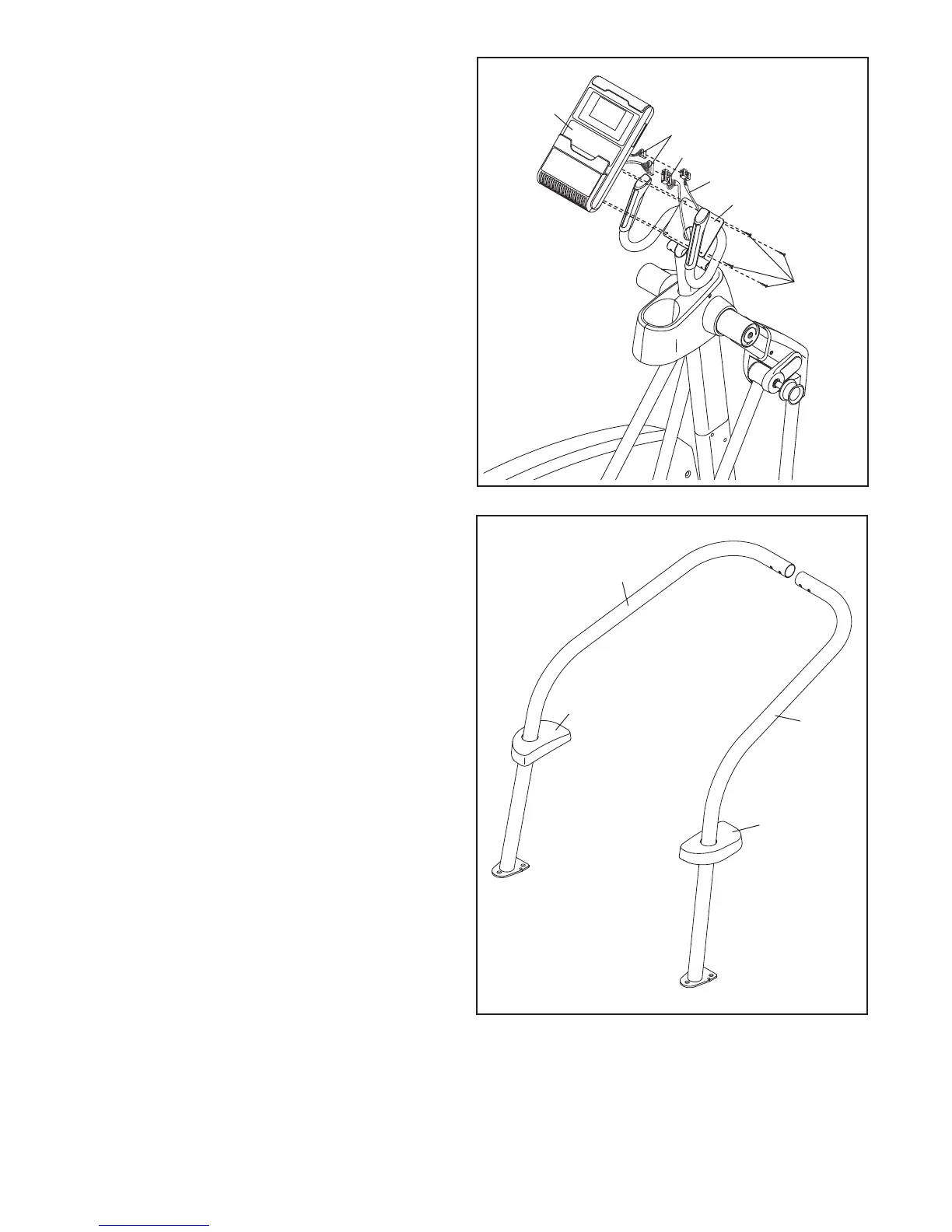

9. Identify the Left Handrail (4), which is marked
with an “L” on the underside.
Then, identify the Right Handrail (5), which is
marked with an “R” on the underside.
Orient the Left and Right Handrails (4, 5) as
shown.
Slide the Left Handrail Cover (6) onto the Left
Handrail (4). Then, slide the Right Handrail
Cover (7) onto the Right Handrail (5).
4
5
7
6
8. While a second person holds the Console (3)
n
ear the Upright (2), connect the wires on the
console to the Upper Wire Harness (81) and to
the Pulse Wire (92).
Insert the excess wire into the Upright (2) or
into the Console (3).
Tip: Avoid pinching the wires. Attach the
Console (3) to the Upright (2) with four M4 x
16mm Screws (67).
8
3
2
Avoid pinching
the wires
81
Wires
9
2
67
To Next Page
