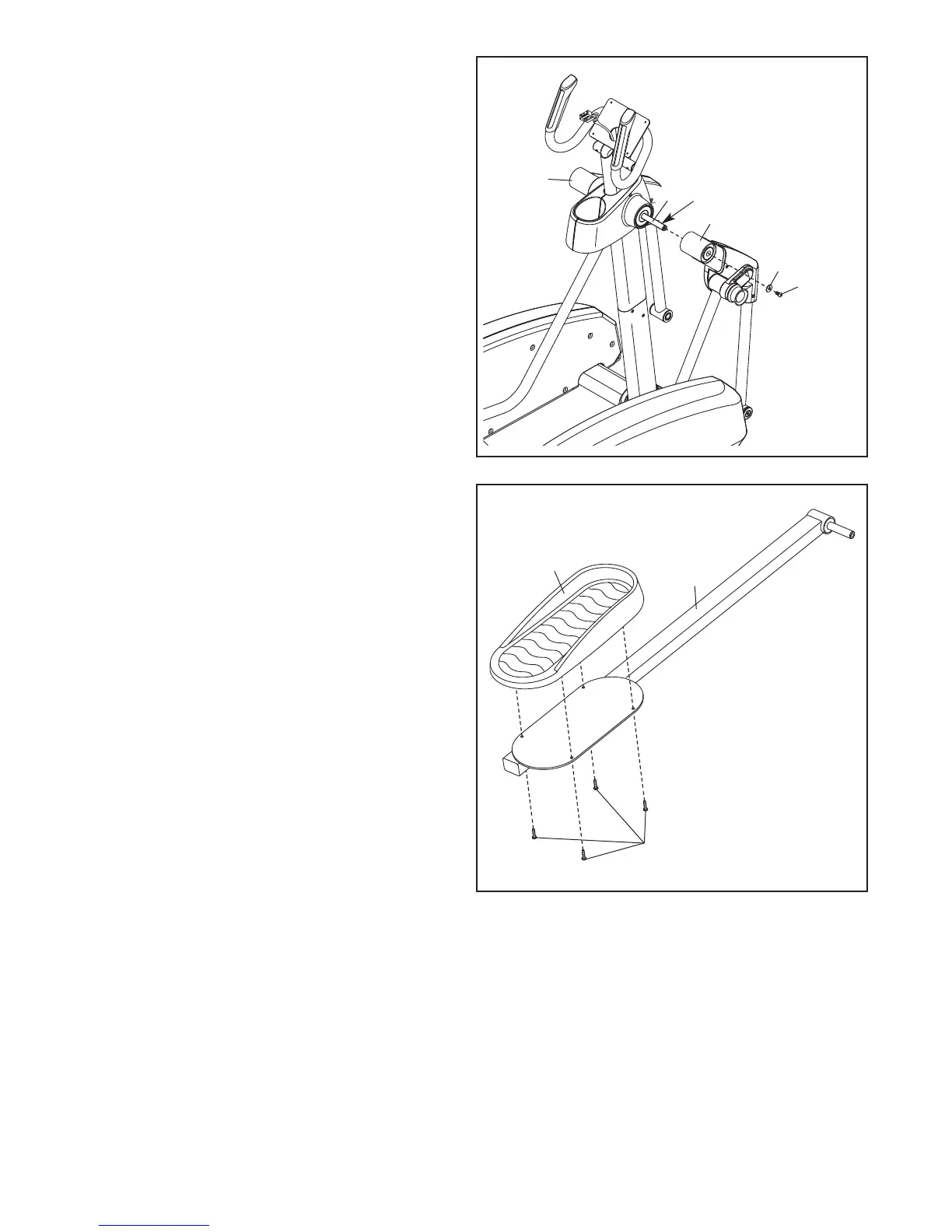

5. Identify the Right Pedal Arm (15), which is
marked with an “R” sticker.
Attach a Pedal (9) to the Right Pedal Arm (15)
with four M6 x 13mm Patch Screws (78).
Attach the other Pedal to the Left Pedal Arm
(not shown) in the same way.
5
78
15
9
4
4
. Apply a generous amount of the included
grease to the right axle on the Upright (2).
Identify the Right Handlebar Leg (13), which is
marked with an “R” sticker, and orient it as
shown.
Slide the Right Handlebar Leg (13) onto the
axle on the Upright (2).
Attach the Right Handlebar Leg (13) with an
M10 x 19mm Patch Screw (61) and an M10
Washer (64).
Attach the Left Handlebar Leg (12) in the
same way.
13
12
64
61
Grease
2
To Next Page
