20
Inspect and tighten all parts of the elliptical regularly.
R
eplace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
t
o the console, keep liquids away from the con-
sole and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console does not display your heart rate when
you hold the handgrip pulse sensor, or if the displayed
heart rate appears to be too high or too low, see step
5 on page 17.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
First, remove all of the screws from the right outer and
inner shields; there are two sizes of screws in the
right outer and inner shields—note which size of
screw you remove from each hole. Then, gently
remove the right outer shield.

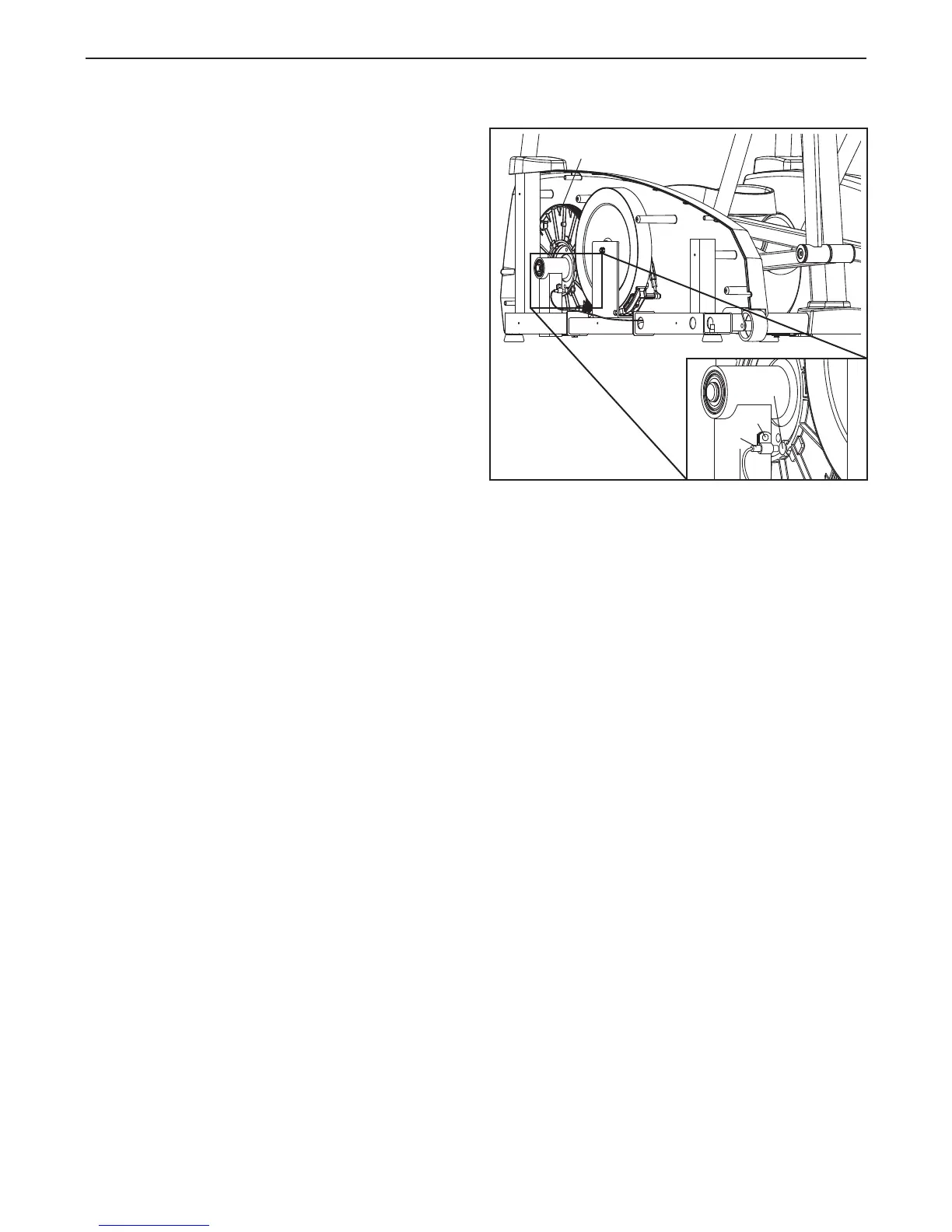

Locate the Reed Switch (86). Turn the Pulley (53) until
a Magnet (88) is aligned with the Reed Switch.
Loosen, but do not remove, the indicated M4 x 16mm
Screw (67).
Slide the Reed Switch (86) slightly closer to or away
from the Magnet (88), and then retighten the M4 x
16mm Screw (67).
Rock the pulley forward and backward just enough
that the magnet passes the reed switch repeatedly.
Repeat these actions until the console displays correct
feedback.
When the reed switch is correctly adjusted, reattach
the right outer and inner shields. Note: If you have
questions regarding which screw should be in which
hole, see EXPLODED DRAWING C on page 27 and
the PART LIST on page 23.
MAINTENANCE AND TROUBLESHOOTING
86
5
3
67
88
