6

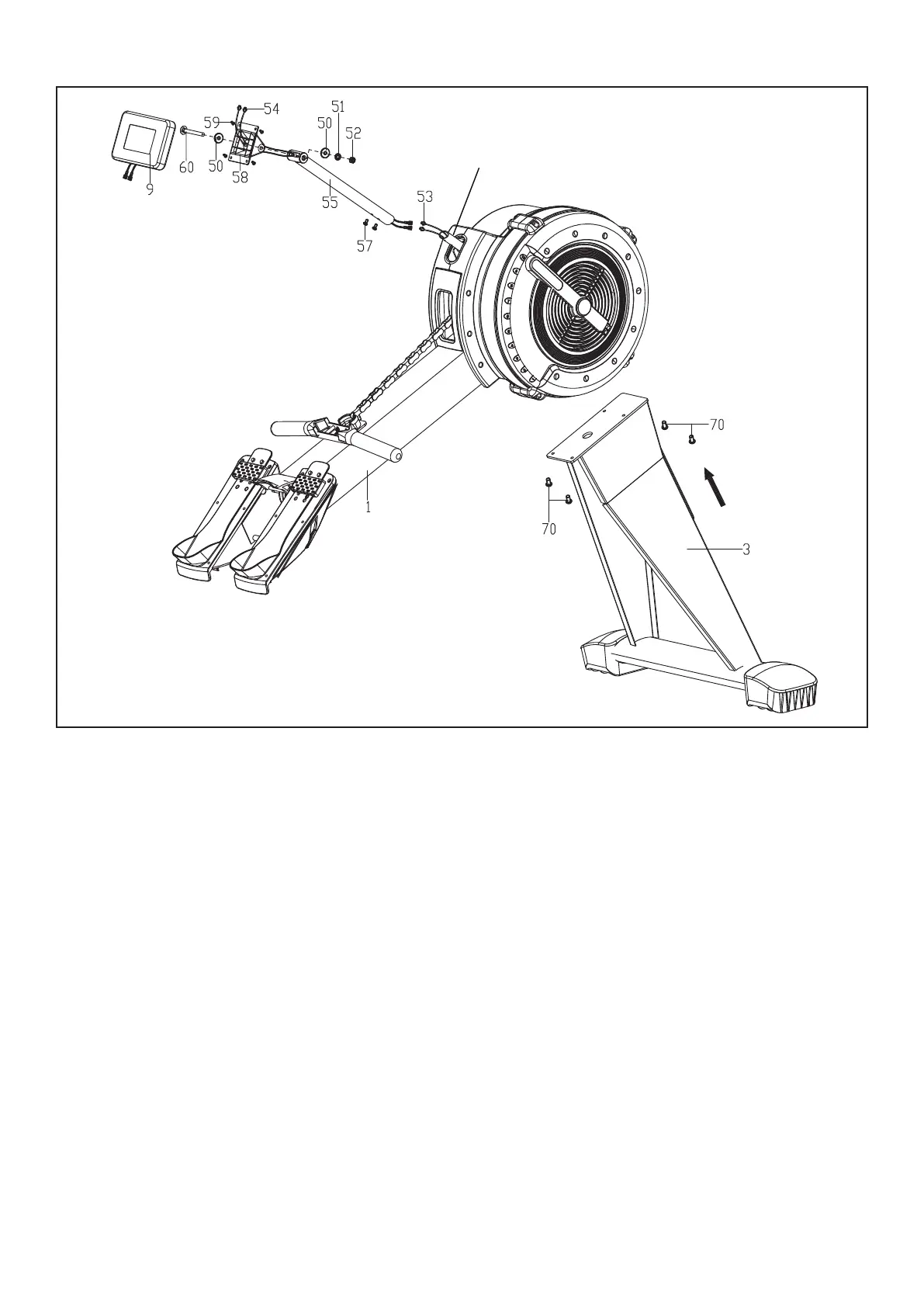

STEP 2
Pre-lock the front braced combination (3) to the Bracket tubing combination (1) with Screws (70).
(NOTE: Please don’t tight the screw in the beginning. when 4 pcs screw (57) nished pre-lock then tighten
4 pcs screw (57).
Firstly connect the sensor wire (53) to the sensor extension wire(54), then tighten the upper meter sup-
porting tube (55) to the Under meter supporting tube (71) on Bracket tubing combination (1).
Take the sensor extension wire (54) through to the bottom of console bracket (58), then tighten the con-
sole bracket (58) to the upper meter supporting tube (55) with screw (60), cushion rubber (50) , at washer
(51) and nylon nut (52).
Connect the Sensor extension wire (54)to the meter (9).Then lock the meter (9) to the console bracket
(58 ) with screw (59).
71
To Next Page
