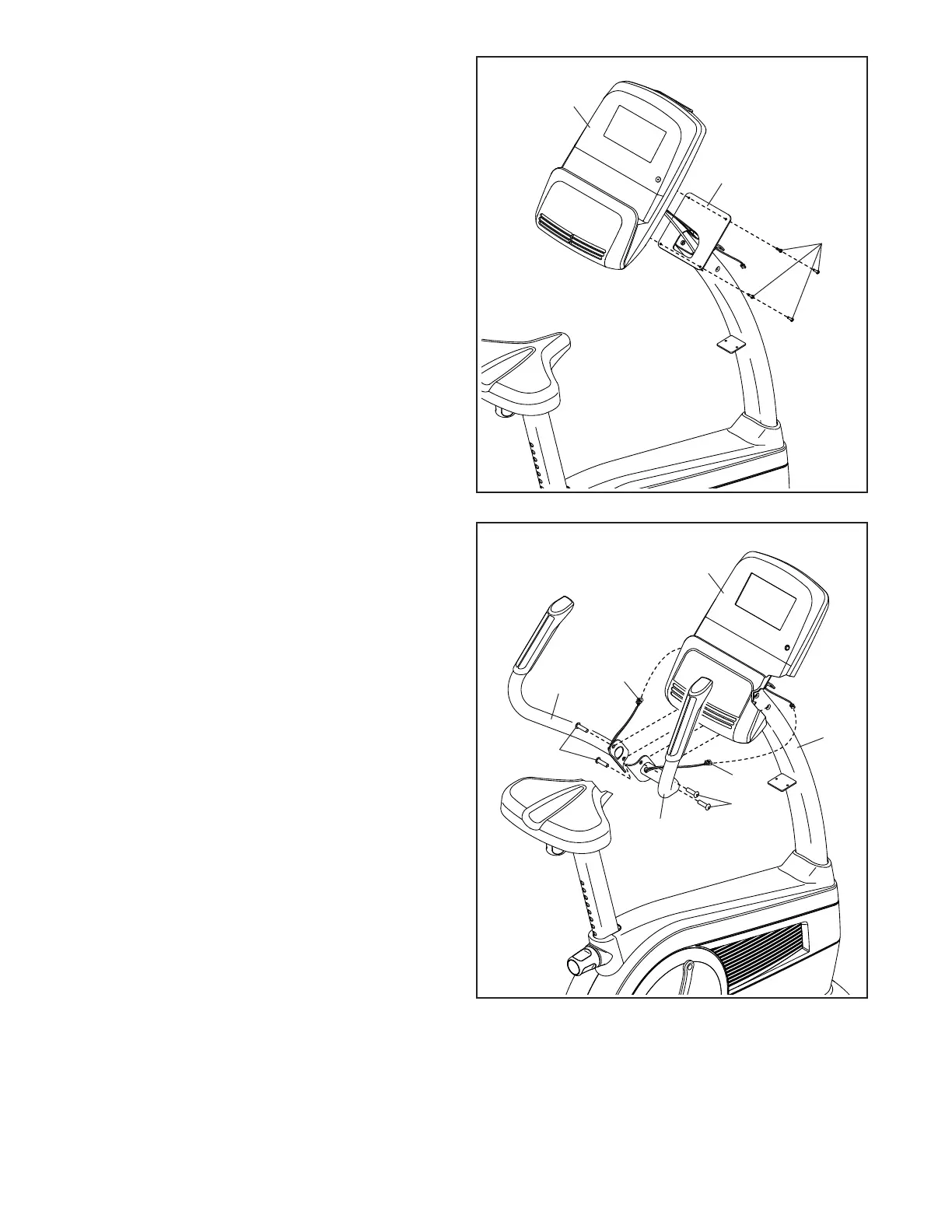

12. Have a second person hold the Right Handlebar
(5) near the Upright (4).
Connect the Pulse Wire (61) in the Right
Handlebar (5) to the matching wire on the
Console (13).
Tip: Avoid pinching the wires. Attach the
Right Handlebar (5) to the Upright (4) with two
M8 x 16mm Screws (63); start both Screws,
and then tighten them.
Repeat this step with the Left Handlebar (14).
12
61
61
63
63
14
5
4
34
13
13
4
Avoid pinching
the wires
Avoid pinching
the wires
11
11. Tip: Avoid pinching the wires. Attach the
Console (13) to the Upright (4) with four
#8 x 18mm Screws (34); start all the Screws,
and then tighten them.
