14

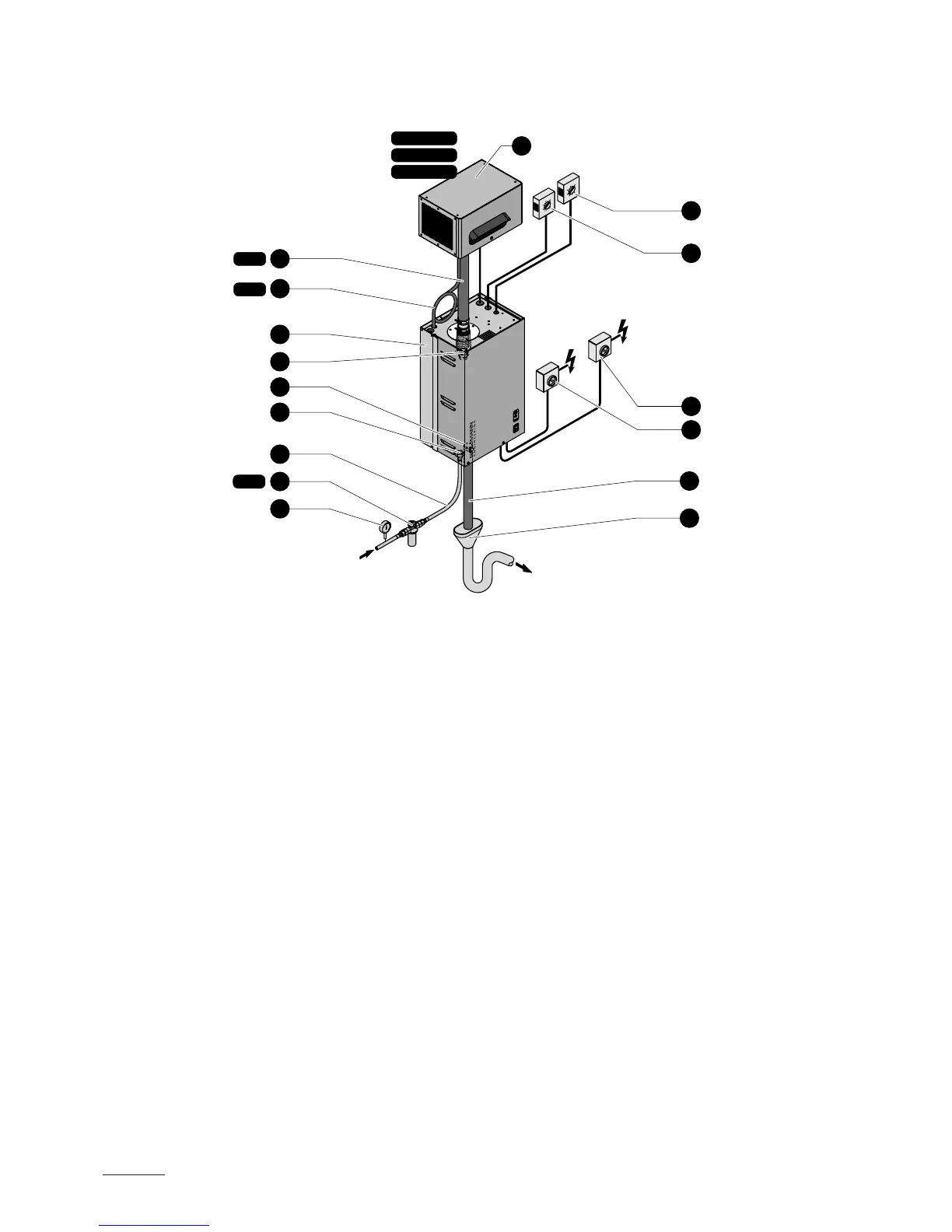

System overview room humidication
125...1250 µS/cm
1...10 bar
1...40 °C
1 Steam humidier
2 Steam connector
3 Water drain connector
4 Water supply connector
5 Water connection hose G 3/4"- G 3/8"
(included in the delivery)
6 Filter valve (accessory “Z261”)
7 Manometer (installation recommended)
8 Funnel with siphon (building side)
9 Water drain hose (included in the delivery)
10 Service switch control voltage supply (building side)
11 Service switch heating voltage supply (building side)
12 Steam hose (accessory “DS..”)
13 Condensate hose (accessory “KS10”)
14 Ventilation unit (accessory “FAN4 N...”)
15 Humidity controller 010V or Humidistat
16 Safety humidistat
ONOFF
ONOFF
10
11
15
16
1
3
4
5
6
7
Z261
DS80
KS10
13
12
FAN4 N S W
FAN4 N M W
FAN4 N L W
2
8
9
14
