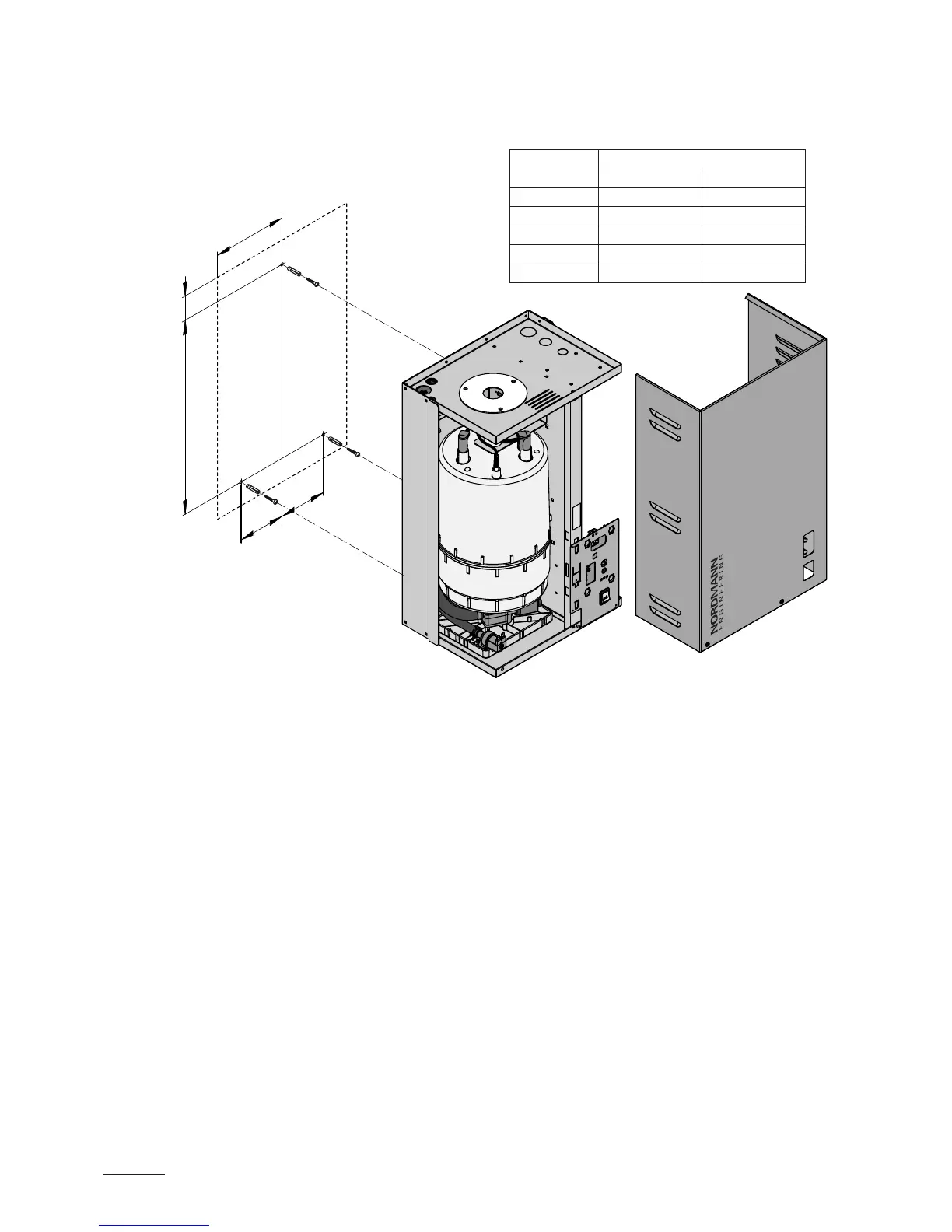

5.3.2 Mountingthehumidier
Procedure
1. Mark the attachment point “A” on the wall.
2. Drill hole for attachment point “A” (diameter: 8 mm, depth: 40 mm).
3. Insert the supplied plastic plug, and tighten the screw until the distance
between the wall and the screw head is 4 mm.
4. Unlock the two screws xing the front panel to the unit, then remove the
front panel.
5. Hang up the unit onto the screw and adjust it horizontally and vertically
using a spirit level. Then, mark the xing points “B”.
6. Drill the holes for the xing points “B” (diameter: 8 mm, depth: 40 mm).
7. Insert the supplied plastic plugs, and tighten the screws until the distance
between the wall and the screw head is 4 mm.
8. Hang the unit up onto the screws. Before tightening the screws, readjust
the unit with the spirit level.
9. Reattach the front panel and secure it with the two screws.
Dimension Housing size
small large
a 189 mm 246 mm
b 61 mm 52 mm
c 490 mm 547 mm
d 120 mm 180 mm
e 120 mm 180 mm
d
e
b
c
a
A
B
B
