Nordmann ES4 - Page 40

40

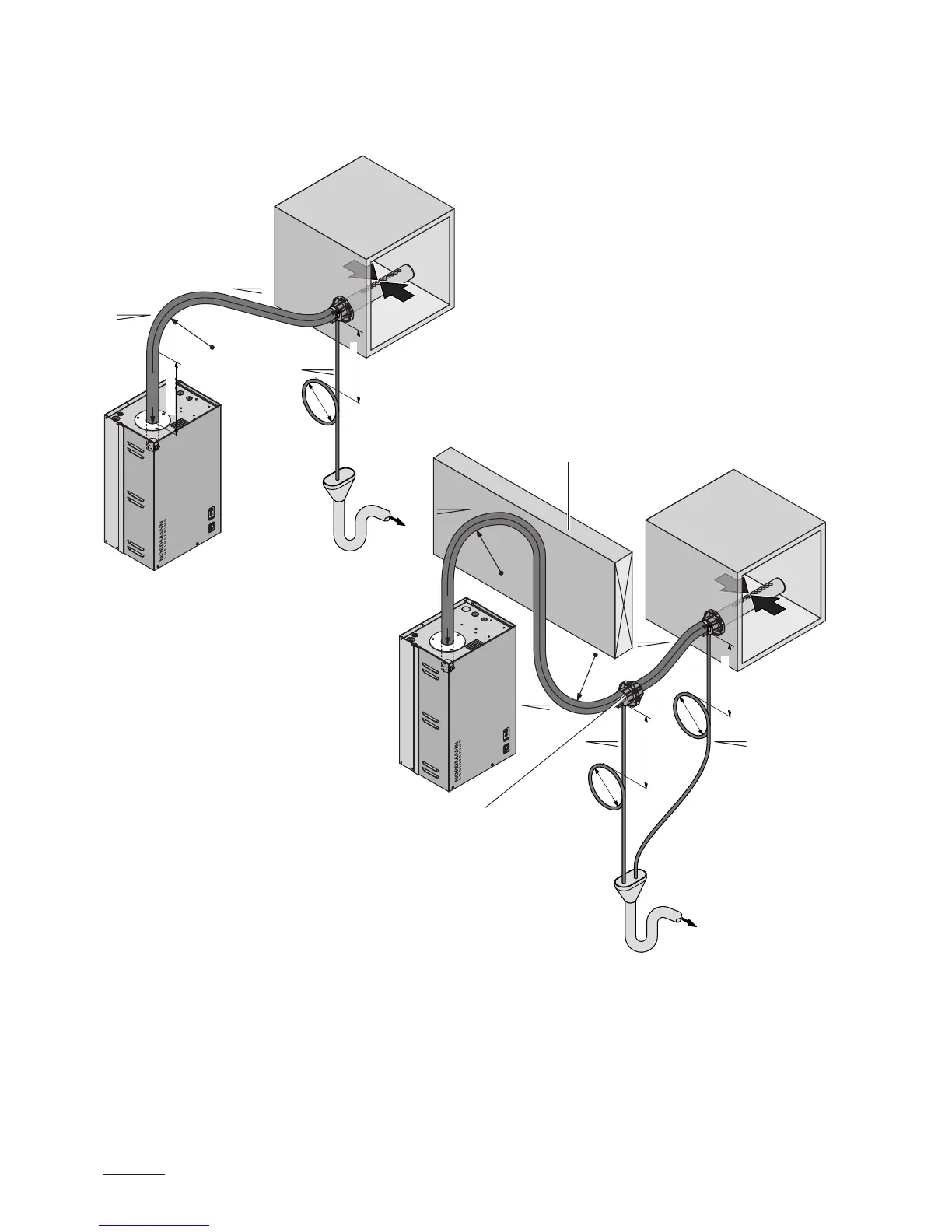

– Steam distribution pipe is mounted less than 500 mm above the top
edge of the humidier:
Rmin. 300 mm
Ømin.
200 mm
min. 300 mm
max. 4 m
min. 300 mm
min. 20 %
–
min. 5 %
–
min. 20 %
+
Rmin. 300 mm
Rmin. 300 mm
Ømin.
200 mm
Ømin.
200 mm
max. 4 m
min. 300 mm
min. 300 mm
min. 20 %
–
min. 20 %
–
min. 20 %
+
min. 5 %
–
min. 20 %
+
Obstacle
Install condensate drain (accessory)
at the lowest point
Initially, the steam hose is led with an upslope of at least 20 % over a
minimum height of 300 mm above the top edge of the humidier and
then down to the steam distribution pipe with a minimum slope of 5 %.
Condensate hose is led down with a minimum slope of 20 %, in the
form of a siphon (min. hose bend diameter Ø200 mm), directly into
a discharge funnel.
Important! Before putting the unit into operation, the siphon of the
condensate hose must be lled with water.
