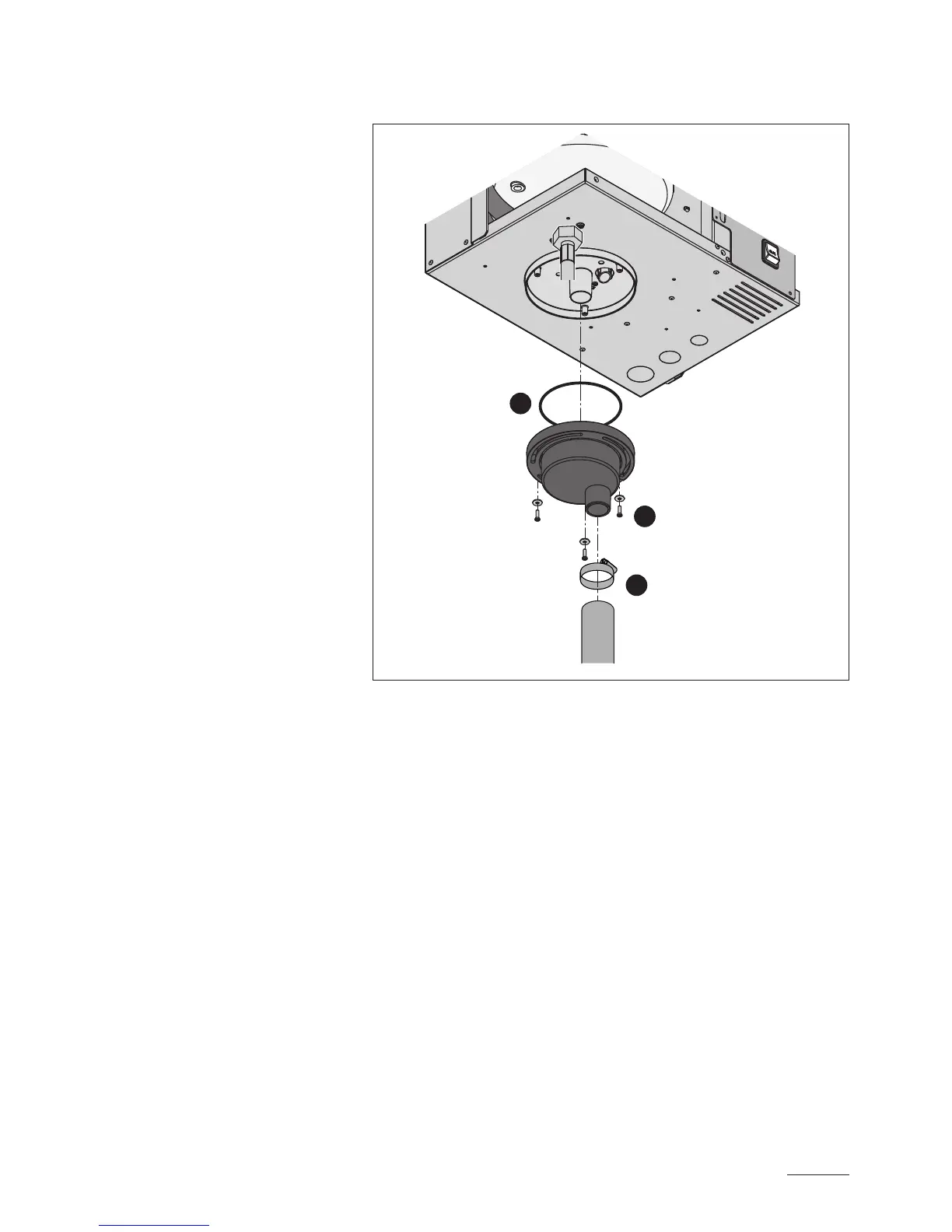

7.3.2 Removal and installation of the drain cup
1. Release the hose clamp, then remove water drain hose from the con-
nector on the water cup.
2. Undo the three screws xing the drain cup to the unit using a screwdriver,
then remove the drain cup downwards.
3. Remove Oring from the annular groove of the drain cup.
Installation of the drain cup follows the reverse sequence. Before assem-
bling check Oring of the drain cup for damage and replace if necessary.
1
2
3
