Installation
3-5
Part 1073401_07
E 2021 Nordson Corporation
Unpacking the Melter
Before starting the installation, remove the melter from the pallet, locate the
installation kit, and inspect the melter for damaged and missing parts. Report
any problems to your Nordson representative.
Contents of the Installation Kit
The installation kit provided with the melter contains the components shown
in Figure 3‐2.
NOTE: All fuses are provided as spares.
The installation kit also contains a package of safety label overlays that are
printed in variety of languages. If required by local regulations, the
appropriate language overlay should be applied over the English version of
the same label. Refer to Safety Labels and Tags in Section 1, Safety, for the
location of each safety label.

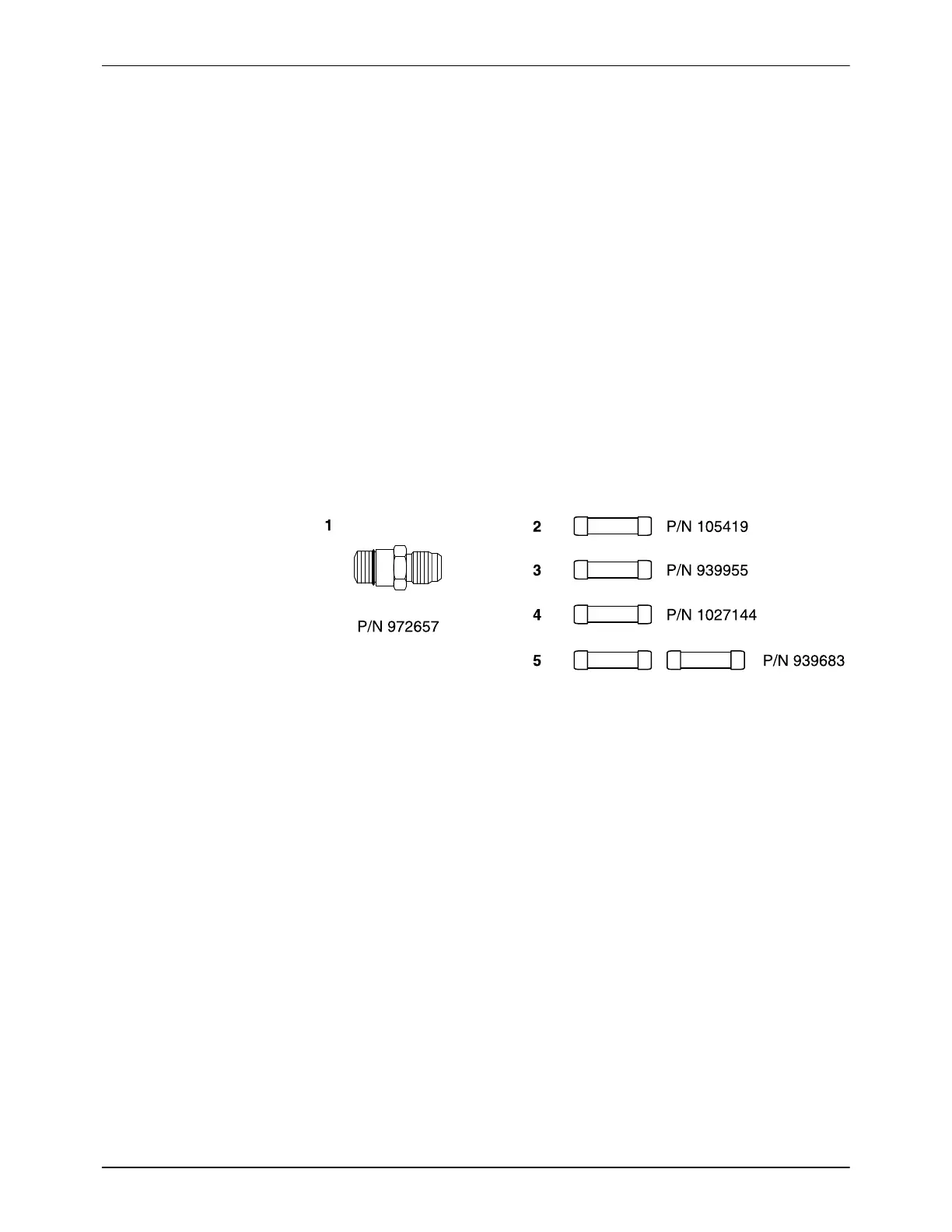

Figure 3-2 Installation kit components
1. Straight hose fitting
2. Fuse, fast, 10 A, 250 VAC
3. Fuse, slow, 2 A, 250 VAC
4. Fuse, fast, 5 A, 250 VAC
5. Fuse, 6.3 A, 250 VAC (2)
Customer‐Supplied Materials
The following additional materials are also required to install the melter:
S Strain relief (at the disconnect switch box)
S 8 mm (
5
/
16
in.) machine bolts and locking hardware for mounting the
melter
