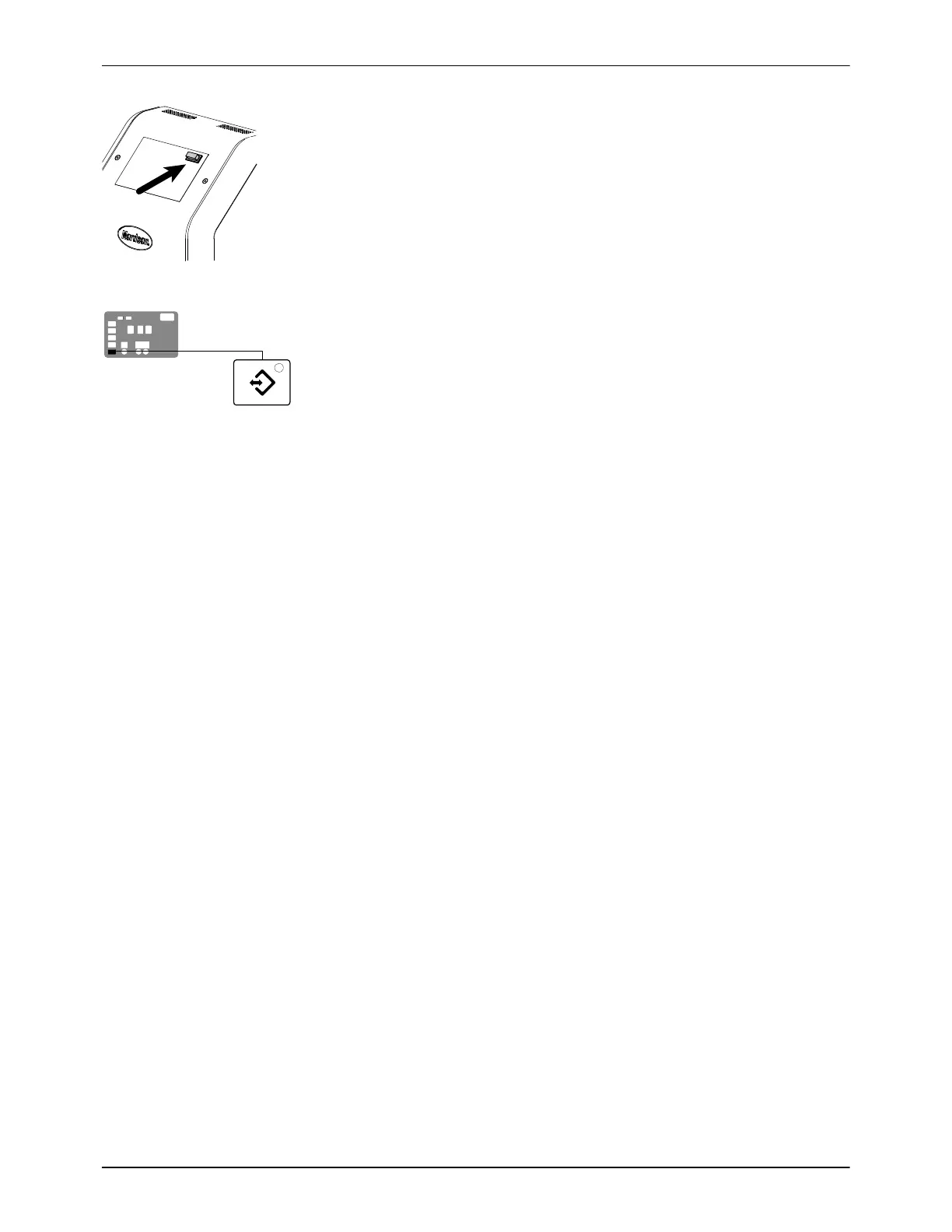

Control switch (on/off)
Setup key
Installation
3-15
Part 1073401_07
E 2021 Nordson Corporation
To read or edit a parameter
1. Switch the melter on.
The melter performs a start‐up check.
2. Press the Setup key.
The left display flashes parameter 1.
3. Use the left‐display scroll key to scroll to the desired parameter number.
Refer to Table 3‐6 for a complete list of parameters.
When you have finished entering the one‐ or two‐digit parameter number,
the right display indicates the parameter's current value.
4. Do one of the following:
S If the value is noneditable, refer to Monitoring the Melter in Section4,
Operation.
S If the value is editable go to step 5.
5. Press a right‐display scroll key.
The right display flashes.
6. Use the right‐display scroll keys to enter the desired numeric setpoint or
control option into the right display. Refer to Appendix B, Operating
Parameters, for information about the numeric value or control option
choices for each parameter.
7. Press the left‐display scroll key.
The melter checks that the new value or control option is acceptable.
S If the numeric setpoint or control option is accepted, the left and right
displays index to the next sequential parameter number and value.
S If the numeric setpoint or control option is not accepted, the right
display will indicate dashes (‐‐‐‐) for three seconds and then it will
change back to the original value.
8. Repeat step 5 through step 7 to read or change the next sequential
parameter number or press the Setup key to exit the setup mode.
