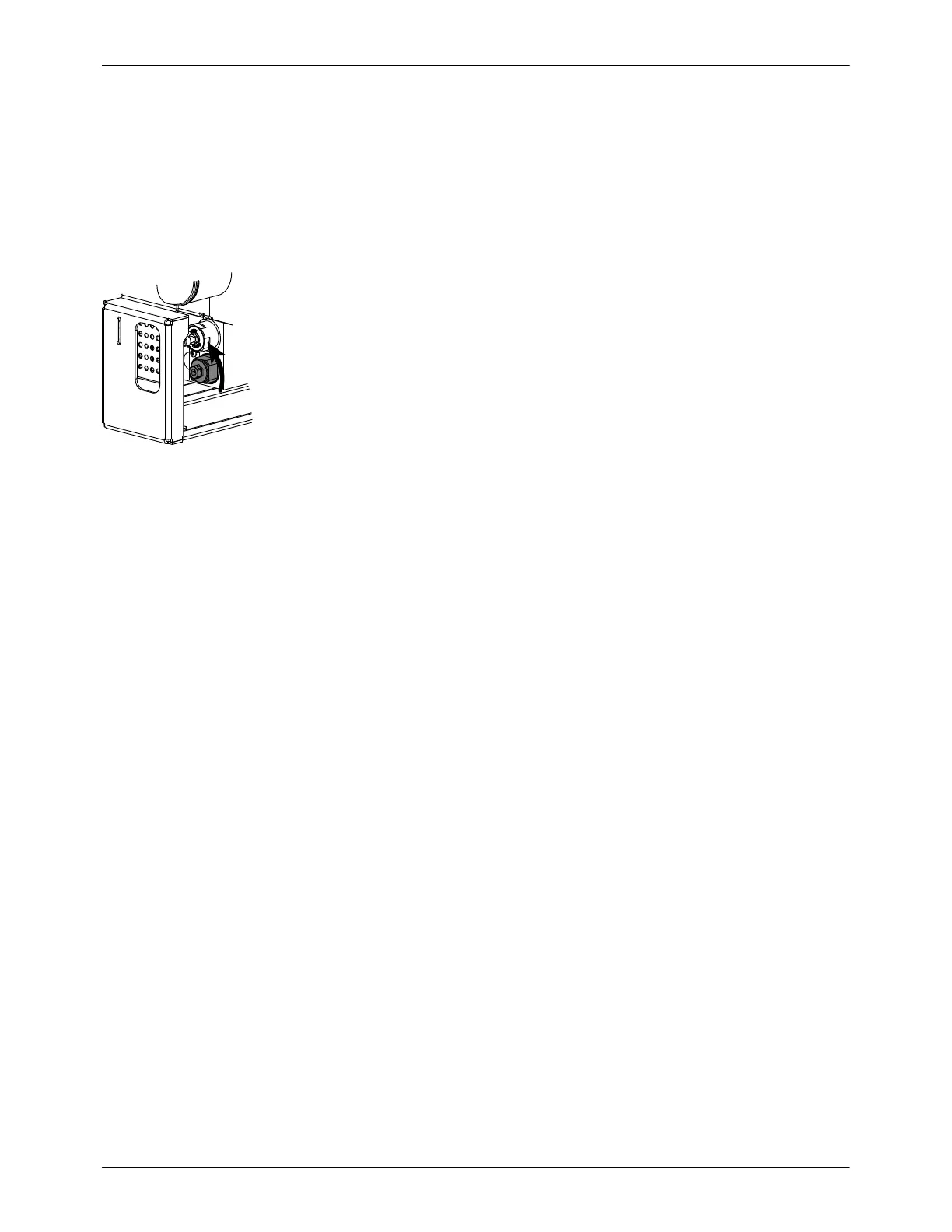

Loosening the filter
Maintenance
5-7
Part 1073401_07
E 2021 Nordson Corporation
To replace the filter
1. Relieve the system pressure. Refer to Relieving System Pressure at the
beginning of this section.
2. Use an 8 mm (
5
/
16
‐inch) hex‐head wrench or an adjustable wrench to
loosen (counterclockwise) and then remove the filter.
3. Properly dispose of the old filter.
4. Confirm that the O‐ring on the new filter is in good condition (100‐mesh
filter is P/N 1028305).
NOTE: 50‐ and 150‐mesh filters are also available (P/Ns 1021941 and
1034720).
5. Screw the filter into the pump body and then tighten the filter to
4.5 N•m (40 in.‐lb).
6. Resume normal operation.
