Spray Gun Repair
Item numbers in this section match the item numbers in the parts lists.
2 3 1 64 5
14
15
29
20
9
11
10
21
28
25
26
13
18
30
20A
20B
20C
16

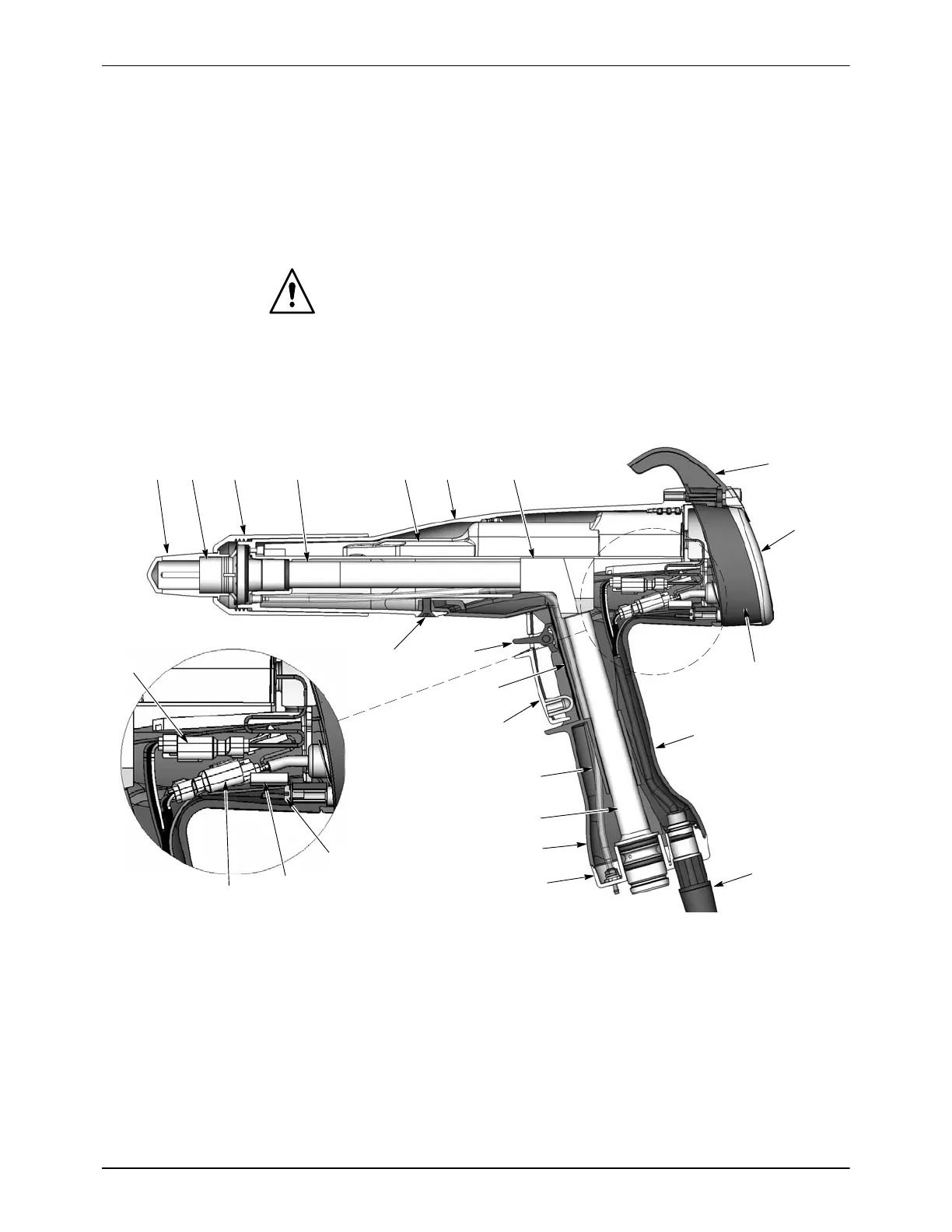

Figure 6-1 Section View of Spray Gun (item numbers in this section match item numbers in parts list)
1. Nozzle nut
2. Nozzle
3. Electrode assembly
4. Outlet tube
5. Elbow
6. Power supply
9. Display module
10. Hook
11 Bezel
13. Gun body
14. Air wash tubing
15. Trigger switch
16. Ground screw
18. Ground pad
20.Cable assembly
20A. Power supply connector (J2)
20B. Display connector (J3)
20C. Ground terminal (J1)
21. Handle base
25. Inlet tube
26. Handle
28. Spray trigger
29. Settings/purge trigger
30. Screw (handle to gun body)
Note: Ground terminal (20C) must always be connected to the ground screw (16).
