Conical Nozzle, Deflectors and Electrode Assembly Parts
See Figures 7-6, 7-7, and 7-8. The conical nozzle and deflectors must be
used with the conical electrode holder. A conical nozzle kit is shipped with
the gun. All other parts are optional and must be ordered separately.
Conical Nozzle and Deflectors
1082060
Conical Nozzle
1083201
16-mm Deflector
1083205
19-mm Deflector
1083206
26-mm Deflector
1083207
38-mm Deflector
All deflectors include a 1098306 O-ring, Viton, 3 mm x 1.1 mm wide

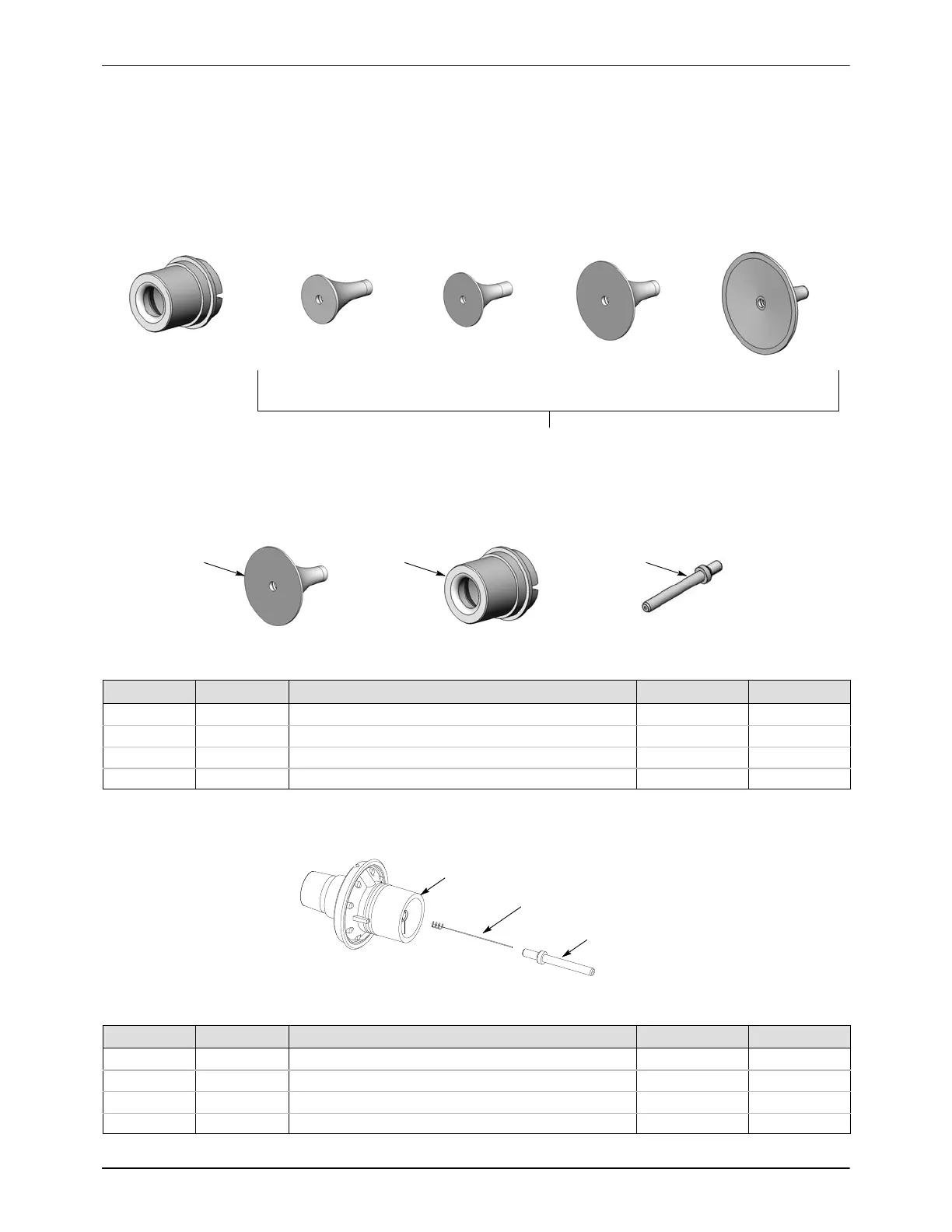

Figure 7-6 Conical Nozzle and Deflectors
Conical Nozzle Kit
1 2 3
Figure 7-7 Conical Nozzle Kit
Item Part Description Quantity Note
— 1604828 KIT, conical nozzle, Encore 1
1 1083206
S DEFLECTOR, 26 mm
1
2 1082060
S NOZZLE, conical
1
3 1605861
S ELECTRODE HOLDER, Conical
1
Conical Electrode Assembly
1
2
3
Figure 7-8 Conical Electrode Assembly
Item Part Description Quantity Note
— 1106076 ELECTRODE ASSEMBLY, conical, Encore 1
1 −−−−−−
S ELECTRODE SUPPORT
1
2 1106078
S ELECTRODE
1
3 1605861
S ELECTRODE HOLDER, Conical
1
