Repair
6-4
Part 1603227-12
E 2016 Nordson Corporation
Gun Disassembly (contd)
30

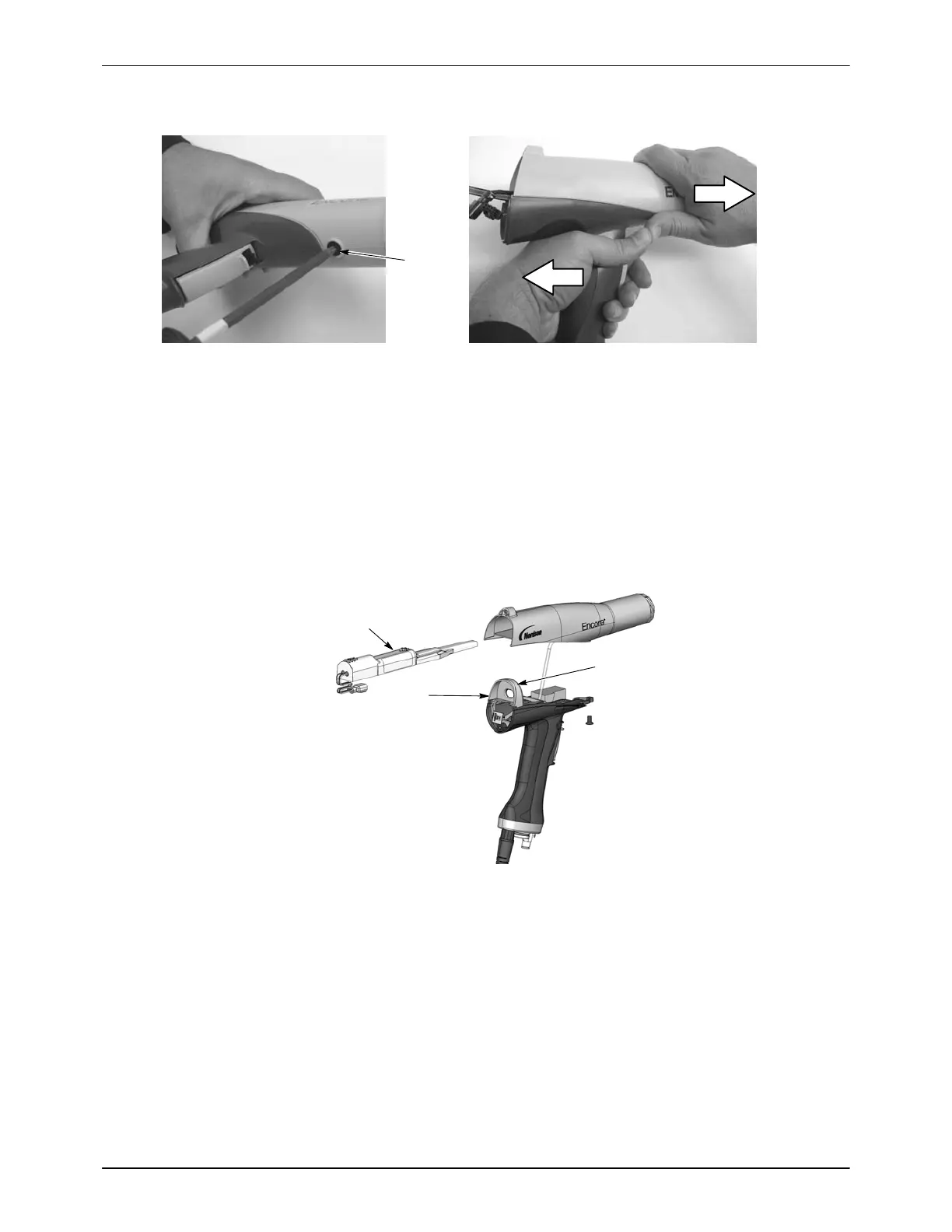

Figure 6-3 Removing the Gun Body from the Handle
Power Supply Replacement
NOTE: If replacing the powder path, skip this procedure.
1. See Figure 6-4. Slide the power supply (6) out of the gun body.
2. Check the gasket (7) on the back of the bulkhead (8). Replace it if it is
damaged. The gasket is stuck to the bulkhead with pressure-sensitive
adhesive.
6
7
8
Figure 6-4 Removing the Power Supply from the Gun Body
3. Slide the new power supply into the upper cavity of the gun body,
guiding the gun body ribs between the raised grooves on the top of the
power supply.
4. Press on the end of the power supply to ensure that the power supply
contact tip is firmly seated against the brass contact inside the gun body.
5. Route the power supply harness connector through the top hole in the
bulkhead.
To Next Page
