iTRAX Remote Display
3
Part 1076079A
E 2007 Nordson Corporation
Installation
Remote
Display
PRx
Module
RS485
RS485
Pressure
Controller
24 Vdc
Power
Supply
24 Vdc
24 Vdc
24 Vdc
Power
Supply
Remote
Display
Spray
Monitors
1
23
4
CAN
24 Vdc

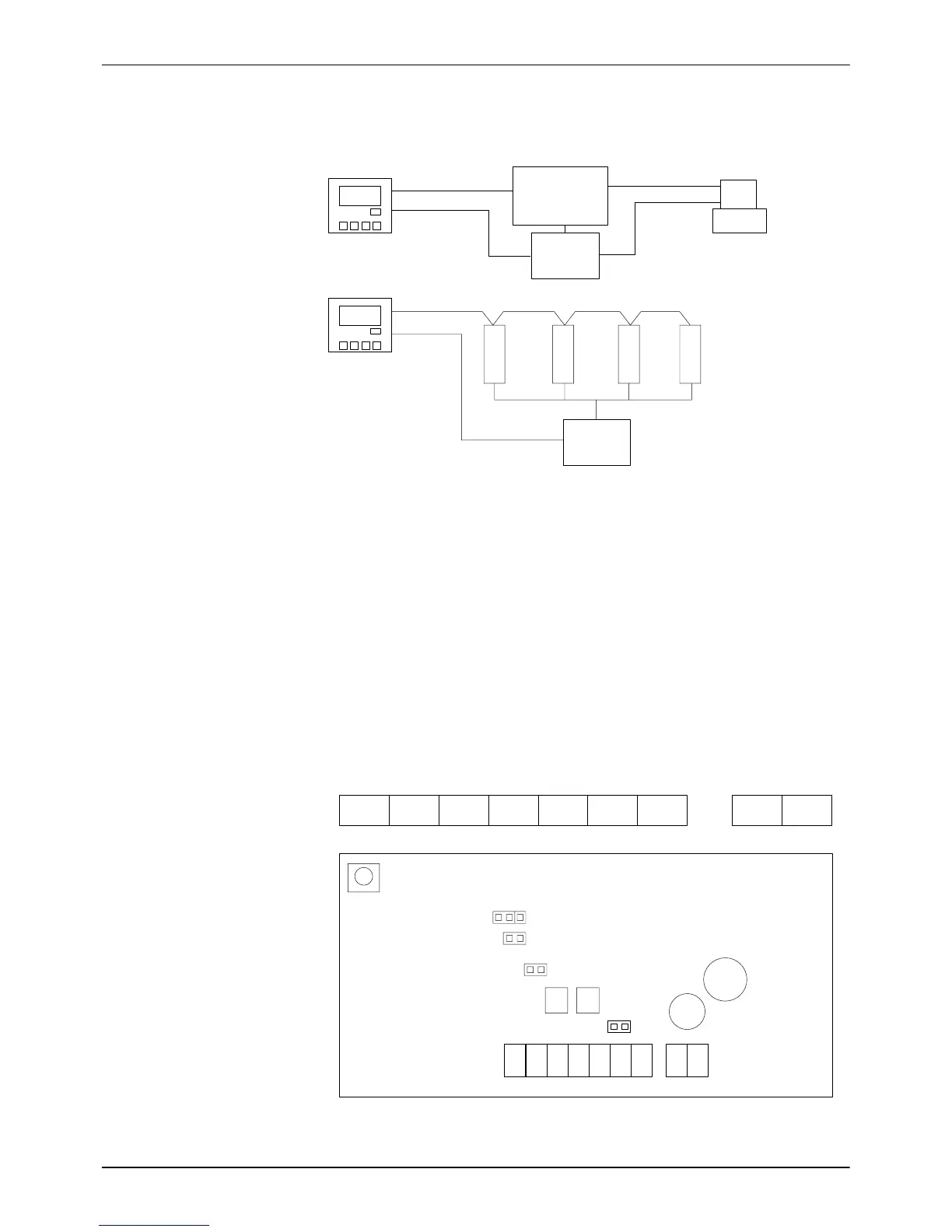

Figure 2 Remote Display Connections: PRx Module or Spray Monitors
Mount the Remote Display in a suitable location where it is visible to the
coating line operators.
Remove the rear panel. One knockout is provided on the rear panel. If
using two cables for “daisy chaining” a Remote Display in the center of a
series of modules, then you must punch another hole in the enclosure.
Cord grips or conduit fittings are recommended but not provided.
A connection diagram is printed on the inside on the panel. The diagram is
reproduced below. Make connections to the terminal block plugs and set
the jumpers as required for the application. Refer to Tables 1 and 2 for
connections and jumper functions.
121234567
P1P2
24VGND
C_HSHDC_LTXRX-SHDTXRX+OUT
11
P1P2
JP3
JP1
123456712
Figure 3 Remote Display Connections
