14
3 AMP
FUSE
COMPRESSOR
OUTDOOR
FAN MOTOR
BLOWER
MOTOR
DUAL
CAPACITOR
S
R
C
L2 L1
T2 T1
COMPRESSOR
CONTACTOR
24V
COM
HIGH PRESSURE
SWITCH
240V
LOW
PRESSURE
SWITCH
(SELECT
MODELS
ONLY)
S
R
C
N
G
L
C
5
4
3
2
1
9
8
7
6
5
4
3
2
1
9
8
7
6
COM NO
NC
THERMOSTAT
THERMOSTAT
F
H
C
LOAD RELAY
TRANSFORMER
BLUE
ORANGE
RED
BLACK
BLACK
YELLOW
THERMOSTAT
YELLOW
YELLOW/BLACK
YELLOW
YELLOW/BLACK
YELLOW
1. Couper le courant avant de faire letretien.
2. Employez uniquement des conducteurs en cuivre.
3. Ne convient pas aux installations de plus de 150 V a la terre.
FIELD WIRING
LEGEND:
LOW VOLTAGE
HIGH VOLTAGE
Packaged Air Conditioner - Single Phase
NOTES:
1. Disconnect all power before servicing.
2. For supply connections use copper conductors only.
3. Not suitable on systems that exceed 150 V to ground.
4. For replacement wires use conductors suitable for 105° C.
5. See installation instructions for blower motor airflow settings
YELLOW
RED
GREEN
BROWN
ORANGE
RED
RED
RED
RED
RED
BLACK
BLACK
BLACK
WHITE
WHITE
WHITE
WHITE
ORANGE
GREEN/YELLOW
GREY
BLUE
YELLOW
RED
WD # 7108060

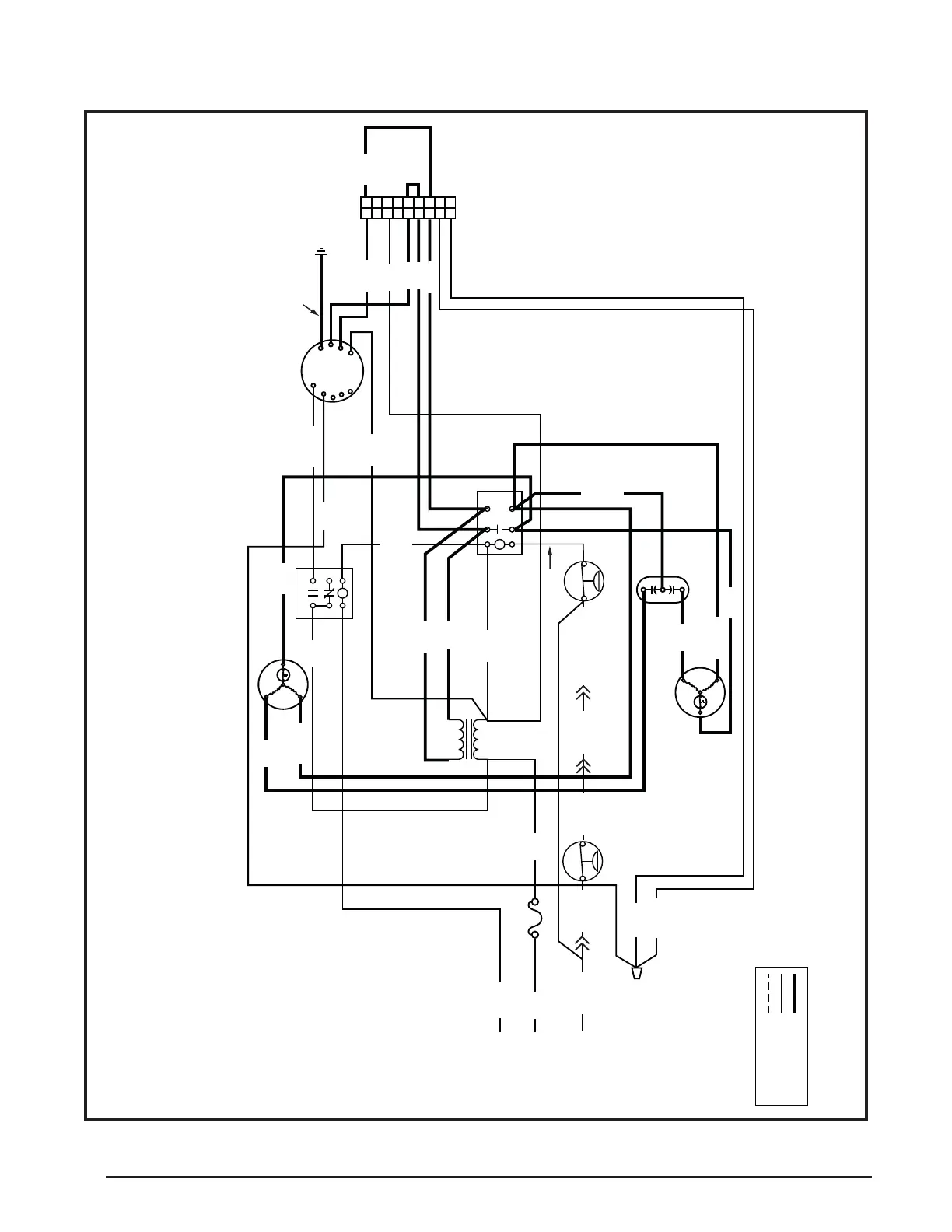

Figure 11. Wiring Diagram - P5RD with ECM Motor
