Nortel 5510 - General SFP Specifications; 1000 BASE-T SFP Specifications

24 SFP specifications

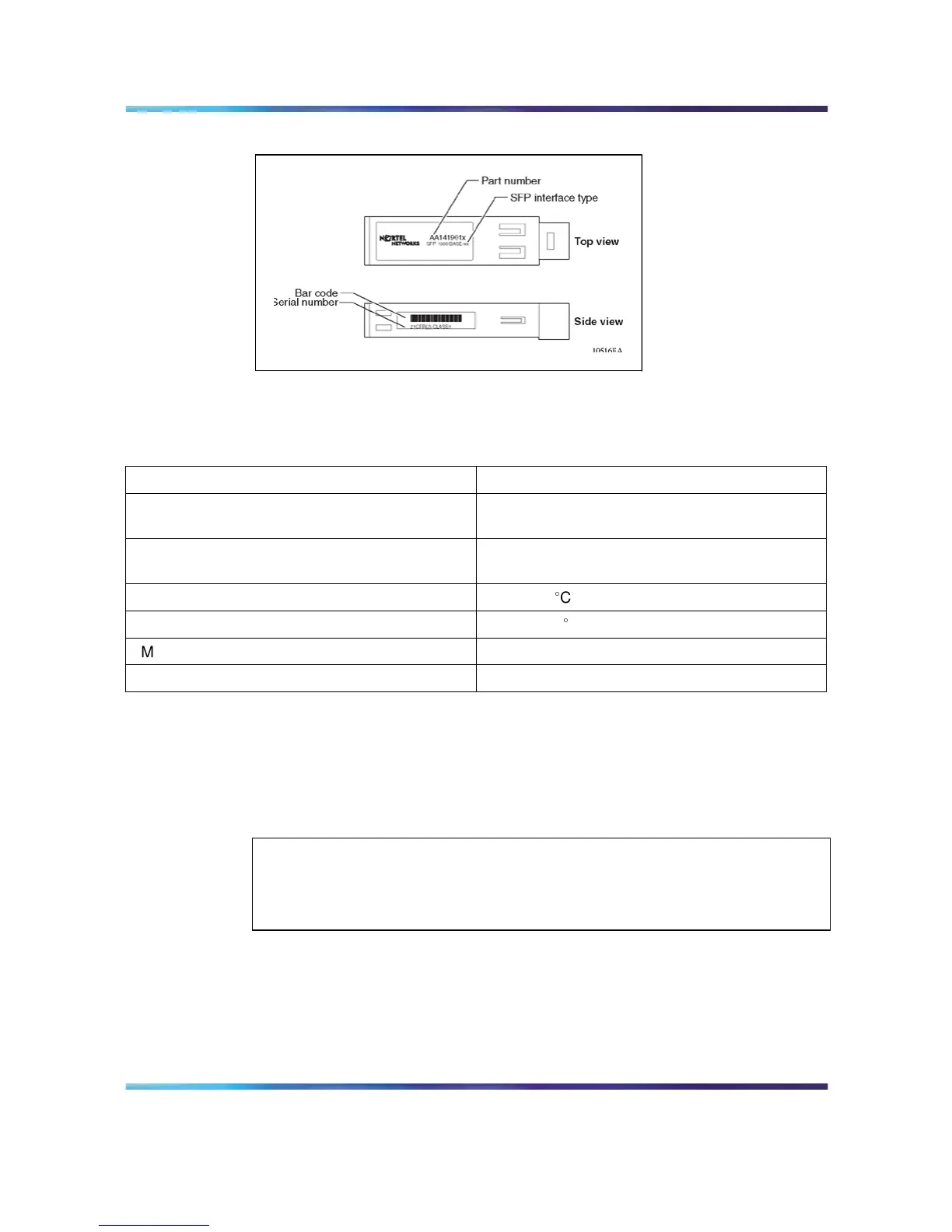

SFP label
General SFP specifications
The following table describes general SFP specifications.
General SFP specifications
Parameter Description
Dimensions (H x W x D) for non-DDI SFPs 0.53 x 0.33 x 2.22 inches (in.)
13.4 x 8.50 x 56.4 millimeters (mm)
Dimensions (H x W x D) for DDI SFPs 0.457 x .604 x 2.18 in.
11.6 x 15.3 x 55.43 mm
Operating temperature
-5 to +85

C
Storage temperature
-40 to +85

C
Maximum supply current 300 mA unless otherwise stated
Maximum power consumption 1.0 W unless otherwise stated
1000BASE-T SFP specifications
The 1000BASE-T SFP provides Gigabit Ethernet connectivity using a single
eight-pin RJ-45 connector. The 1000BASE-T SFP only operates at 1 gigabit
per second (1 Gbit/s) and does not support 100BASE-T or 10BASE-T
interfaces. The part number for this model is AA1419043-E6.
ATTENTION
You must disable autonegotiation before operating the 1000BASE-T SFP.
By default, SFPs inserted into certain product-specific modules are set for
Autonegotiation = True.
The maximum current requirement of the SFP is 375 milliamperes (mA) at
5 volts (V).
