NorthStar EXPLORER 550 - 3-2 Chart Display

Northstar EXPLORER 550/550i Installation and Operation Manual
18

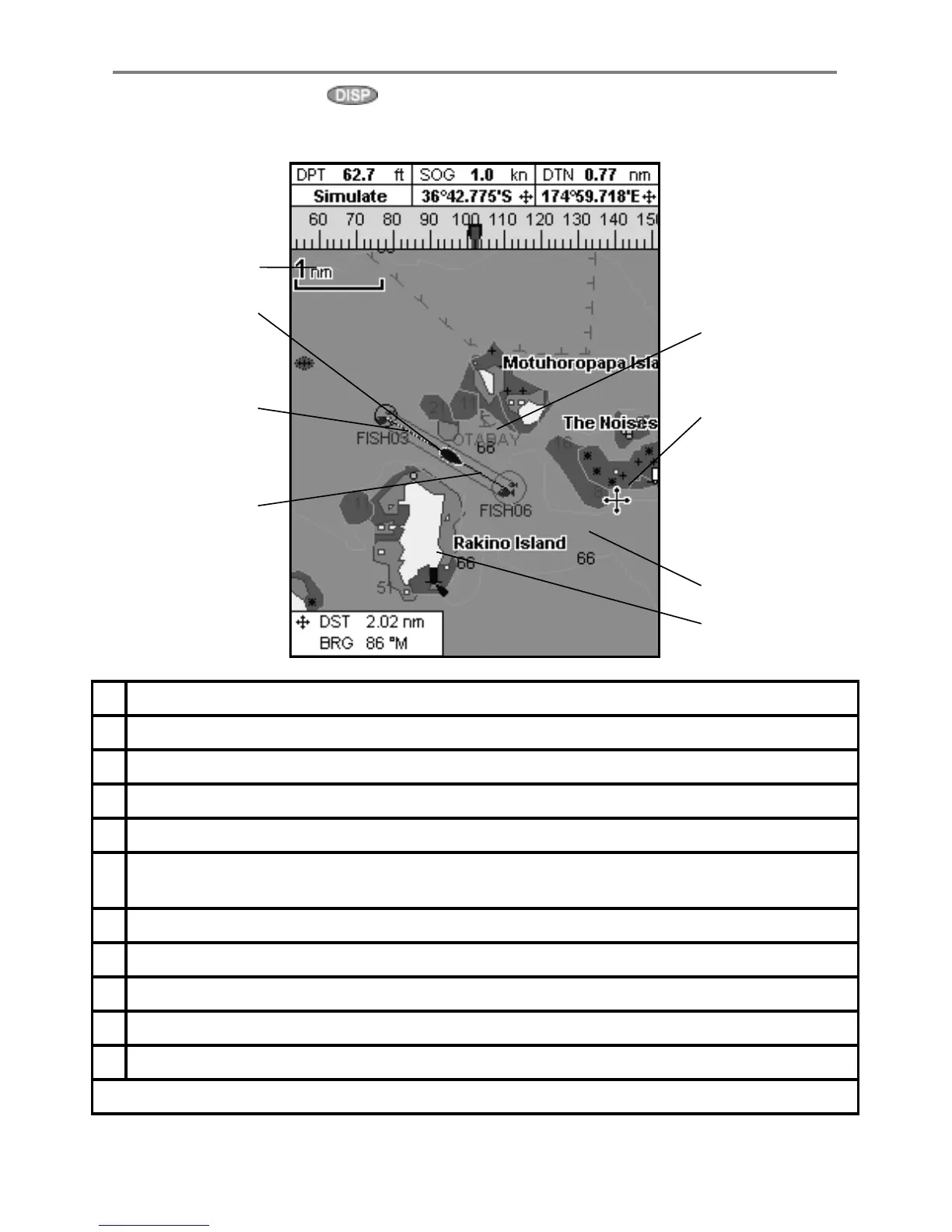

A typical chart display shows:
3-2 Chart display
To go to the Chart display, press , select Chart, then select Chart.
A Data header. To turn the data off or on or to change what data is displayed, see section 2-8-2
B Compass (see section 2-8-3)
C Chart scale (see section 3-2-3)
D Boat position (see section 3-2-1)
E Boat track (see section 3-5)
F Boat course and CDI lines (see Appendix C, CDI). The boat is going to the waypoint called FISH06
G Distance and bearing of cursor from boat
HLand
ISea
J The cursor (see section 3-2-1)
K A typical waypoint (see section 5)
Note: To change the types of information displayed on the chart, see section 17-2.
A
D
E
B
F
J
H
I
G
K
C
