Operation Instruction
18

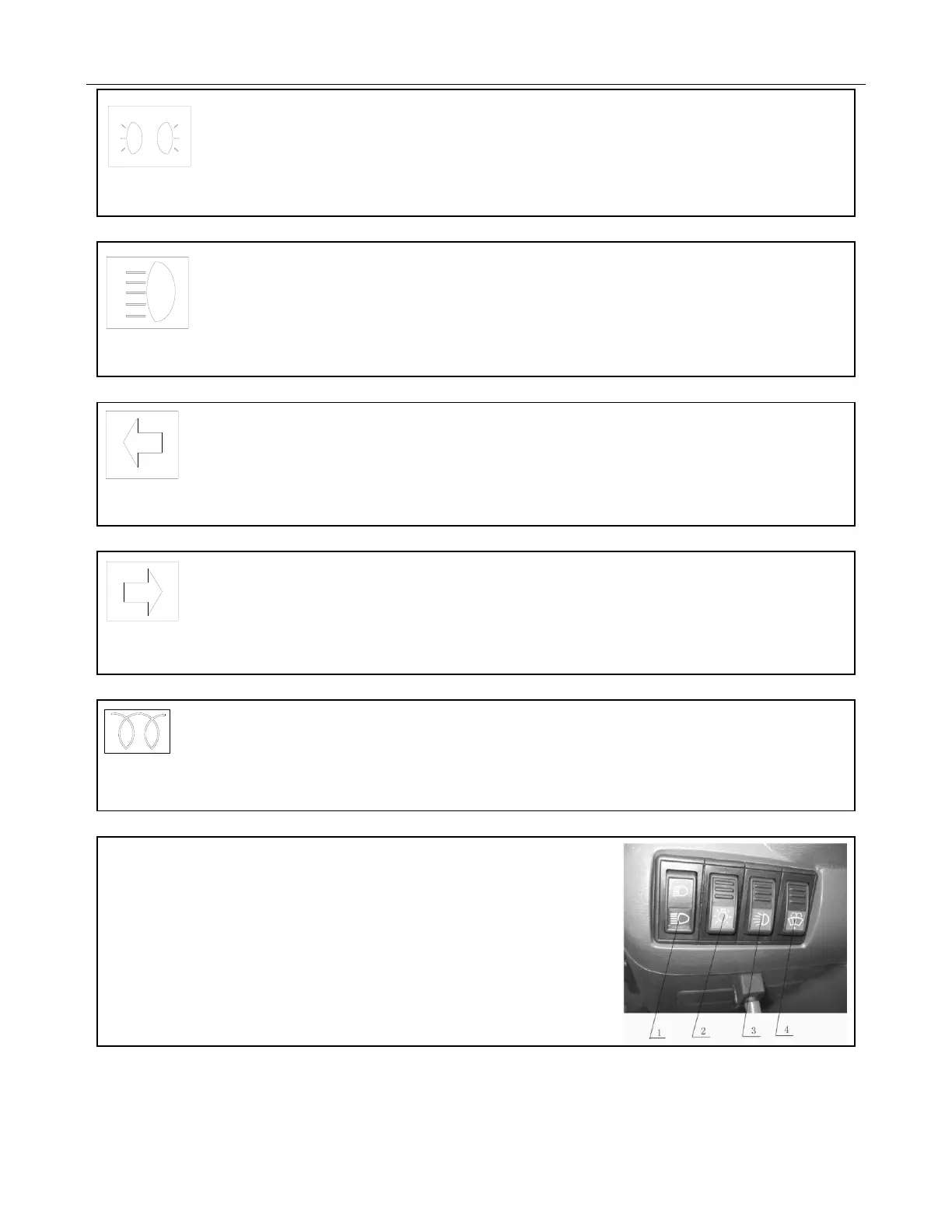

Position Indicator (Green)
When the tractor is run on the road at night and it needs to be parked, in order to ensure your
safety and warn other drivers, the position indicator lamps should be turned on. Switch the
position indicator to the ―1‖ position (figure 2-21) and the indicator will be illuminated.
Figure 2-9 Position Indicator Lamp
Front Light High Beam Indicator (Blue)
When the light switch is in the ―2‖ position (figure 2-16) and the dimmer switch is in the
2 position (figure 2-15), this control panel light is illuminated, indicating that the head light
is on high beam.
Figure 2-10 Head Light High Beam Indicator Lamp
Left-Turn Indicator (Green)
When the tractor is turning left and the left turn signal is on, the left indicator light should be
illuminated and blinking.
Figure 2-11 Left-Turn Indictor Lamp
Right-Turn Indicator (Green)
When the tractor is turning right and the right turn signal is on, the right indicator should be
illuminated and blinking.
Figure 2-12 Right-Turn Indictor Lamp
Preheater Indictor (Yellow)
When the tractor is preheating, the preheater indicator lamp is illuminated.
Figure 2-13 Preheater Indicator Lamp
Left Rocker Switch Combination
1. Dimmer switch.
2. Light switch.
3. Roof/rear light switches.
4. Front windshield wiper switch.
Figure 2-14 Left Rocker Switch Combination
