Headlight Dimmer Switch
―1‖ Position: Headlights are on low beam.
―0‖ Position: Spare.
―2‖ Position: Headlights are on high beam when headlight switch is in ―2‖ Position
This switch works with the headlight/taillight switch. The headlights must be turned
on before they can be set to high beam.

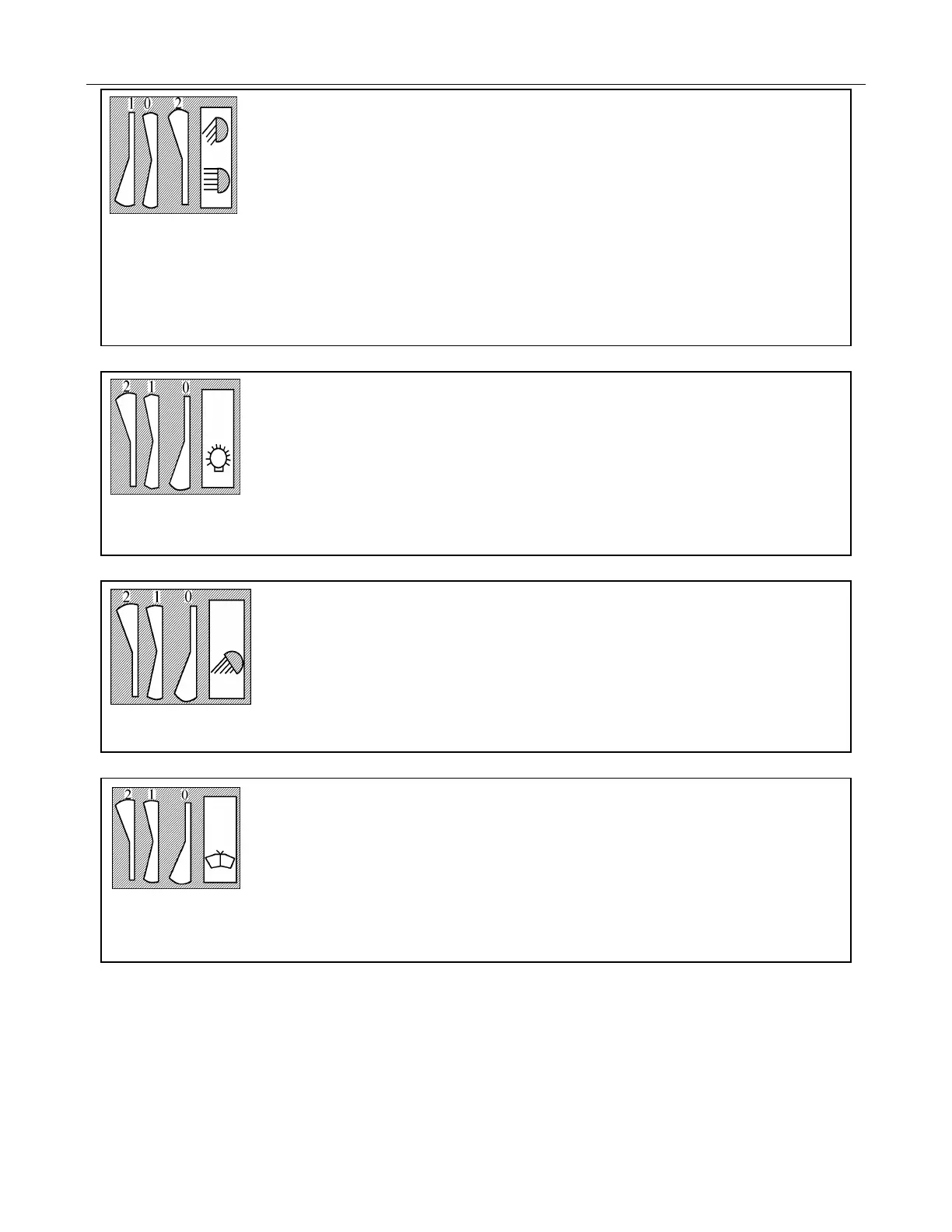

Figure 2-15 High/Low Beam Switch
Headlight/Taillight Switch
―2‖ Position: Turns on high beam headlights if dimmer switch is set to ―2‖ Position.
―1‖ Position: Turns on taillights and low beam headlights.
―0‖ Position: Turns off headlights and taillights.
Figure 2-16 Headlight/Taillight Switch
Upper and Lower Work Lights Switch
―2‖ Position: Upper front and rear and lower rear work lights are on.
―1‖ Position: Upper front and rear work lights on (if there is a cab).
―0‖ Position: Lights off.
Figure 2-17 Upper and Lower Work Lights Switch
Front Windshield Wiper Switch
―2‖ Position: High speed wipers.
―1‖ Position: Low speed wipers.
―0‖ Position: Wipers off.
Figure 2-18 Front Windshield Wiper Switch
