When using the hydraulic output, the farm implement should be in the lift position, if the lower speed
adjustment valve (B) is closed and the oil in the tank can not return. The farm implement should be locked in
the transport position and the adjustment valve can act as the hydraulic lock.
WARNING: When transporting implements in the raised position over long distances, the hydraulic
lock should be used to lock the implements in place. This will prevent an accidental move of the distributor
control handle from making the farm implements drop suddenly and cause damage.

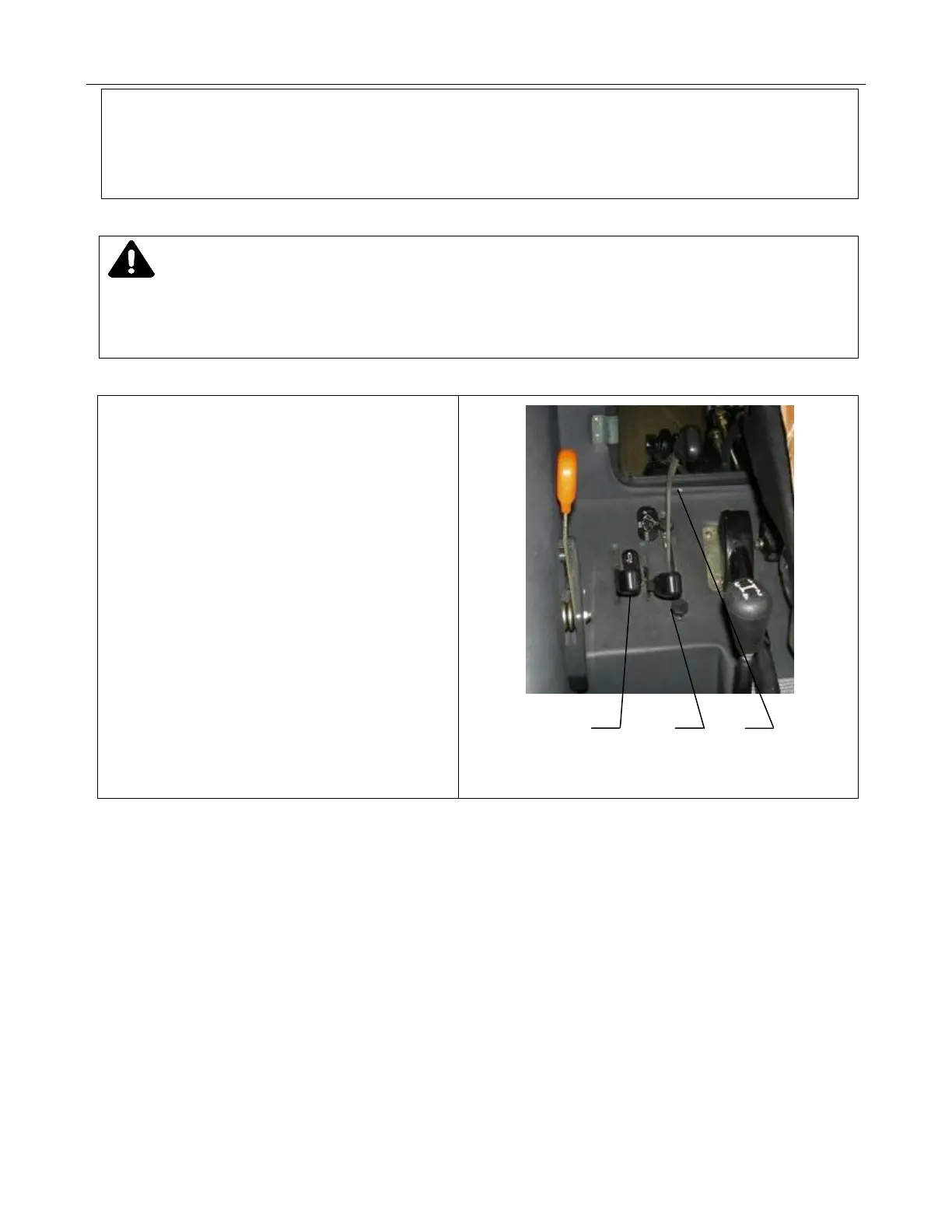

2.16.4 Hydraulic Control Levers
There are three levers that control the hydraulic
system for farm implements towed by the tractor.
Control lever C controls the first hydraulic
control loop (quick disconnects A1 and B1).
Control lever D controls the second hydraulic
control loop (quick disconnects A2 and B2).
Control Lever E is the 3-point control lever.
C D E
Figure 2-37 Hydraulic Control Levers
.
