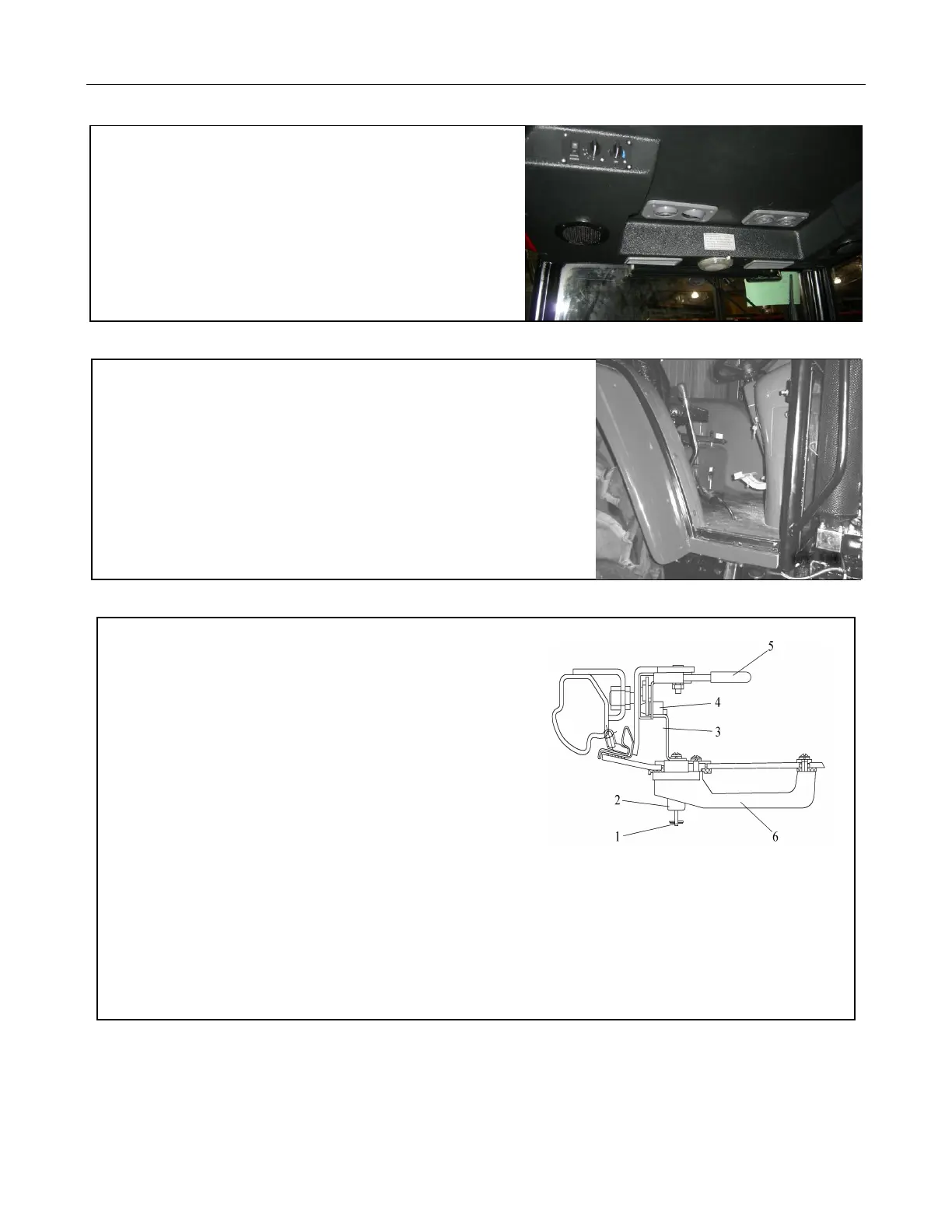

The cab interior includes the fenders, the floor mat,
the instrumentation console and the roof lining, etc,
as shown in Figure 2-46.
Figure 2-48 Cab Interior
The door frame has a profiled bar. The inside is glazed with
monoblock curved glass, which fits seamlessly with the
steamlined cab design. It accentuates the comfortable driving
space, while greatly improving the styling of the entire tractor.
Rotate the key 90 degrees clockwise to unlock the door.
After removing the key, grab the doorknob,
use the the thumb to push the compression
element (1). At the same time, pull the
knob outward and the door will open.
When closing the door, lock the door in the reverse order.
Figure 2-49 Cab Door Lock
1. Door key 2. Door lock 3. Push rod
4. Locking plate 5. Unlocking handle
6. Door handle
