Operation Instruction
44

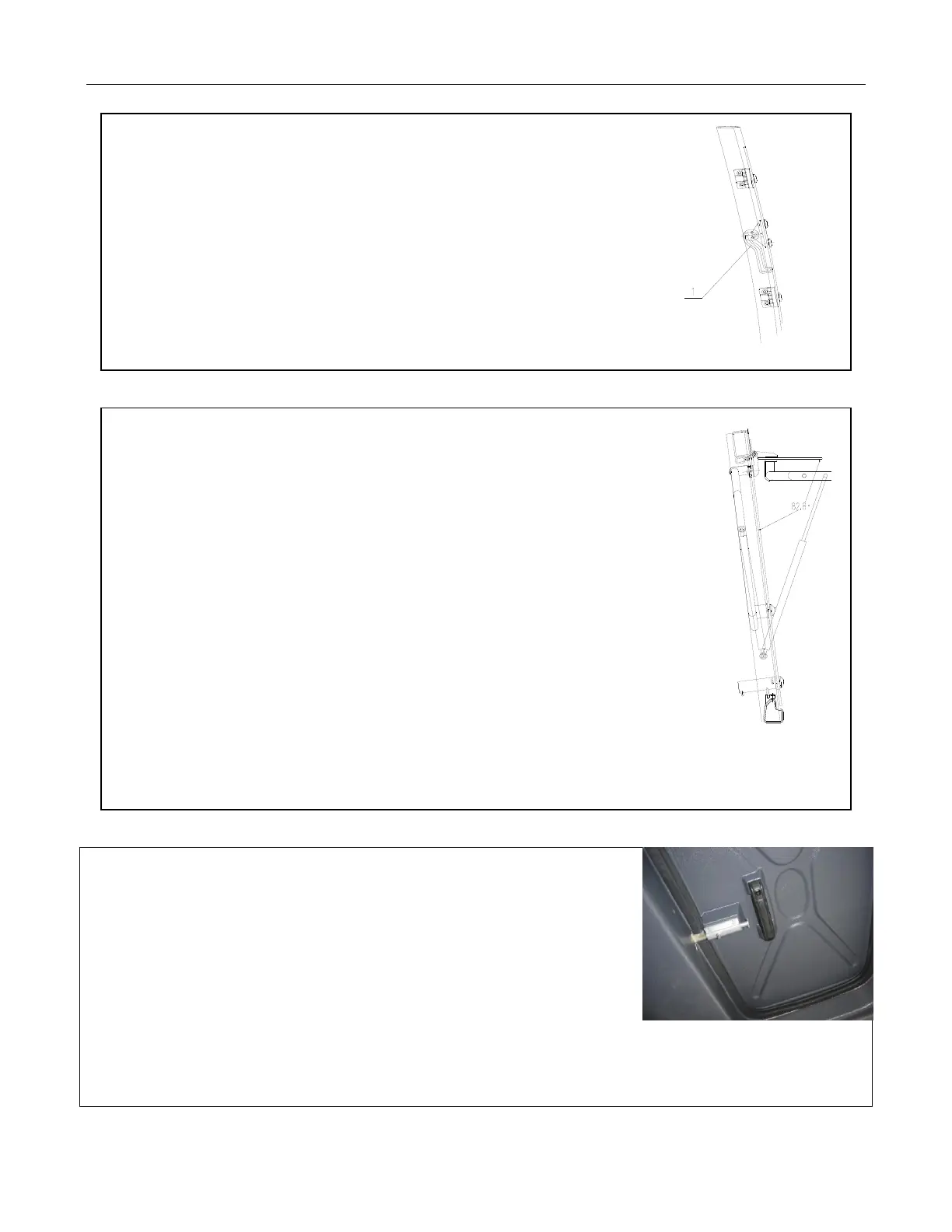

2.17.7 Left/Right Window
When opening, lift the locking handle and push it outward simultaneously.
The maximum distance that the side window can open is the effective length of the
locking handle.
Figure 2-50 Left/Right Window (1), Locking Handle
2.17.8 Rear Window
The rear window has an upper semi-automatic opening; the opening status is divided
into normal status and maximum status.
Normal status: rotate the handle (1) When the front part of the handle protrudes out
of the slot, push the handle (1) until the bulge on the rear of the handle reaches the
slot. Rotate the handle (1) again to make rear bulge slide into the slot which opens
the rear window open.
When closing, follow the steps in the reverse order.
Maximus status：rotate the handle. When the bulge of the front part slides out of
the handle, push the handle outward until it releases the tension of the gas springs.
The gas springs will change from pull to push and the rear window will
automatically open. When closing, follow the steps in reverse order. Figure 2-51 Rear Window
2.17.9 Roof Hatch
The roof hatch is made of fiberglass reinforced plastic. When opening,
hold the handle and at the same time, press the compression head of
the roof window lock with your thumb. The lock will spring
open automatically. Push the roof window outward gently, with
the help of the gas springs. When closing, operate in reverse order.
Figure 2-52 Roof Hatch
with Latch
