AFP-200 Instruction PN 15511:F2 10/11/99 15

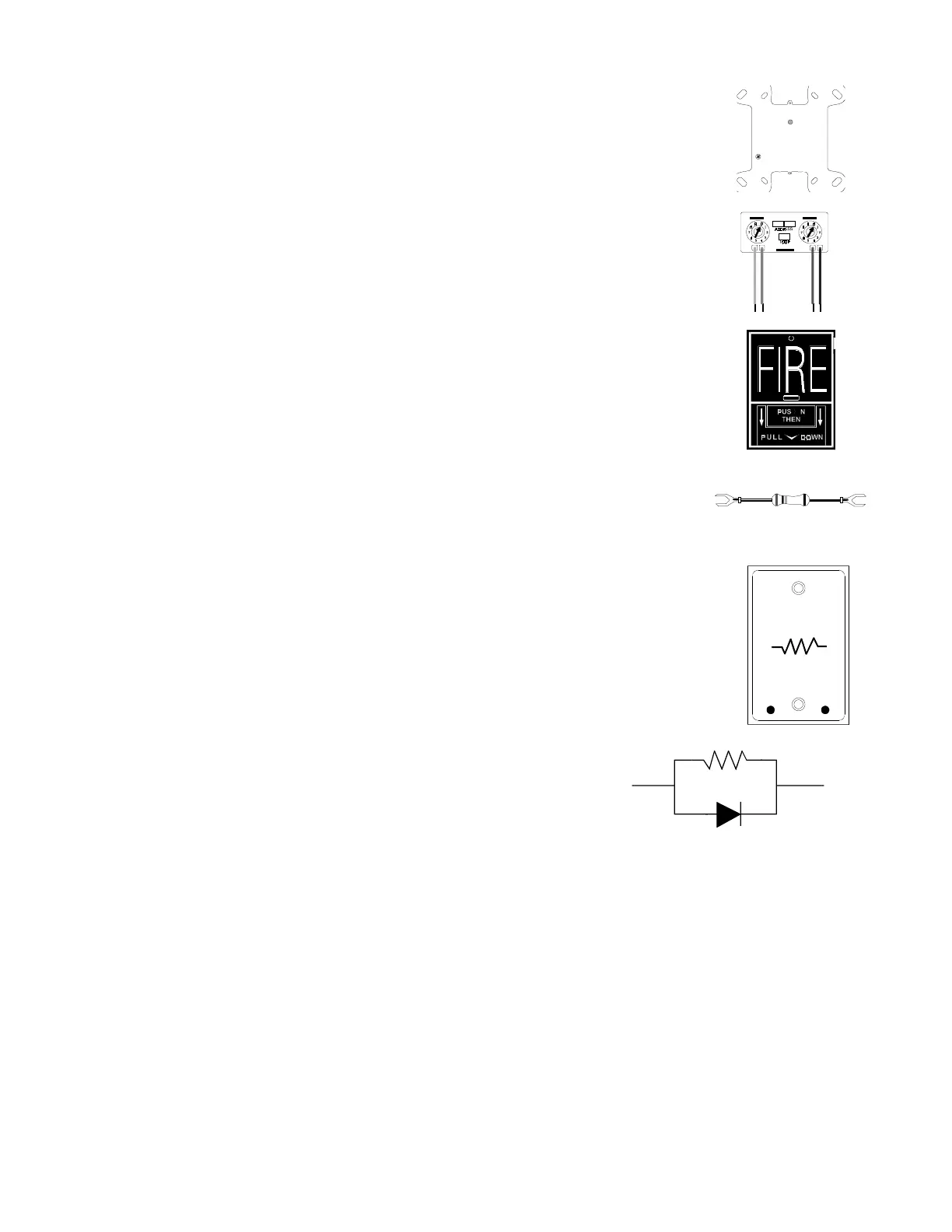

ISO-X
The ISO-X Loop Isolator Module is an automatic switch which opens the circuit
voltage to a communications loop branch whenever a fault is detected on that circuit.
The remainder of the communications loop leading up to the ISO-X will continue to
operate, unaffected by the fault.
MMX-101
The MMX-101 Addressable Module is functionally similar to an MMX-1 Monitor
Module (Style B circuits only), but offered in a smaller package for mounting directly
in the electrical box of the device being monitored. It does not include a blinking
LED or a magnetic test switch.
BGX-101L
An Addressable Manual Pull Station featuring a key-lock reset. The pull station
responds to an address set by the installer with built-in rotary decimal switches and
includes a key.
1.7.6 Other Optional Devices
System Sensor (SSD) A2143-00
The 47K End-Of-Line Resistor Assembly is used in the supervision of MMX-1 or
MMX-101 Monitor and CMX Control Module circuits and is included with each
module. Note: MMX-2 Monitor Module requires a UL-listed 3.9K ELR.
N-ELR
The N-ELR Resistor Assortment is required for use in Canada. Resistors can be
used for the supervision of an MMX Monitor Module or CMX Control Module
circuit.
N-ARA-10 Agent Release Pull Station
Refer to Document 15453 for more information.
REL-4.7K for use with panel outputs
REL-47K for use with CMX modules
Polarizing devices used in conjunction with releasing circuits.
