16 AFP-200 Instruction PN 15511:F2 10/11/99

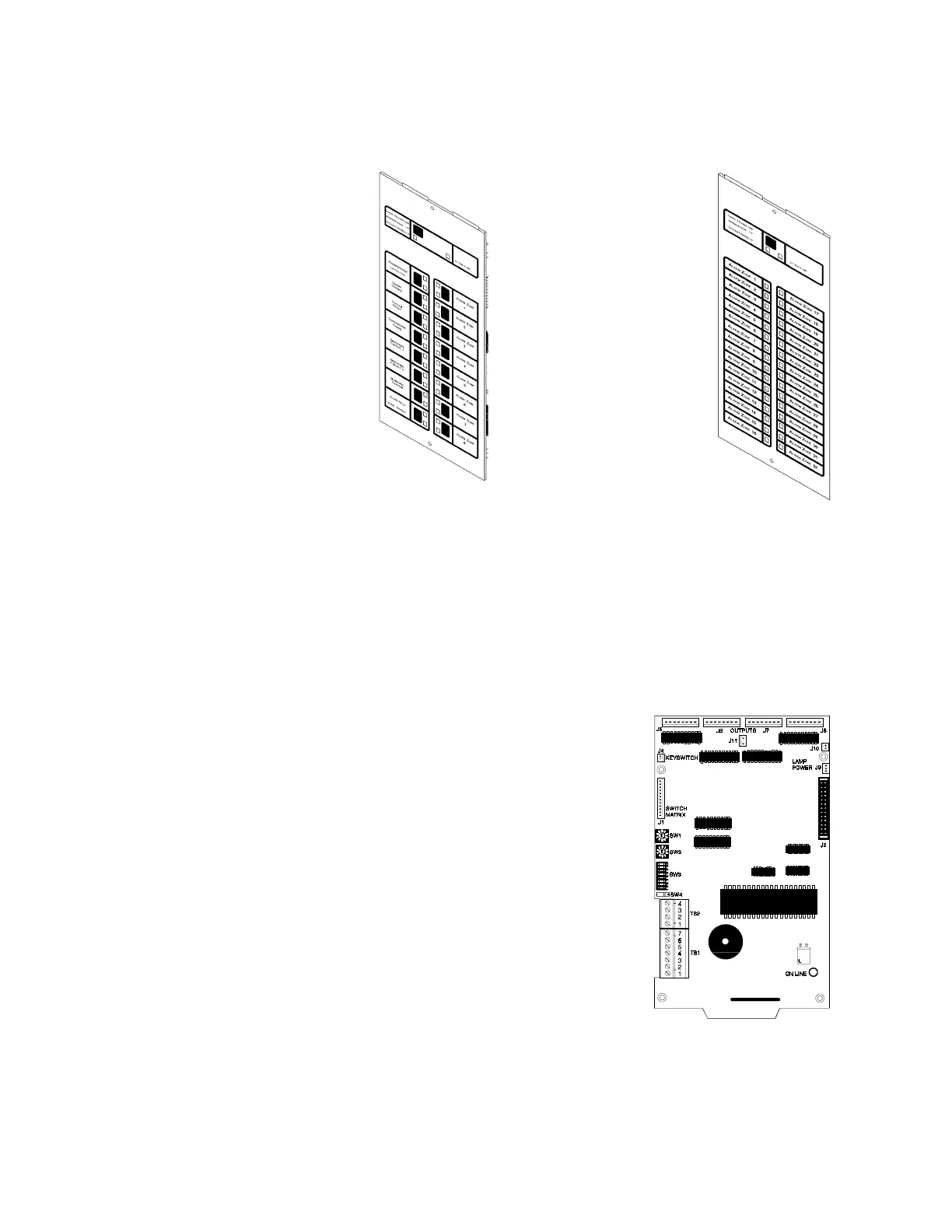

ACM-16AT/AFM-16AT
The Annunciator Control Module-
16AT or AFM-16AT contains 16
red alarm and 16 yellow trouble
LEDs, a system trouble LED, an
ON LINE/POWER LED, and a
local piezo sounder with switches
for control panel ACKNOWL-
EDGE, SILENCE, RESET, and
DRILL. The AFM-16AT is fixed at
address “1,” and will not accept
expanders.
AEM-16AT
The Annunciator Expander Module-
16AT expands the ACM-16AT by 16
system points. The ACM-16AT supports up to
three expanders, providing a maximum of 64 points
of annunciation.
AFM-16A
The Annunciator Fixed Module-16A is intended for
use in systems that require 16 annunciation points
or less. Multiple annunciators may be used by
setting all annunciators to Receive Only, except the
last AFM-16A in line. Each annunciator's address
is internally fixed at “1.”
The ACM-32A/AFM-32A
The Annunciator Control
Module-32A/AFM-32A
contains 32 red alarm LEDs, a
system trouble LED, an ON
LINE/POWER LED, and a
local piezo sounder with a
silence/acknowledge switch.
The AFM-32A is fixed at
address “1,” and will not
accept expanders.
AEM-32A
The Annunciator Expander
Module-32A expands the
ACM-32A by 32 system points.
The AEM-32A is identical in frontal
appearance to the ACM-32A. One
expander module can be supported by an
ACM-32A, providing a maximum of 64 points.
ACM-8R
The ACM-8R Annunciator Control Module
provides eight Form-C relays with 5 A contacts,
which can be used to track any group of eight zones
within the system.
1.7.7 Optional Devices Annunciators
This section contains brief descriptions of annunciators that can be used with the AFP-200. For detailed
information, refer to Appendix C and appropriate annunciator manuals for detailed wiring requirements.
The LDM-32
The LDM-32 Lamp Driver Annunciator Module provides 32 alarm lamp
driver outputs for connection to a custom graphic annunciator. The LDM-32
can be alternately selected via a DIP switch for 16 alarm, 16 trouble, and 16
switch inputs for control of such system functions as signal silence and system
reset.
The LDM-E32
The Lamp Driver Annunciator Expander Module LDM-E32 expands the
LDM-32 by 32 system points, to a maximum of 64 points total.
The LDM-R32
The LDM-R32 Relay Expander Module LDM-R32 provides the LDM-32 or
LDM-E32 with 32 dry Form-A (normally open) contacts.
