2. Installation
2.1 Installation Overview
Carefully unpack the AFP-200 system and check for shipping damage. Mount the cabinet in a clean, dry,
vibration-free area where extreme temperatures are not encountered. The area should be readily accessible with
sufficient room to easily install and maintain the control panel. Locate the top of the AFP-200 cabinet approxi-
mately 60 inches above the floor with the hinge mounting on the left. Determine the number of conductors
required for the devices to be installed. Pull the required conductors into the box through the knockouts
provided. All wiring should be in accordance with the national and/or local codes for fire alarm systems.
2.2 Backbox Mounting
1. Remove the main circuit board assembly by unscrewing the four screws in the corners of the board. Set the
board aside in a safe, clean place. Avoid static discharge which may damage the board.
2. Mark and predrill the four mounting bolts using dimensions shown in Figure 2.
3. Install two upper fasteners in wall with screw heads protruding.
4. Using upper “keyholes,” mount the backbox over the two screws. Tighten the screws.
5. Install the lower two screws.
6. When location is dry and free of construction dust, reinstall the main circuit board.

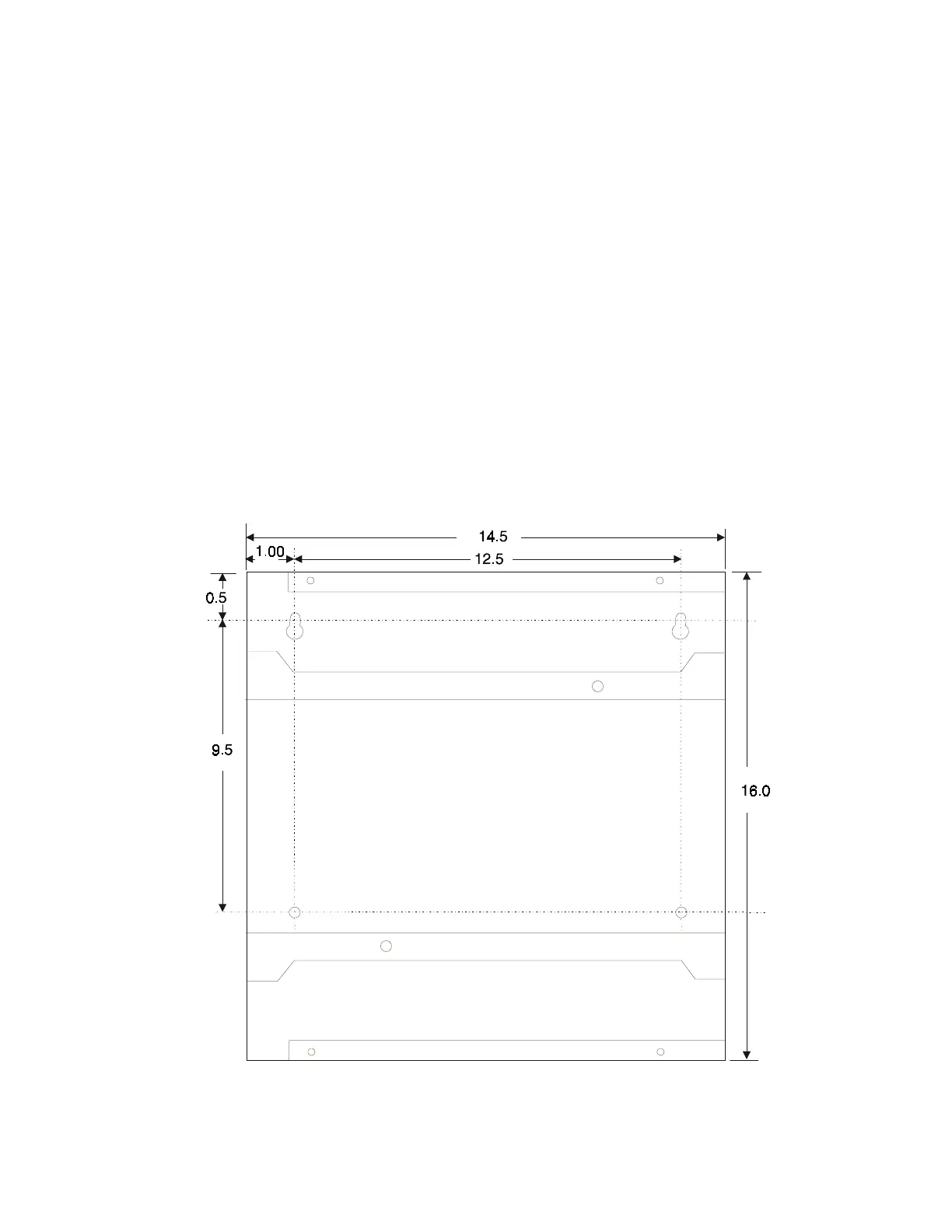

Figure 2-1 Cabinet Dimensions
