22 AFP-200 Instruction PN 15511:F2 10/11/99
AC Power connections
Primary power required for the AFP-200 is 120 VAC, 50/60 Hz, 3 A and primary power required for the
AFP-200E is 220/240 VAC, 50/60 Hz, 1.5 A. Overcurrent protection for this circuit must comply with Article
760 of the National Electrical Code (NEC) and/or local codes. Use 14 AWG or larger wire with 600 VAC
rating.
Battery Power
Observe polarity when connecting battery. Connect the battery cable to J3 on the main circuit board using the
plug-in connector provided. Refer to Appendix A for instructions on calculating the correct battery rating.
CAUTION: Battery contains sulfuric acid which can cause severe burns to the skin and eyes, and can destroy
fabrics. If contact is made with sulfuric acid, immediately flush skin or eyes with water for 15 minutes and seek
immediate medical attention.
AVPS-24/AVPS-24E Optional Power Expansion
(Refer to Appendix J)
2.3 Power

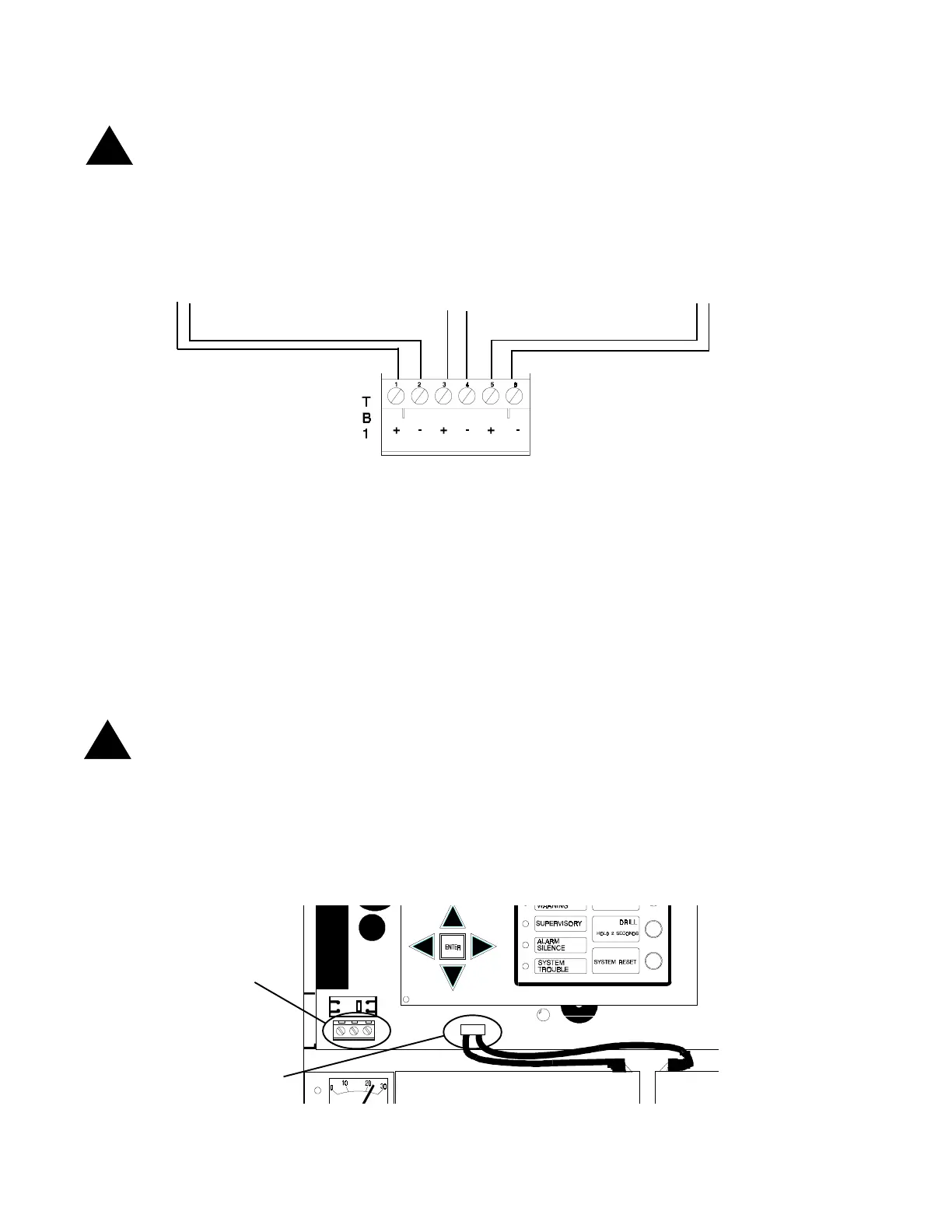

Figure 2-2 DC Power Output Connections
(All DC power outputs are power-limited)
Figure 2-3 AC and Battery Power Connections
CAUTION: Several different sources of power can be connected to the AFP-200. Disconnect all sources of
power before servicing. The control panel and associated equipment may be damaged by removing and/or
inserting cards, modules, or connecting cables while this control panel is energized.
Non-resettable Power
24 VDC filtered, regulated, non-
resettable power can be drawn
from TB1 terminals 3 (+) and 4 (-).
Four-wire Smoke Detector
Power 24 VDC filtered,
regulated, resettable power for
four-wire smoke detectors can be
obtained from TB1 terminals 5
(+) and 6 ().
High Ripple Regulated Power
24 VDC power for notification appliances.
TB1 terminal 1 (+) and 2 (). Note: This
power is unsuitable for all EIA-485
annunciation devices, except the ACM-8R.
Battery Power
AC Power
!
!
