AFP-200 Instruction PN 15511:F2 10/11/99 23
2.4 Output Circuits
Notification Appliance Circuits
The AFP-200 control panel provides four Notification Appliance Circuits (Style Y). Each circuit can supply up
to 2.5 A of current. Total current drawn from these as well as DC power outputs cannot exceed 5.0 A. An
additional 3.0 A are available when using an AVPS-24/AVPS-24E (see Appendix J). Use UL-listed 24 VDC
notification appliances only. Circuits are supervised and power-limited. Refer to the Device Compatibility
Document for a list of compatible notification appliances.
Releasing Circuits
Any or all of these circuits may be used as a releasing circuit by programming it for RELEASE CKT. Refer to
the Device Compatibility Document for a list of compatible releasing devices.

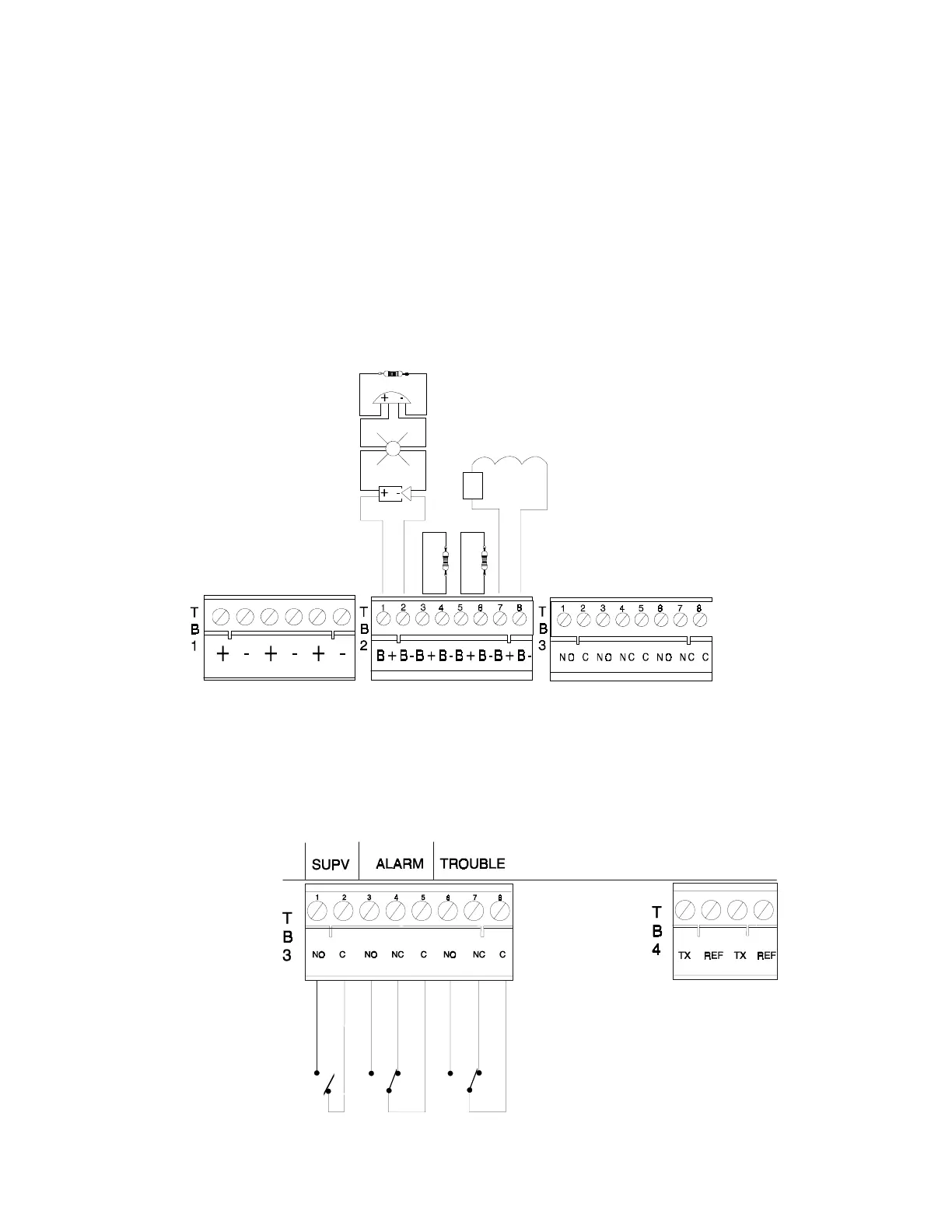

Figure 2-4 Circuit Connections
Figure 2.-5 Relay Connections
2.5 Standard Relays
The AFP-200 control panel provides a set of Form-C alarm and a set of Form-C trouble contacts rated for 2.0 A
@ 30 VDC (resistive). The control panel also provides a Form-A supervisory contact rated for 2.0 A @ 30 VDC
(resistive).
Note: Notification circuit polarity shown in
alarm state.
Polarized Bell
Polarized Strobe
Polarized Horn
+-
Releasing Circuit
(supervised and power-
limited)
Dummy Load all
unused Circuits
4.7K,1/2-Watt
Style Y
Notification Appliance Circuit
(supervised and power-limited)
4.7K, 1/2-Watt (PN 71252 UL-listed)
REL-4.7K
To Next Page
