Notifier AFP-200 User Manual

26 AFP-200 Instruction PN 15511:F2 10/11/99
CRT

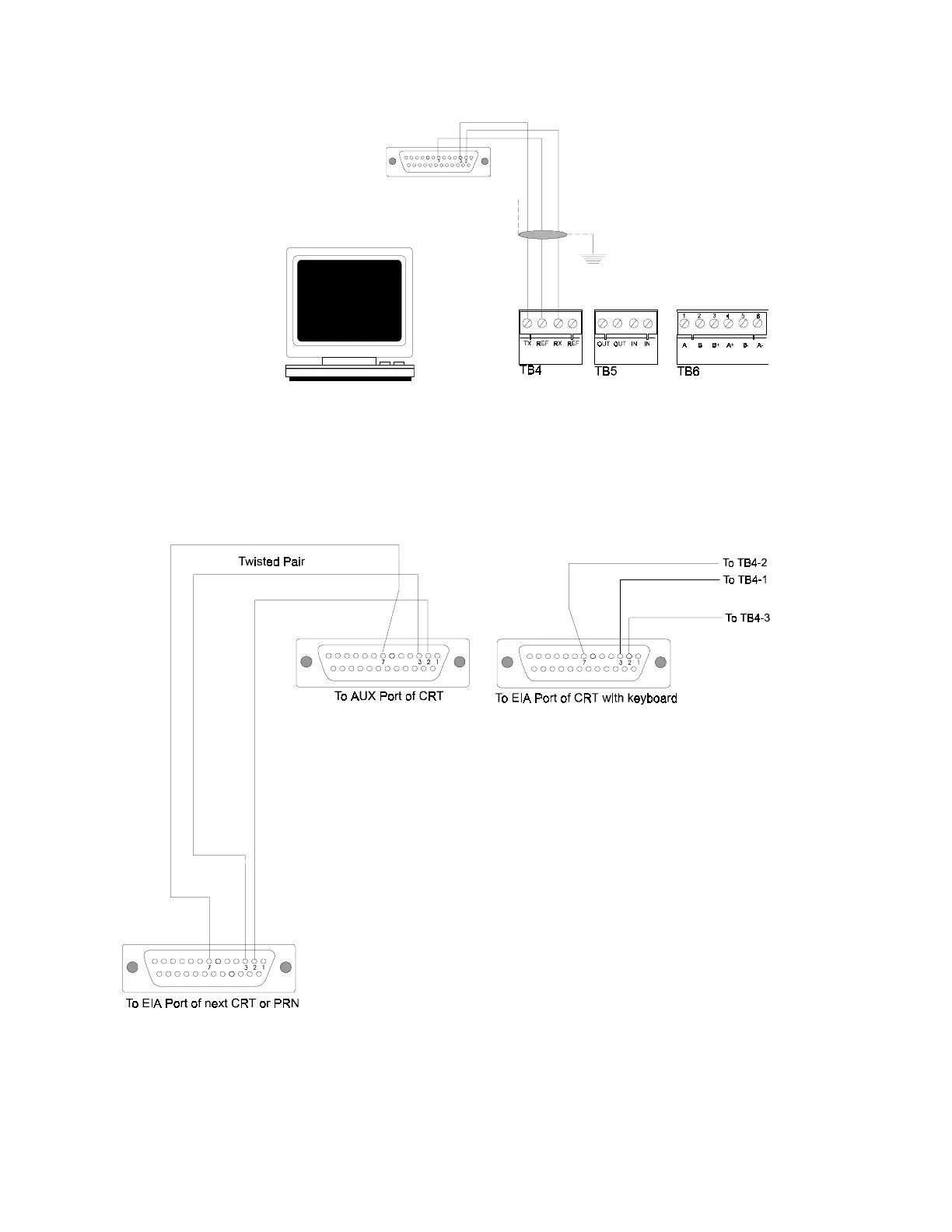

Figure 2-10 Connections For Multiple CRT units or CRT/PRN Combination
Connect TX (Pin 3) to TB4 terminal 1
Connect REF (Pin 7) to TB4 terminal 2
Connect RX (Pin 2) to TB4 terminal 3
Plug this DB-25 connector into
the EIA-232 port of the CRT.
Note: For terminal interface and protocol information, refer to Appendix I.
Note: This configuration requires that the copy
parameter of the CRT setup be changed to
BCOPY (Refer to CRT configuration in
Appendix I.)
Figure 2-9 CRT Connections
2.6 Remote Printers/CRT, continued

Notifier AFP-200 Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Auxiliary Power Output	24 VDC, 500 mA
Operating Temperature	32°F to 120°F (0°C to 49°C)
Display	80-character LCD
Power Supply	120 VAC, 60 Hz
Capacity	198 addressable devices
Notification Appliance Circuits	2
Relay Contacts	3 (Form-C)
Relative Humidity	93% non-condensing
