AFP-200 Instruction PN 15511:F2 10/11/99 25
Notes:
1) Outputs are power-limited, but are not supervised.
2 Connections must be made with overall foil/braided-shield twisted paired cable suitable for EIA-232
applications. Typically, 50 feet is the maximum recommended wiring distance between printer and control
panel.
3) The printer communicates using the following protocol:
Baud rate 2400
Parity Even
Data Bits Seven
4) Set the DIP switches as follows:
SP1-1: OFF SP1-2: ON SP1-3: OFF SP1-4: ON SP1-5: OFF
SP1-7: ON SP1-8: OFF SP2-1: OFF SP2-2: OFF SP2-3: OFF
SP2-4: OFF SP2-5: OFF SP2-7: ON SP2-8: OFF
Keltron Printer
Model number VS4095/5
(see note 3)
Plug this DB-25 connector into the
EIA-232 Port of the printer.
2.6 Remote Printers/CRT, continued

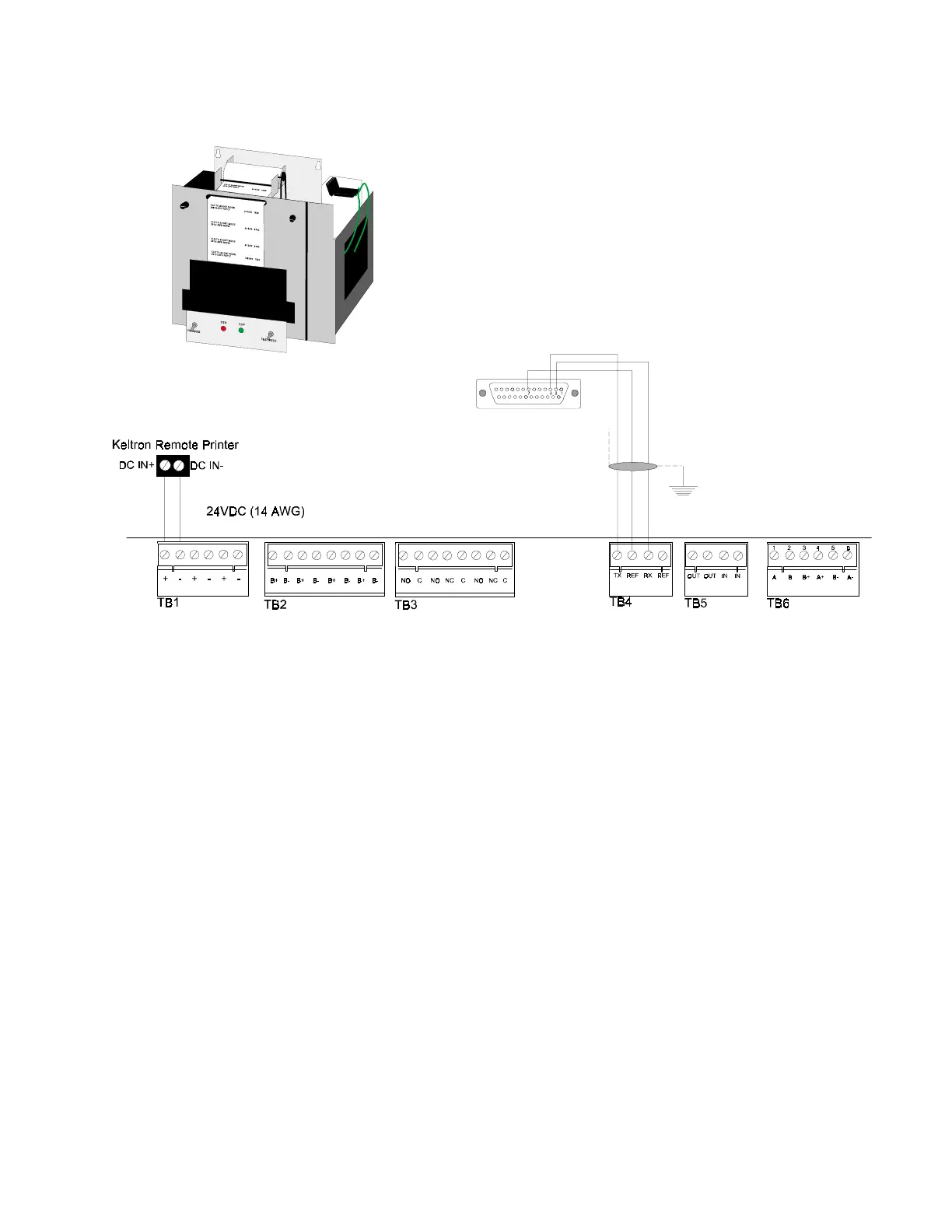

Figure 2-8 Keltron Printer Connections

Notifier AFP-200 Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Auxiliary Power Output	24 VDC, 500 mA
Operating Temperature	32°F to 120°F (0°C to 49°C)
Display	80-character LCD
Power Supply	120 VAC, 60 Hz
Capacity	198 addressable devices
Notification Appliance Circuits	2
Relay Contacts	3 (Form-C)
Relative Humidity	93% non-condensing
