AFP-200 Instruction PN 15511:F2 10/11/99 43

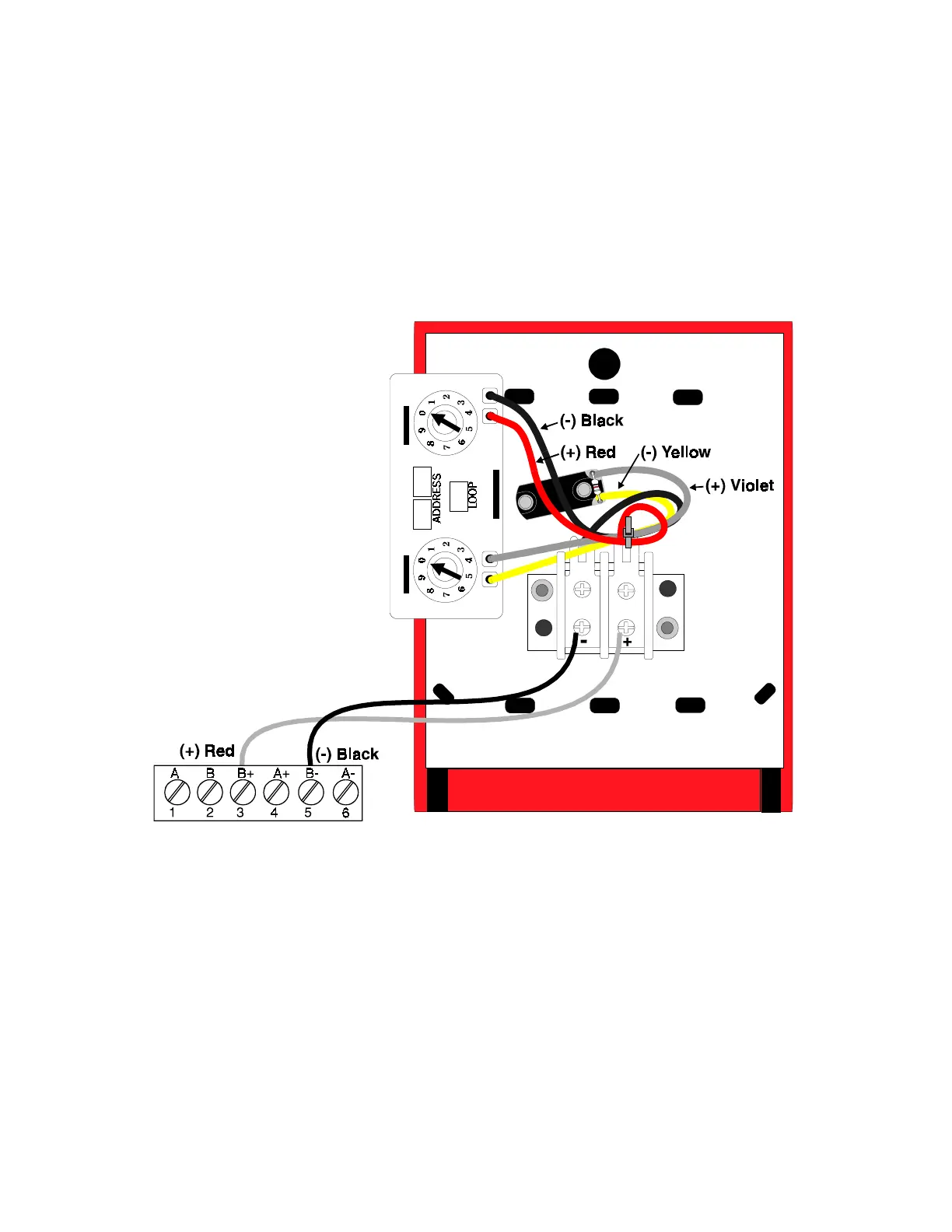

Figure 2-30 Wiring Addressable Manual Pull Stations
2.7.4 The Addressable Manual Pull Station
The BGX-101L is an addressable manual pull station with a key-lock reset feature.
Installation
1. Connect the communications loop to terminal screws (+) and (–).
2. The BGX-101L is factory preset with address 00. Set the address for the BGX-1010L by using a screw-
driver to turn the rotary address switches on the MMX-101 to the desired address settings.
BGX-101L (back view)
SLC (+) TB 6-3
SLC (–) TB 6-5

Notifier AFP-200 Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Auxiliary Power Output	24 VDC, 500 mA
Operating Temperature	32°F to 120°F (0°C to 49°C)
Display	80-character LCD
Power Supply	120 VAC, 60 Hz
Capacity	198 addressable devices
Notification Appliance Circuits	2
Relay Contacts	3 (Form-C)
Relative Humidity	93% non-condensing
