42 AFP-200 Instruction PN 15511:F2 10/11/99
24 V (+) TB1-1
24 V () TB 1-2
SLC (+) TB 6-3
SLC () TB 6-5
For a list of compatible notification appliances, reference the Device Compatibility Document.

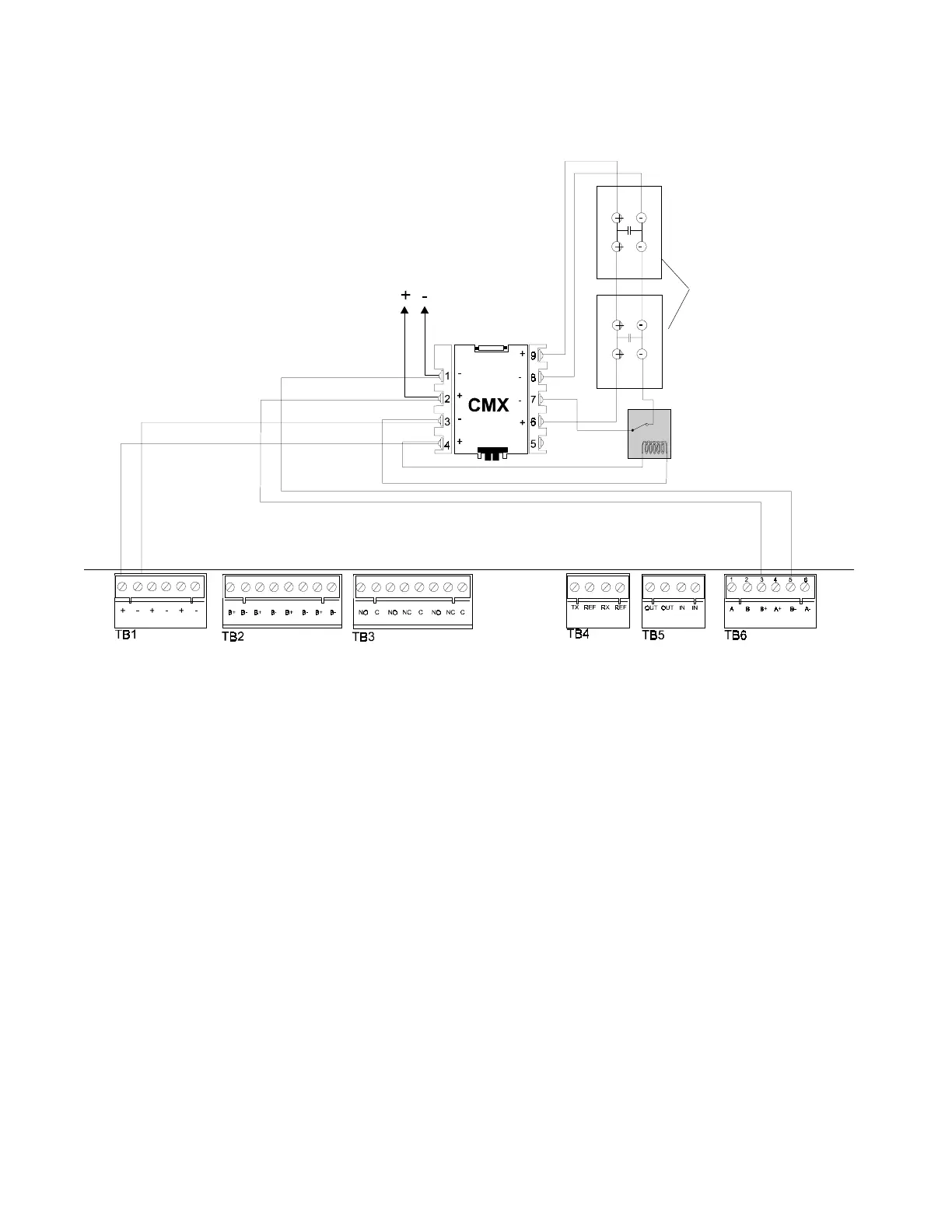

Figure 2-29 NFPA Style Z Notification Appliance Circuit
(All circuits are supervised and power-limited.)
24 VDC
Notification
Appliances
To next device
on Loop
LOOP OUT
Note: Do not loop wiring under any terminals. Break wire
run to maintain supervision.
UL-listed Power
Supervision Relay
2.7.3 The Control Module, continued

Notifier AFP-200 Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Auxiliary Power Output	24 VDC, 500 mA
Operating Temperature	32°F to 120°F (0°C to 49°C)
Display	80-character LCD
Power Supply	120 VAC, 60 Hz
Capacity	198 addressable devices
Notification Appliance Circuits	2
Relay Contacts	3 (Form-C)
Relative Humidity	93% non-condensing
