48 AFP-200 Instruction PN 15511:F2 10/11/99

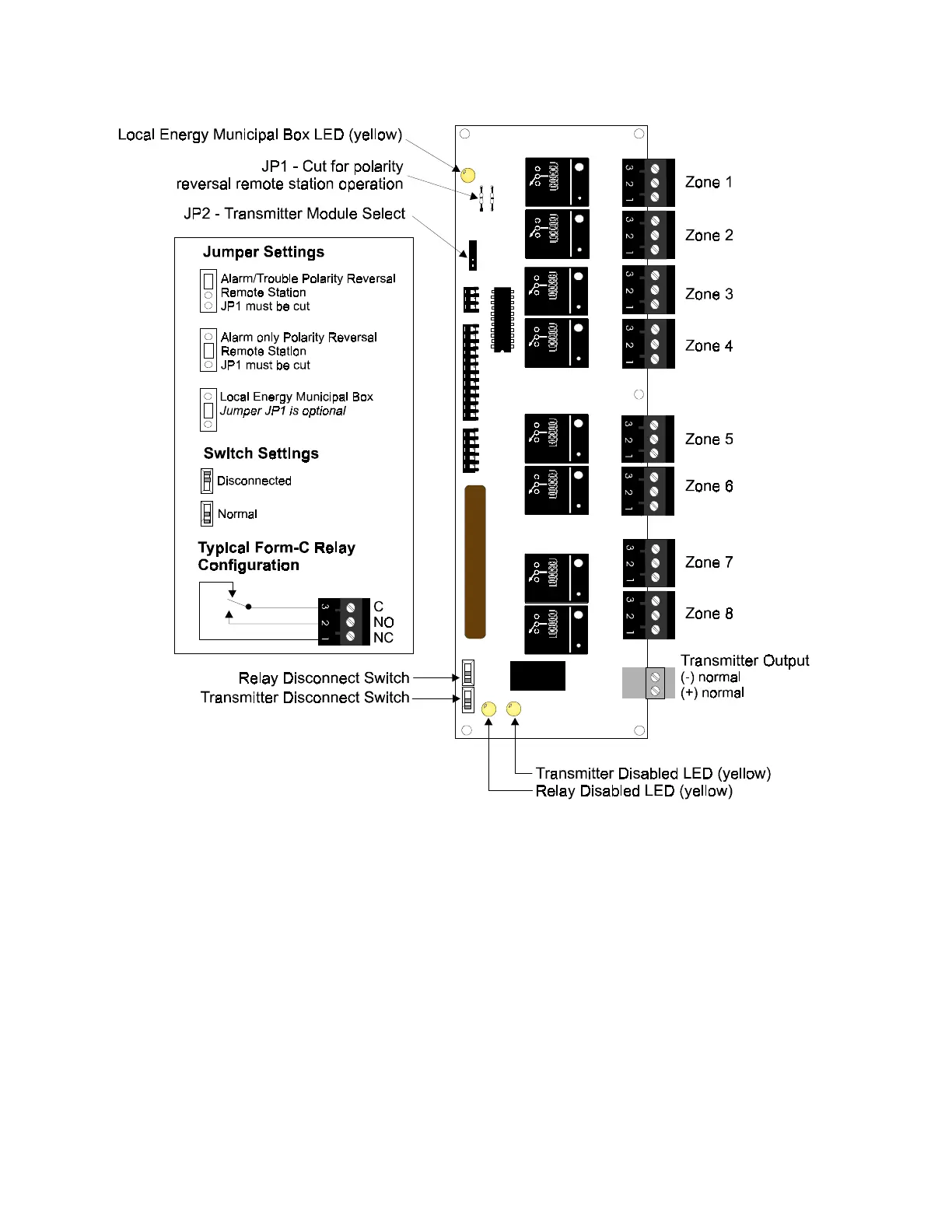

Figure 2-35 RTM-8 Relay Transmitter Module
Notes on the RTM-8
1. Zone Relay Contact Ratings – Maximum switched power: 170 W or 1800 VA. Maximum switched
current: 6 A. Maximum switched voltage: 30 VDC or 300 VAC. UL Rating: 6 A @ 28 VDC or 120/300
VAC. 1/8HP @120/240 VAC (100,000 CYC)1.5/0.8 A at 120/240 VAC, Pilot Duty 30,000 CYC. Contact
Material: Silver Nickel, gold-plated
2. Refer to the power-limited label located on the AFP-200 cabinet door. Make a notation on the label for
each circuit used as a nonpower-limited circuit. (Refer to the example on the label).
3. Polarity Reversal Output – 24 VDC (nominal), 10 mA maximum rated current. Internal resistance: 1200
ohms (nominal). Intended for connection to the polarity reversal circuit of a remote station receiving circuit
(Fire·Lite RS-82) having compatible ratings. The RTM-8 is not suitable for separate transmission of both
alarm and trouble signals to remote station. Output is power-limited. Wiring can exit the protected
premises.
4. Municipal Box output – Supervised for open circuit. Nonpower-limited. Maximum short current circuit:
0.6 A. Maximum open circuit voltage: 27.6 V. Maximum wire resistance: 3 ohms. Wiring can exit the
protected premises.
2.7.6 Optional Modules, continued
