AFP-200 Instruction PN 15511:F2 10/11/99 81
Remote Station Connection Using 4XTM Module
(polarity shown is for normal standby)
Remote Trouble
+ – + -+ – + -
+ – + -+ – + -
+ – + -
FireLite RS82 Remote Station Receiver
UL-listed. Refer to FireLite Alarms, Inc.,
Instruction Manual for Remote Station
Receiver Model RS-82
1
2
3
4
Remote Alarm
The NFPA Remote Station Fire Alarm System standard is intended for connection to a polarity reversal circuit
of a remote station receiving unit having compatible ratings. All connections are power-limited and supervised
with the exception of the reverse polarity loop. Loop supervision is the responsibility of the receiver.
Note: Cut Jumper JP5 on the control panel circuit board.
4XTM
Transmitter Module
(activated polarities shown)

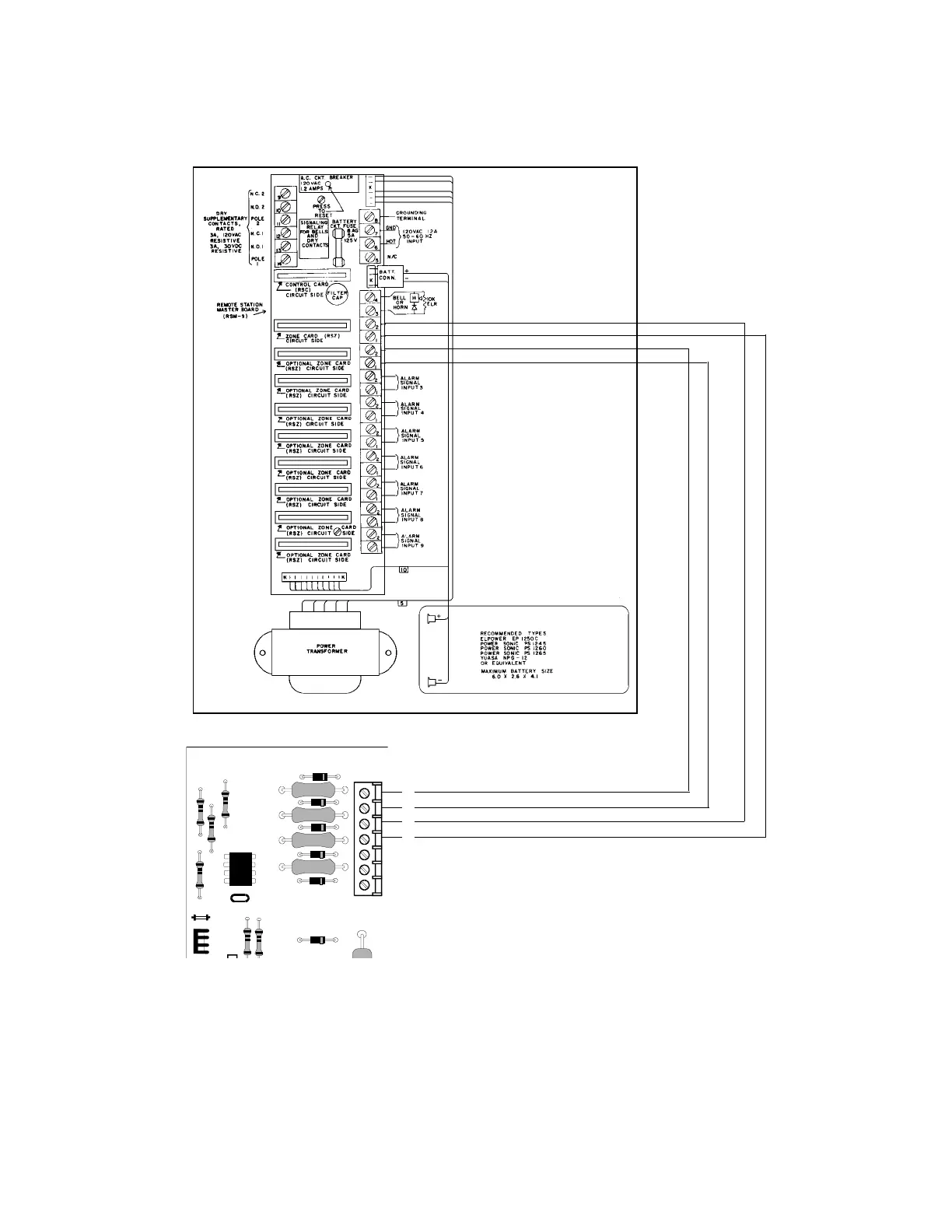

Figure B-4 NFPA 72-1993 Remote Station Fire Alarm System
